ATF cooler (vehicles with V8 4.2L FSI engine), removing and installing

WARNING: This page is about a different car, the 2010 Audi A8, 2009 Audi A8, 2008 Audi A8, 2007 Audi A8, and 2004 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

Fig 1: 3094 Hose Clamps

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Hose Clamps Up to 25 mm dia. 3094

Fig 2: Old Oil Collecting And Extracting Device V.A.G 1782

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Old oil collecting and extracting device V.A.G 1782

Removing

NOTE:

Before installing a replacement transmission, clean ATF cooler and ATF lines → ATF lines and ATF cooler, cleaning . If extremely dirty ATF flows out when blowing with compressed air, ATF cooler and ATF lines must also be flushed with clean ATF.
Rules of cleanliness for working on automatic transmissions → Rules of cleanliness for working on automatic transmissions .
Carefully clean all joints and adjacent areas before disconnecting.
When installing ATF lines, insert them by hand completely into transmission or ATF cooler as far as stop and then tighten.

Fig 3: Front Sound Insulation Fasteners

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove front sound insulation by loosening fasteners - 1 -.

NOTE:

Ignore - 2, 3, 4 -.

Fig 4: Secondary Air Injection (AIR) Air Guide Hose & Bolts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Free up secondary air injection (AIR) air guide hose - 1 - on ATF cooler bracket.
Remove bolts - arrows - and remove ATF cooler with hoses connected.
Position Used Oil Collecting and Extracting Device V.A.G 1782 below ATF cooler.

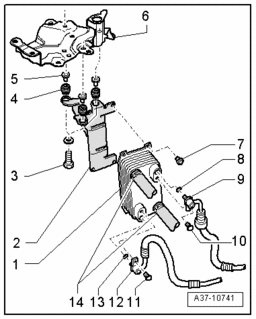

Fig 5: ATF Cooler Assembly

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolts - 10 and 11 - and remove ATF lines - 9 and 12 - from ATF cooler - 1 -.
Clamp off coolant hoses - 14 - with hose clamps Hose Clamps Up to 25 mm dia. 3094 and remove from ATF cooler.
Remove bolts - 7 - and remove ATF cooler.

Installing

Installation is in reverse order of removal, note the following:

Replace O-rings - 8 and 13 - on ATF lines to ATF cooler.
Check ATF level in planetary gearing → ATF level, checking and topping off .
Check coolant level →
- 19 - ENGINE - COOLING SYSTEM for 4.2 LITER V8 4V ENGINE MECHANICAL, ENGINE CODE(S): BVJ
- 19 - ENGINE - COOLING SYSTEM for 4.2 LITER V8 5V ENGINE MECHANICAL, ENGINE CODE(S): BFM
- 19 - ENGINE - COOLING SYSTEM for 5.2 LITER 10-CYL. 4V ENGINE MECHANICAL, ENGINE CODE(S): BSM
- 19 - COOLING SYSTEM for 6.0 LITER 12-CYL. 4V ENGINE MECHANICAL, ENGINE CODE(S): BSB
.

Torque specifications

Component	Nm
ATF cooler to bracket	9
ATF line to ATF cooler	5
ATF cooler bracket to body bracket	9
