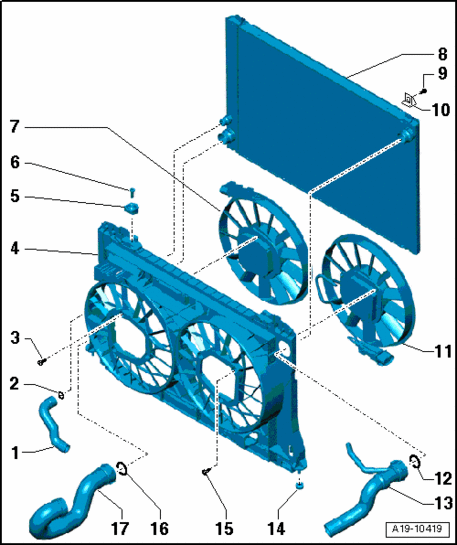

Radiator and coolant fan, assembly overview
WARNING: This page is about a different car, the 2010 Audi A8, 2009 Audi A8, 2008 Audi A8, and 2007 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.
1 - Coolant hose
- To pull off, disengage retaining clip
2 - O-ring
- Replace
3 - Bolt
- Replace
- 10 Nm
4 - Fan rib
- Removing and installing → Fan shroud, removing and installing
5 - Rubber buffer
- Disengage and remove using screwdriver
6 - Retaining pin
7 - Coolant Fan V7
- With Coolant Fan Control (FC) Control Module J293
- Removing and installing → Coolant fan, removing and installing
8 - Radiator
- Removing and installing → Radiator, removing and installing
- After replacing, replace entire amount of coolant
9 - Bolt
- 6 Nm
10 - Bracket for radiator
11 - Coolant Fan 2 V177
- With Coolant Fan Control (FC) Control Module 2 J671
- Removing and installing → Coolant fan, removing and installing
12 - O-ring
- Replace
13 - Coolant hose
- To pull off, disengage retaining clip
14 - Rubber bushing
15 - Bolt
- 10 Nm
16 - O-ring
- Replace
17 - Coolant hose
- To pull off, disengage retaining clip
