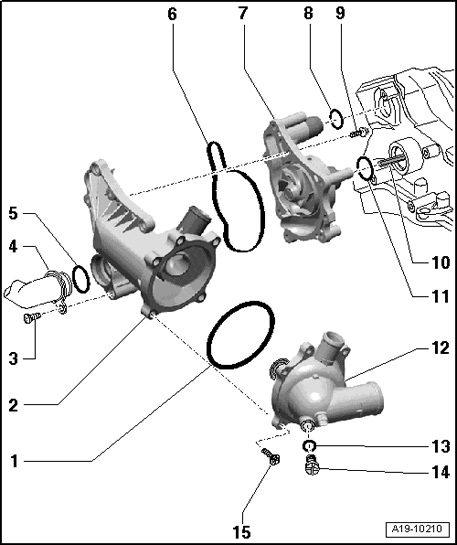

Coolant pump and coolant thermostat, assembly overview
WARNING: This page is about a different car, the 2010 Audi A8, 2009 Audi A8, 2008 Audi A8, and 2007 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.
1 - Seal
- Replace
2 - Coolant pump housing
- Removing and installing → Coolant pump, removing and installing
3 - Bolt
- Tightening torque → Coolant pipes, assembly overview
4 - Front coolant line
- Removing and installing → Front coolant line, removing and installing
5 - O-ring
- Replace
6 - Seal
- Replace
7 - Coolant pump
- Removing and installing → Coolant pump, removing and installing
8 - O-ring
- Replace
9 - Bolt
- 9 Nm
10 - Drive shaft for coolant pump
11 - O-ring
- Replace
12 - Map Controlled Engine Cooling Thermostat F265
- Removing and installing → Map Controlled Engine Cooling Thermostat F265, removing and installing
- Coolant thermostat opening data → Coolant thermostat opening data
13 - O-ring
- Replace
14 - Drain plug
- 4 Nm
15 - Bolt
- 9 Nm
