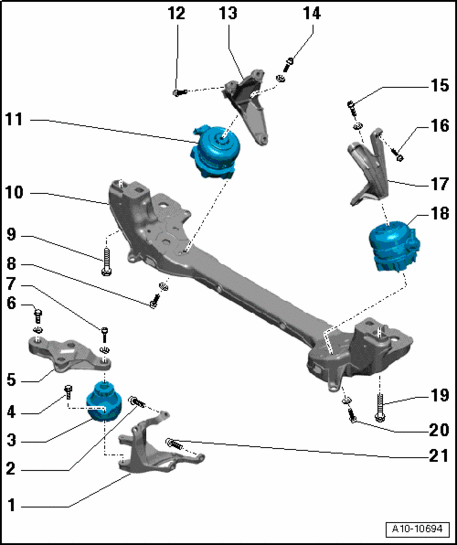

Assembly mount, overview
WARNING: This page is about a different car, the 2010 Audi A8, 2009 Audi A8, 2008 Audi A8, and 2007 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.
1 - Torque bracket
2 - Bolt
- 9 Nm
3 - Torque support bearing
- Removing and installing → Torque support bracket, removing and installing
4 - Bolt
- 23 Nm
5 - Torque support bracket
6 - Bolt
- 40 Nm
7 - Bolt
- 40 Nm
8 - Bolt
- 23 Nm
9 - Bolt
- 68 Nm
10 - Engine carrier
11 - Engine mount, right
- Removing and installing → Left and right engine mounts, removing and installing
12 - Bolt
- 40 Nm
13 - Right engine support
- Removing and installing → Left and right engine mounts, removing and installing
14 - Bolt
- 40 Nm
15 - Bolt
- 40 Nm
16 - Bolt
- 40 Nm
17 - Left engine support
- Removing and installing → Left and right engine mounts, removing and installing
18 - Engine mount, left
- Removing and installing → Left and right engine mounts, removing and installing
19 - Bolt
- 68 Nm
20 - Bolt
- 23 Nm
21 - Bolt
- 23 Nm
