Torque support bracket, removing and installing

WARNING: This page is about a different car, the 2010 Audi A8, 2009 Audi A8, 2008 Audi A8, and 2007 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

Drill
Stepped quick-helix drill (dia. 24 mm)

Removing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove front sound insulation by loosening fasteners - 1 -.

NOTE:

Ignore items - 2, 3, 4 -.

Remove both front wheels.
Remove front part of left and right front wheel housing liner → 66 - EXTERIOR EQUIPMENT .
Remove front bumper cover → 63 - BUMPERS .

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove lower air guide hose from lower part of air filter housing - arrow -.
Remove right headlight → 94 - LIGHTS, SWITCHES - EXTERIOR .

Courtesy of VOLKSWAGEN UNITED STATES, INC.

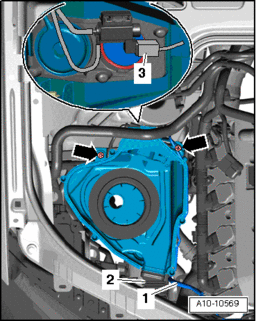

Disconnect electrical harness connector - 3 - at Mass Air Flow (MAF) Sensor G70.
Disconnect air guide hose - 2 - from air guide pipe.
Disconnect air duct - 1 - from upper part of air filter housing.
Remove bolts - arrows - and remove upper part of air filter housing.

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Disconnect vacuum hose - 1 - and remove air duct - 2 -.
Remove bolts - arrows -.
Rotate lower part of air filter housing and disconnect electrical connector - 3 - on Intake Air Switch-Over valve N335.
Remove lower part of air filter housing.

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Depress locking mechanisms - arrows - and remove air guide at right front from lock carrier.

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolts - arrows -.
Remove air guide at right rear from lock carrier.

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Mark holes according to dimensions - a and b - at lock carrier as shown.

Dimension - a - = 40 mm.
Dimension - b - = 55 mm

Make a bore dia. 24 mm.

NOTE:

The bore must be pre-bored and then drilled to dia. 24 mm using stepped quick-helix drill.

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolts - 1 and 2 - on torque support bracket.
Loosen bolt - 3 - several turns.

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolt - arrow - at torque support mount.

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolts - arrows - and remove torque support mount.

Installing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Turn adjustment ring - 1 - on torque support bracket clockwise - arrow - as far as stop.

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Tighten bolts - 1 and 3 - on torque support bracket.

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Rotate adjustment ring - 1 - counter-clockwise - arrow - by hand until it comes into contact with torque support bracket.
Then, turn adjustment ring one rotation clockwise again.

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Tighten bolt - arrow - on torque support mount.

The rest of installation is in reverse order of removal, note the following.

Install headlamps → 94 - LIGHTS, SWITCHES - EXTERIOR .
Install the front bumper cover → 63 - BUMPERS .
Install air filter housing → 24 - MULTIPORT FUEL INJECTION (MFI) .
Check headlight adjustment 404.
