Secondary air system, overview: Overview

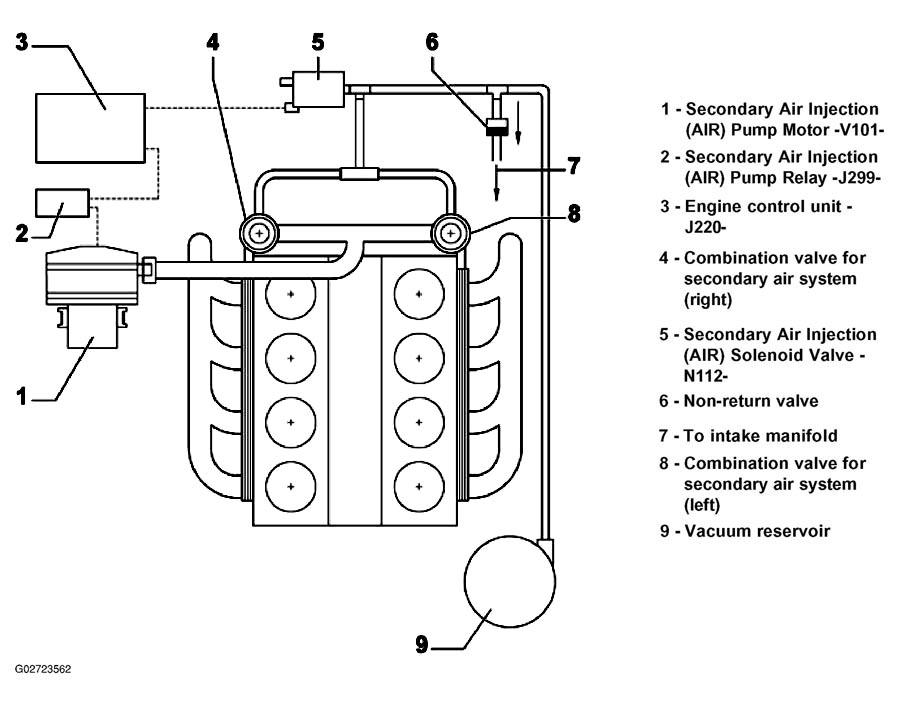

The following list pertains to Fig 1.
- Secondary Air Injection (AIR) Pump Motor -V101-
- Location, see LOCATION OF SECONDARY AIR INJECTION (AIR) PUMP MOTOR -V101-
- Removing and installing, see SECONDARY AIR INJECTION (AIR) PUMP MOTOR -V101-, REMOVING AND INSTALLING
- Secondary Air Injection (AIR) Pump Relay -J299-
- Engine control unit - J220-
- Combination valve for secondary air system (right)
- Location, see COMBINATION VALVE FOR SECONDARY AIR SYSTEM
- Testing, see COMBINATION VALVE FOR SECONDARY AIR SYSTEM, CHECKING FUNCTION, CHECKING FOR LEAKS
- Removing and installing, see COMBINATION VALVE (RIGHT) FOR SECONDARY AIR SYSTEM, REMOVING AND INSTALLING
- Secondary Air Injection (AIR) Solenoid Valve - N112-
- Non-return valve
- Installation position as shown in illustration. Arrow indicates direction of flow
- To intake manifold
- Combination valve for secondary air system (left)
- Location, see COMBINATION VALVE FOR SECONDARY AIR SYSTEM
- Testing, see COMBINATION VALVE FOR SECONDARY AIR SYSTEM, CHECKING FUNCTION, CHECKING FOR LEAKS
- Removing and installing, see COMBINATION VALVE (LEFT) FOR SECONDARY AIR SYSTEM, REMOVING AND INSTALLING
- Vacuum reservoir
- Installation location: in front left wheel housing behind wheel housing liner
