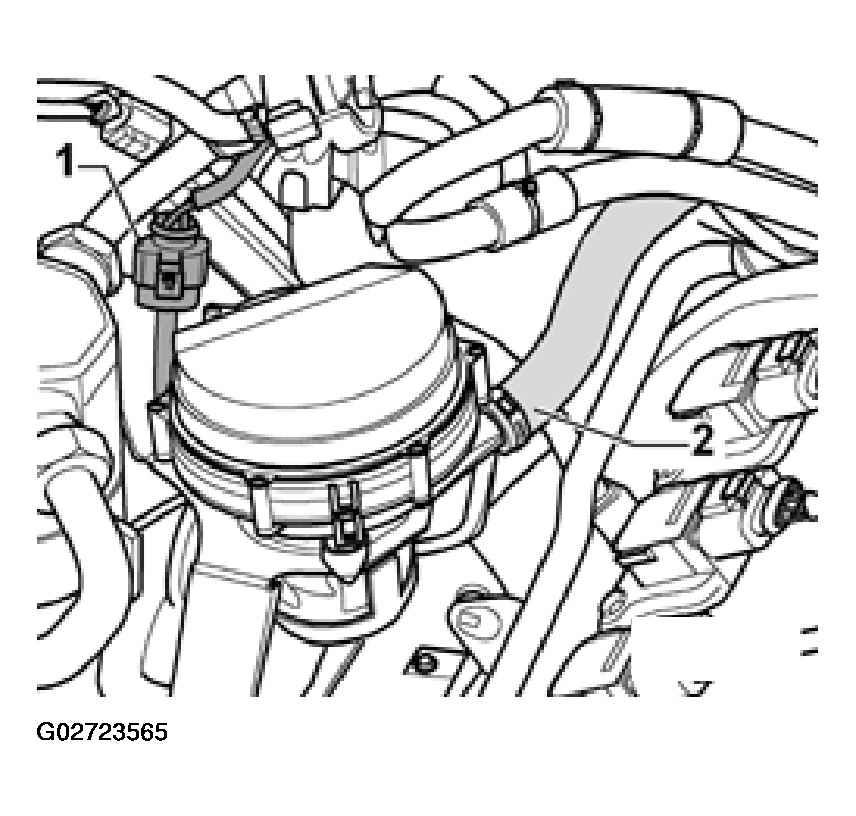

Location of Secondary Air Injection (AIR) Pump Motor -V101-

  1. Electrical connector for Secondary Air Injection (AIR) Pump Motor -V101-
  2. Air hose to combination valves for secondary air system.
    3. Fig 1: Locating Secondary Air Injection (Air) Pump Motor
    G02723565Courtesy of AUDI OF AMERICA, INC.
