Exhaust System, Emission Controls
>>
Secondary air system, overview
>>
Location of Secondary Air Injection (ARI) Solenoid Valve -N112-
Location of Secondary Air Injection (ARI) Solenoid Valve -N112-

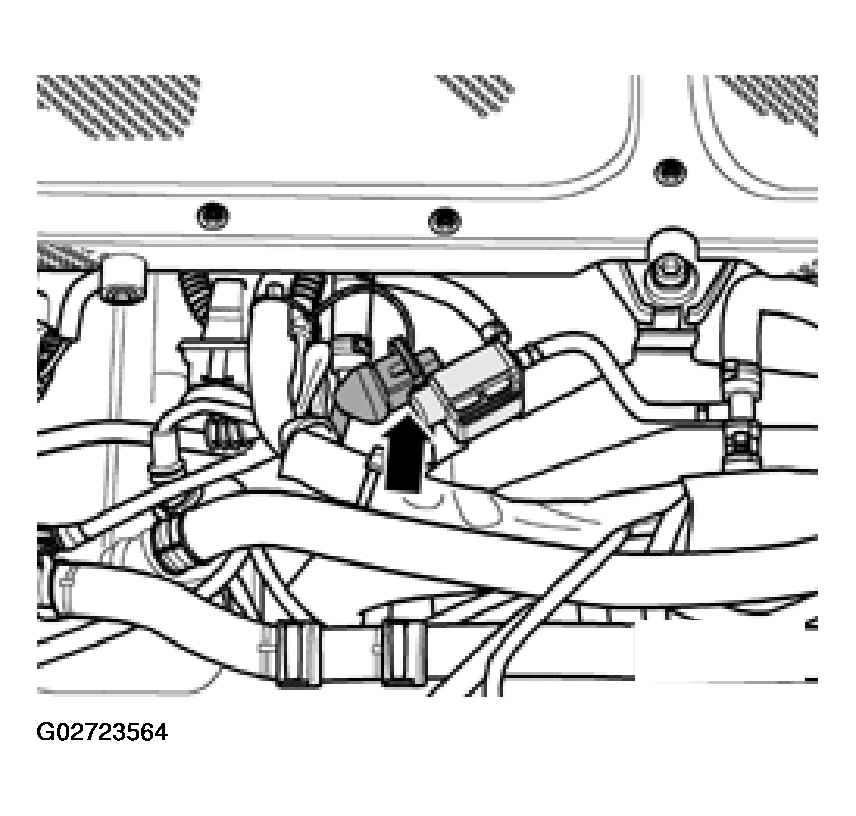

At right front of intake manifold (arrow)
Fig 1: Locating Secondary Air Injection (AIR) Solenoid Valve
Courtesy of AUDI OF AMERICA, INC.
Courtesy of AUDI OF AMERICA, INC.
