Wheels and tires: Overview: Notes
NOTE:

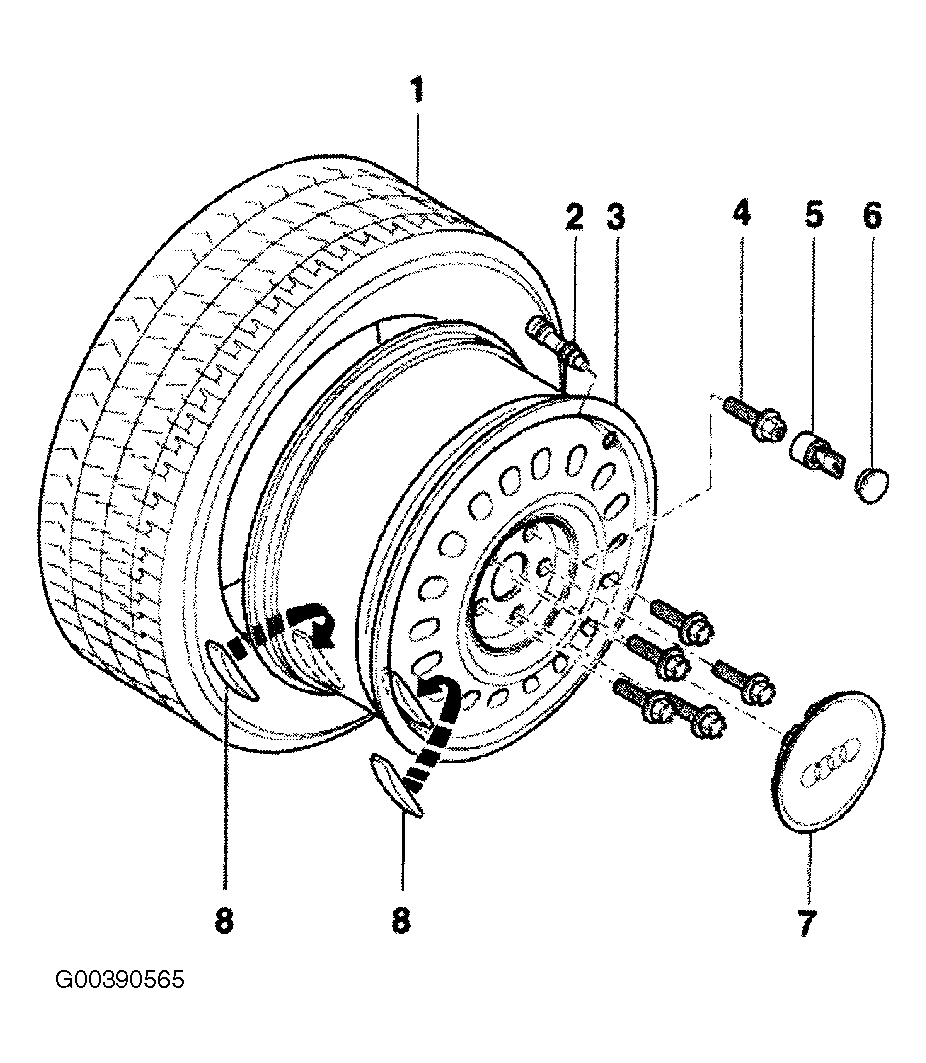

The following list refers to items in Fig 1
.
- Tires
- Valve
- Always replace
- Use only correct valve stems as specified in Parts List
- Rim
- Wheel bolt/lockable wheel bolt, 120 Nm (89 ft lb)
- Anti-theft wheel bolt. See ANTI-THEFT LUG BOLT .
- M14 x 1.5 x 27.5 mm
Various versions, see LUG BOLT VERSIONS .
- Lock cylinder
- Attach to corresponding lug bolt and engage lock
- Trim cap
- Attach to lock cylinder
- Trim cap
- Adhesive balancing weights
- Maximum permissible weight: 60 g (2.1 oz.) per rim flange
- Remove dirt and grease from wheel at bonding point
- Pull off protective sheet.
- Apply adhesive balancing weights to rim surface in the area provided
- Balancing. See BALANCING WHEELS ON THE VEHICLE . Wheels/tires wheel sensor
- Maximum permissible weight: 60 g (2.1 oz.) per rim flange
