Lug bolt versions

Lug bolt -A- one part

Lug bolt -B- two part

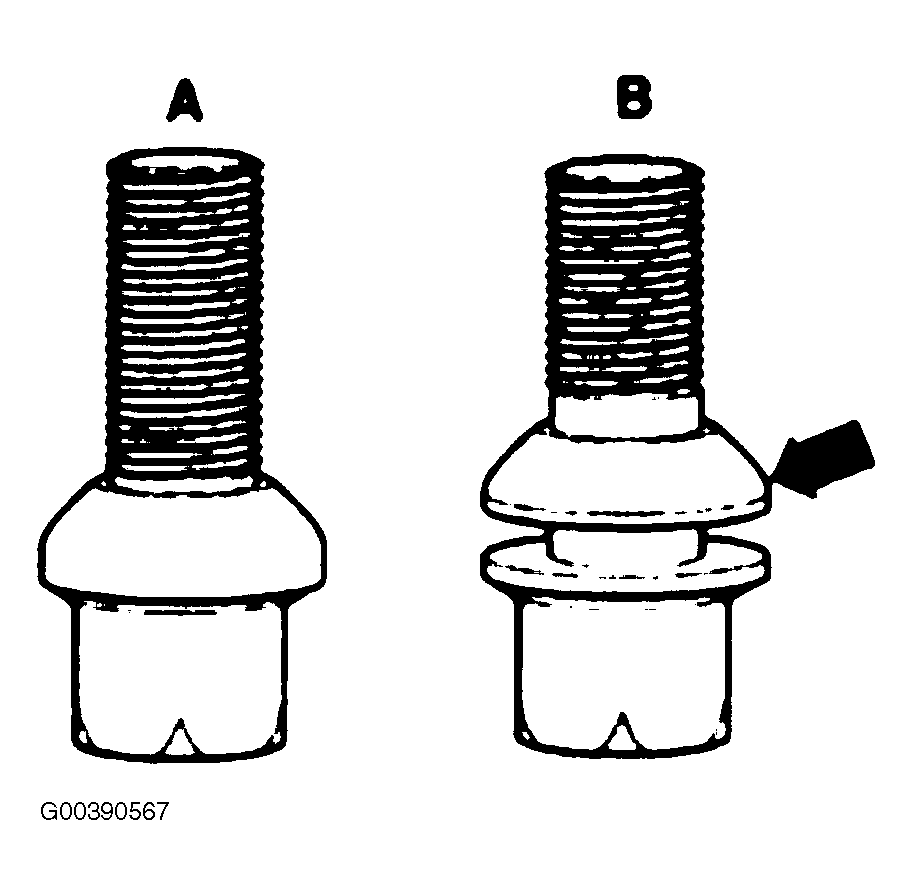

Fig 1: Identifying Lug Bolt Versions

G00390567

Courtesy of AUDI OF AMERICA, INC.
