Hydraulic unit and brake lines: Notes
Brake line tightening torque: 15 Nm.

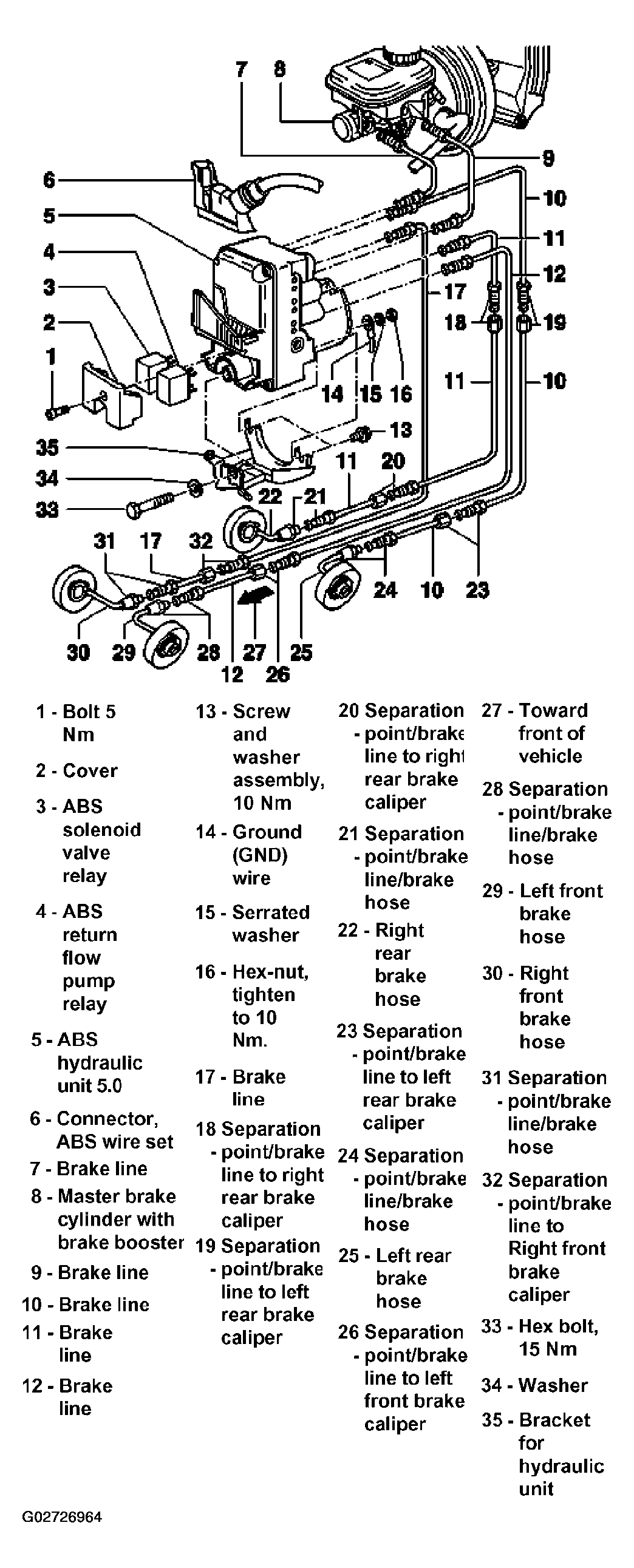

The following list pertains to Fig 1 .
- Bolt 5 Nm
- Cover
- ABS solenoid valve relay
- ABS return flow pump relay
- ABS hydraulic unit 5.0
- Different versions, see BRAKE LINE CONNECTIONS AT THE HYDRAULIC UNIT, ABS 5.0 and BRAKE LINE CONNECTIONS AT THE HYDRAULIC UNIT, ABS 5.0
- No repair work is permitted at the hydraulic unit except for replacement of both relays. Do not remove screws.
- The hydraulic unit is prevented before delivery as a replacement part.
See Caution before beginning repairs on electrical system. See ANTI-LOCK BRAKE SYSTEM (ABS) BOSCH 5.0 .
- Removing and installing the hydraulic unit
- Disconnect Ground (GND) strap from battery
- Remove front half of front right
wheelhousing liner.
- Disconnect brake lines and immediately seal connections with plugs
- Bolt a new hydraulic unit into bracket - 35 -.
- Brake lines must be connected according to the marks on the hydraulic unit.
- Hydraulic unit/line connections/rear side, see BRAKE LINE CONNECTIONS AT THE HYDRAULIC UNIT, ABS 5.0
and BRAKE LINE CONNECTIONS AT THE HYDRAULIC UNIT, ABS 5.0
- Bleed brake system. See BLEEDING BRAKE SYSTEM .
- Carry out On Board Diagnostic (OBD). See ON BOARD DIAGNOSTIC (OBD) .
- Connector, ABS wire set
- Disengage and remove
- The connector is part of the ABS wire set. Different versions are coded according to component.
- Brake line
- Master brake cylinder/secondary piston circuit to hydraulic unit
- Different versions, see BRAKE LINE CONNECTIONS AT THE HYDRAULIC UNIT, ABS 5.0 and BRAKE LINE CONNECTIONS AT THE HYDRAULIC UNIT, ABS 5.0
- Master brake cylinder with brake booster
- Brake line
- Master brake cylinder/primary piston circuit to hydraulic control unit
- Different versions, see BRAKE LINE CONNECTIONS AT THE HYDRAULIC UNIT, ABS 5.0 and BRAKE LINE CONNECTIONS AT THE HYDRAULIC UNIT, ABS 5.0
- Brake line
- Hydraulic control unit to left rear brake caliper
- Brake line
- Hydraulic control unit to right rear brake caliper
- Brake line
- Hydraulic control unit to left front brake caliper
- Screw and washer assembly, 10 Nm
- Ground (GND) wire
- Check for proper contact
- Serrated washer
- Hex-nut, tighten to 10 Nm.
- Brake line
- Hydraulic control unit to right front brake caliper
- Separation point/brake line to right rear brake caliper
- Location: Wheel housing - left front longmember, see BRAKE LINE SEPARATION POINTS
- Separation point/brake line to left rear brake caliper
- Location: Wheel housing - left front longmember, see BRAKE LINE SEPARATION POINTS
- Separation point/brake line to right rear brake caliper
- Location: Wheel housing - left front longmember, see BRAKE LINE SEPARATION POINTS
- Separation point/brake line/brake hose
- Right rear
- Right rear brake hose
- Separation point/brake line to left rear brake caliper
- Location: Wheel housing - left front longmember, see BRAKE LINE SEPARATION POINTS
- Separation point/brake line/brake hose
- Left rear
- Left rear brake hose
- Separation point/brake line to left front brake caliper
- Location: Wheel housing - left front longmember. See BRAKE LINE SEPARATION POINTS .
- Toward front of vehicle
- Separation point/brake line/brake hose
- Left front
- Left front brake hose
- Right front brake hose
- Separation point/brake line/brake hose
- Right front
- Separation point/brake line to Right front brake caliper
- Location: Wheel housing - front right longmember, see SEPARATION POINT OF BRAKE LINE, HYDRAULIC UNIT - RIGHT FRONT BRAKE CALIPER
- Hex bolt, 15 Nm
- Washer
- Bracket for hydraulic unit
- Insert hydraulic unit and secure
- Removing and installing bracket, see HYDRAULIC UNIT BRACKET, REMOVING AND INSTALLING
