Brake line separation points

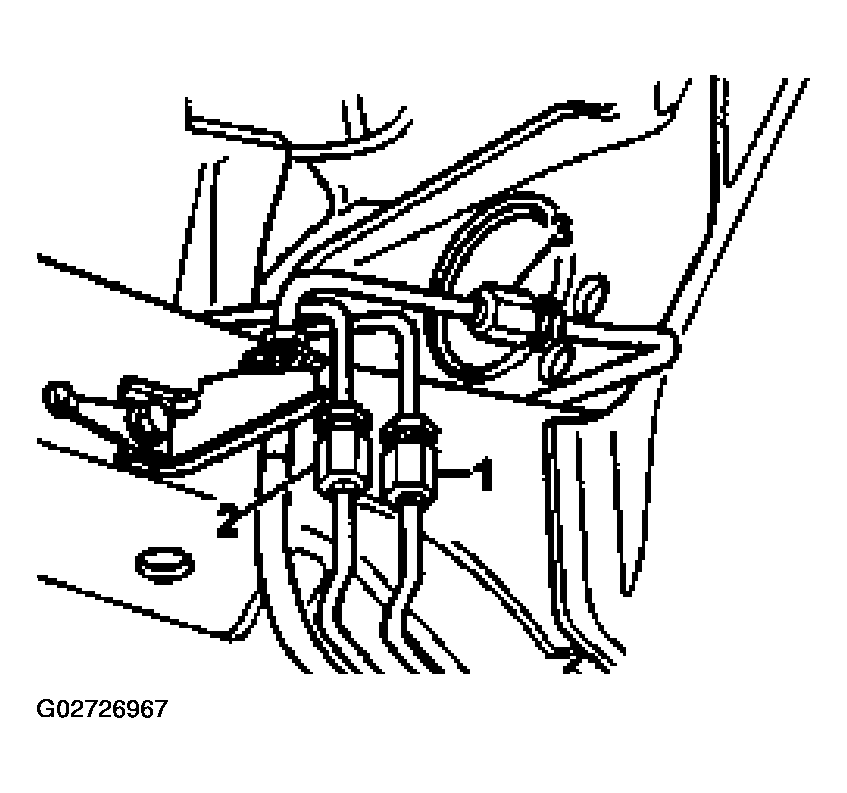

The following list pertains to Fig 1 .

  1. Hydraulic control unit - right rear brake caliper
  2. Hydraulic control unit - left rear brake caliper
  3. Hydraulic unit - left front brake caliper
    4. Fig 1: Identifying Brake Line Separation Points - Bosch 5.0
    G02726967Courtesy of AUDI OF AMERICA, INC.


The following list pertains to Fig 1 .

  1. Hydraulic control unit - right rear brake caliper
  2. Hydraulic control unit - left rear brake caliper
    3. Fig 1: Identifying Brake Line Separation Points - Bosch 5.0
    G02726968Courtesy of AUDI OF AMERICA, INC.
