Connecting VAG1598/19 test box to connector of A/C control head -E87-
- Switch ignition on.
- Open lower instrument panel air vents on left and right and adjust air flow to these instrument panel air vents by operating the buttons on -E87-.
- Switch ignition off.
- Remove side trim panel of center console on passenger side. See INTERIOR TRIM .
- Remove radio. See RADIO SYSTEM .
- Unplug connectors from -E87- and connect VAG1598/19 test box to the wiring harness.
NOTE:

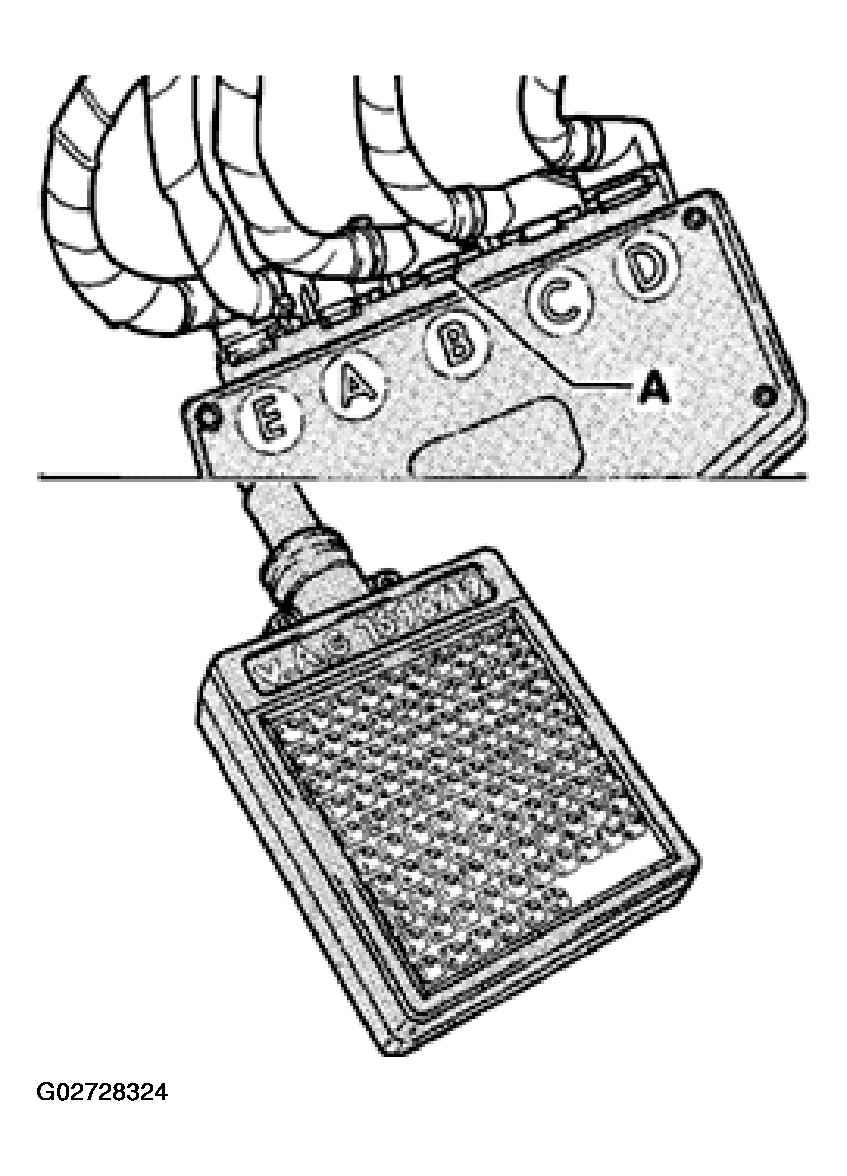

- Press back lock -A- in order to unplug the connectors.
- The assignment of the terminals in the test is identical to the designations in the wiring diagram.
NOTE:
Electrical test changes for model year 2000 vehicles. See ELECTRICAL TEST CHANGES FOR MODEL YEAR 2000 AND UP VEHICLES
.
LIST OF SPECIFIED ELECTRICAL TESTS
| Test step | Component tested | Testing |
|---|---|---|
| 1 | Temperature sensors (-G17-, -G56-, -G89-, -G150-, -G151-) | See TEST STEP 1-TEMPERATURE SENSORS |
| 2 | Position sensors for center air vent and switch for left/right center air vent (-G142-, -F183-, -F184-) | See TEST STEP 2-CENTER VENT POSITION SENSOR -G142- . |
| 3 | Fresh air blower with relevant control module (-V2-, -J126-) | See TEST STEP 3-FRESH AIR BLOWER -V2- AND CONTROL MODULE FOR FRESH AIR BLOWER -J126- . |
| 4 | Coolant pump and relevant valves (V50, -N175-, -N176-) | See TEST STEP 4-COOLANT PUMP -V50- AND RELATED VALVES |
| 5 | Servo motors in plenum and relevant position sensors (-V71-/-G113-, -V113-/-G143-, -V114-/-G144-) | See TEST STEP 5-MOTORS IN ENGINE COMPARTMENT . |
| 6 | Servo motors in passenger compartment and relevant position sensors (-V68-/-G92-, -V102-/-G138-, -V107-/-G137-, -V108-/-G139-, -V109-/-G140-, -V110-/-G136-, -V111-/-G137-, -V112-/-G141-) | See TEST STEP 6-MOTORS IN PASSENGER COMPARTMENT |
| 7 | System operated switches (-F73-, -F118-) | See TEST STEP 7-SENSOR FOR COMPRESSOR SPEED, LOW PRESSURE AND HIGH PRESSURE SWITCHES |
| 7.5 | System operated switches (-F118-, -F129-) | See TEST STEP 7-SENSOR FOR COMPRESSOR SPEED, LOW PRESSURE AND HIGH PRESSURE SWITCHES . |
| 7.6 | System operated switch (-F73-) | See Figure . |
| 8 | Relay for A/C clutch -J44-Actuation for coolant fan (step 1) | See TEST STEP 8-RELAY FOR A/C CLUTCH, ACTUATION OF FAN . |
| 9 | Signal from switch for washer/wiper system (for windshield) | See TEST STEP 9 - SIGNAL FOR WASHER/WIPER SYSTEM . |
