Test step 9 - Signal for washer/wiper system
NOTE:
Applies only to vehicles with sensor for air quality -G238-.

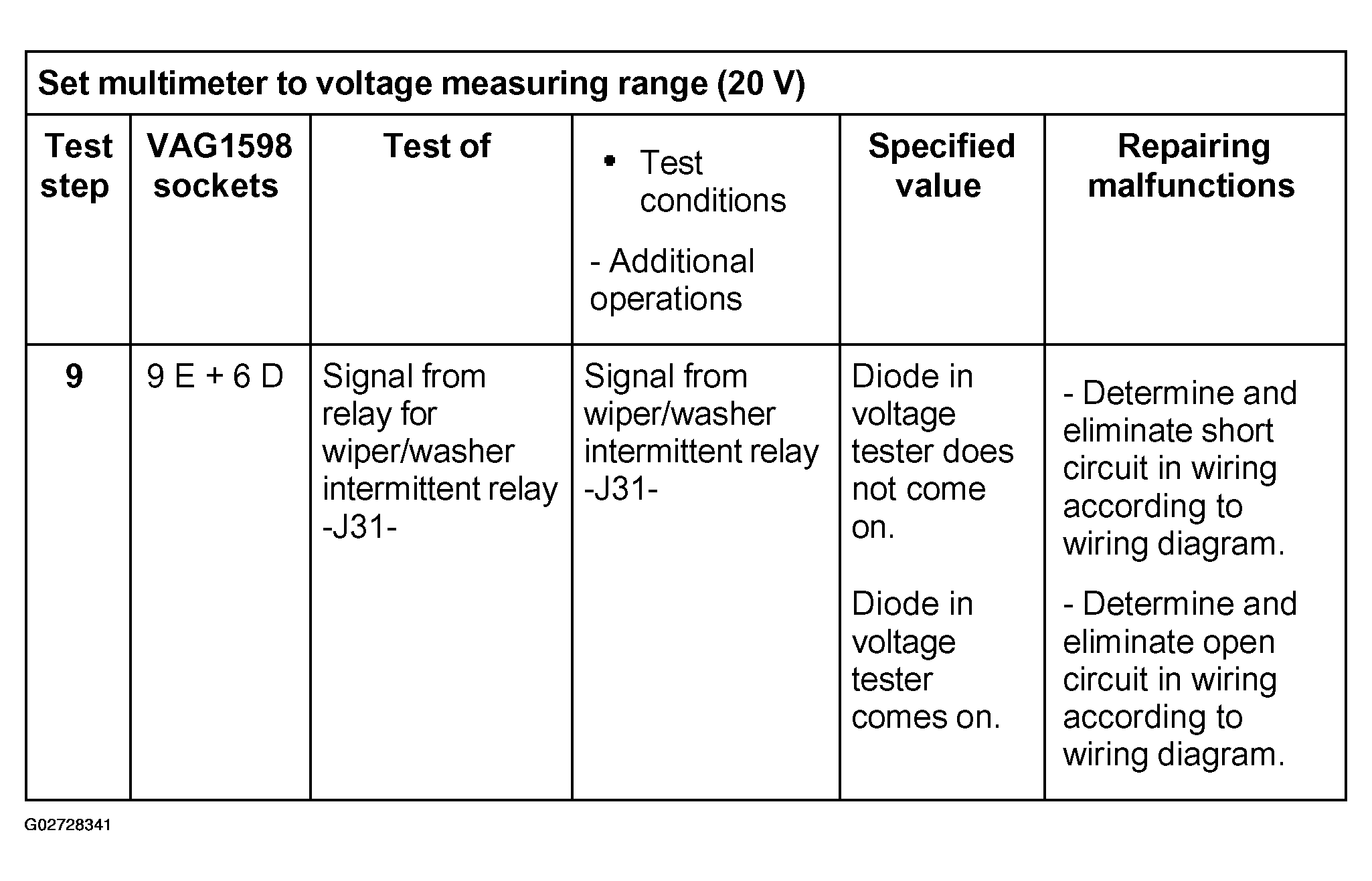

Fig 1: Test Step 9 - Signal For Washer/Wiper System<
Courtesy of AUDI OF AMERICA, INC.
