Test step 2 - Center vent position sensor -G142-

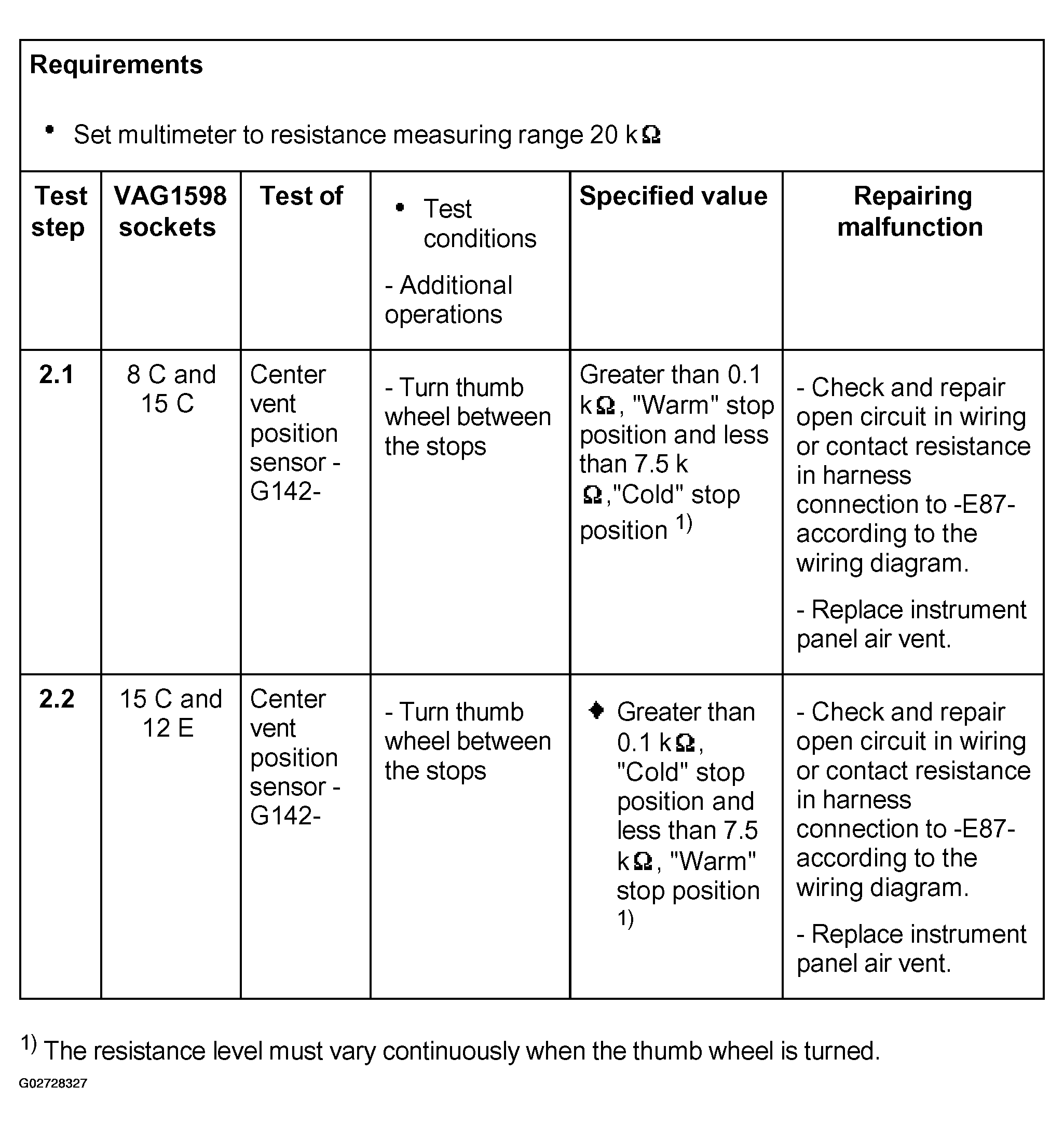

Fig 1: Test Step 2 - Center Vent Position Sensor -G142- (1 Of 2)

Courtesy of AUDI OF AMERICA, INC.

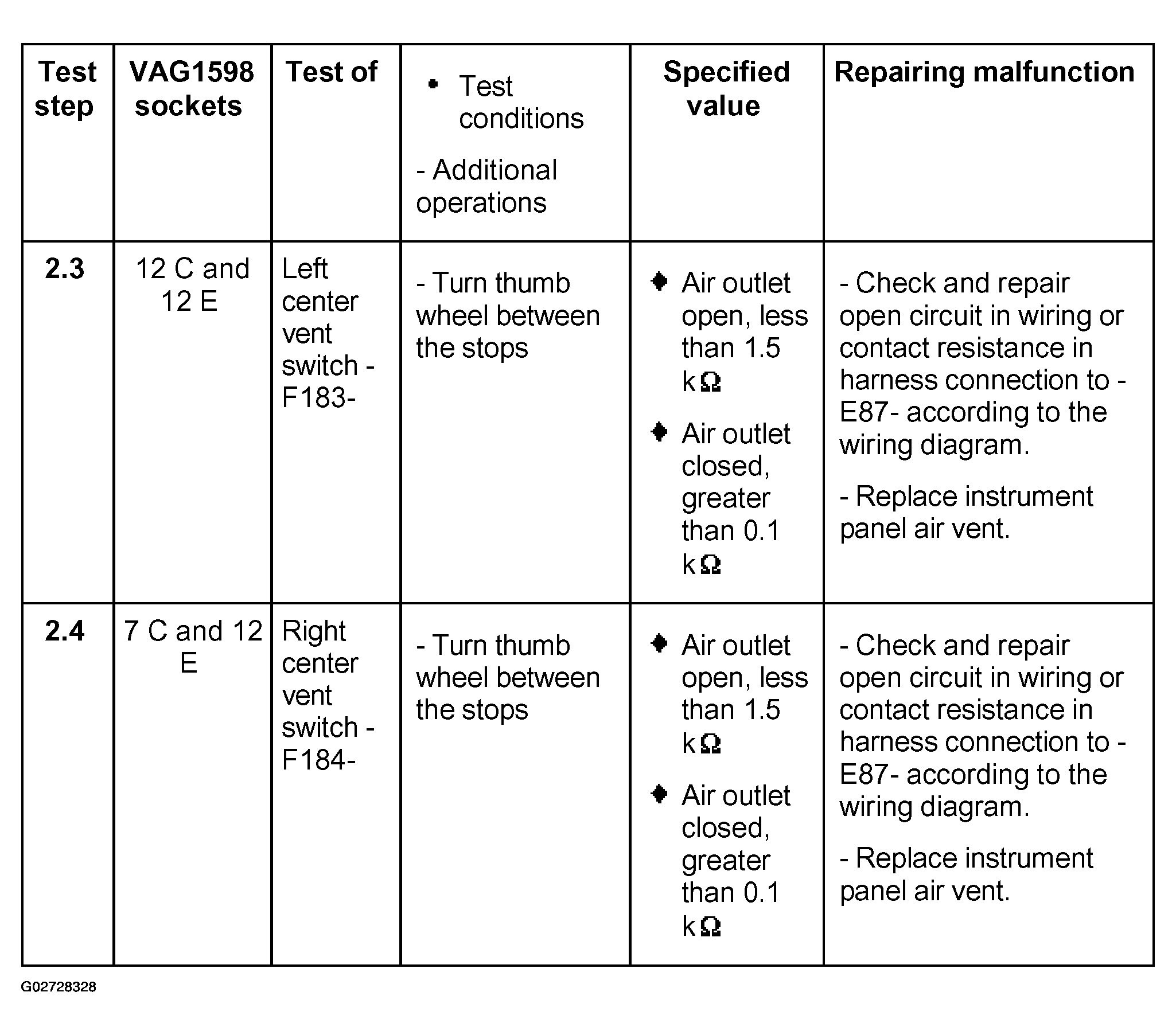

Fig 2: Test Step 2 - Center Vent Position Sensor -G142- (2 Of 2)

Courtesy of AUDI OF AMERICA, INC.
