Front window, removing and installing: Notes

NOTE: The following list refers to Fig 1 .

Bolt
- 2 Nm (18 in. lb)
Washer
Front window
- Removing and installing. See REMOVING AND INSTALLING FRONT WINDOW .
- Adjusting. See ADJUSTING WINDOW .
Centering sleeve
Guide pin
- Removing and installing. See REMOVING AND INSTALLING GUIDE PIN .
Cap
Door component carrier
- Removing and installing. See item 3 in DOOR SHELL AND DOOR COMPONENT CARRIER, REMOVING AND INSTALLING .
Buffer plugs
- After installing window glass into guide of door component carrier
Locking plate
Backing plate
Damper washer

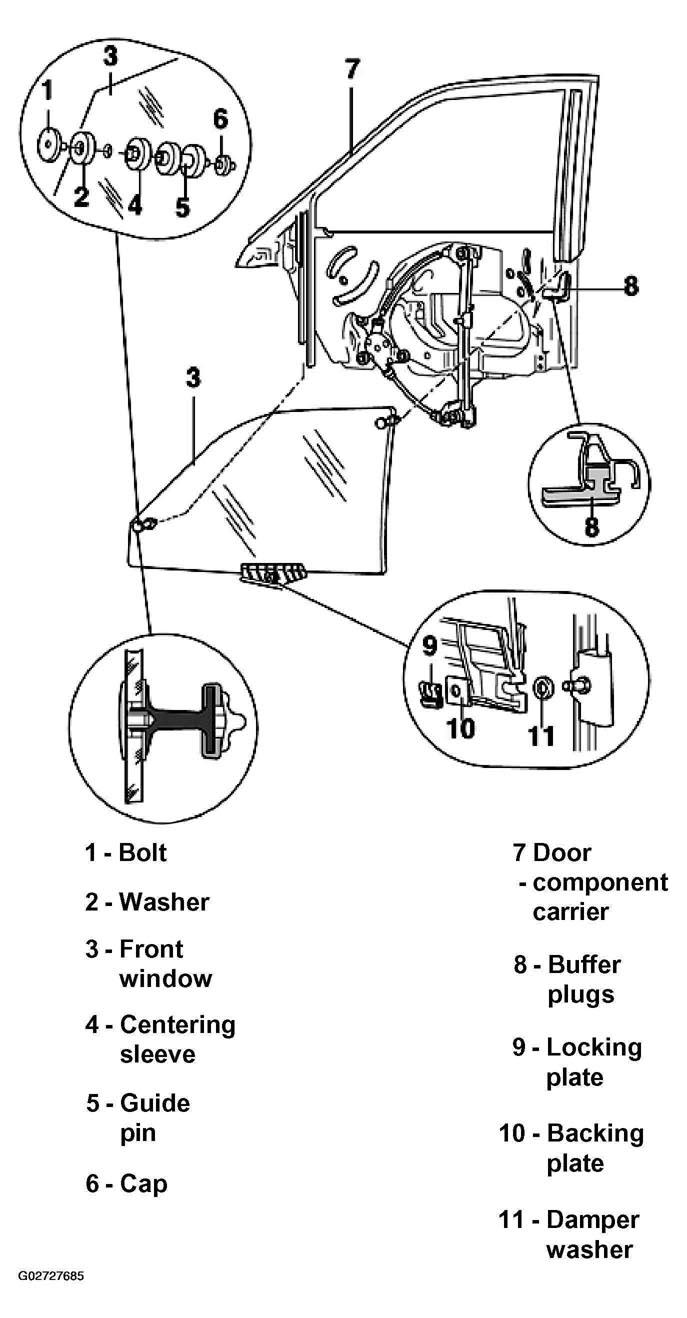

Fig 1: Identifying Front Window Components

Courtesy of AUDI OF AMERICA, INC.
