Adjusting window

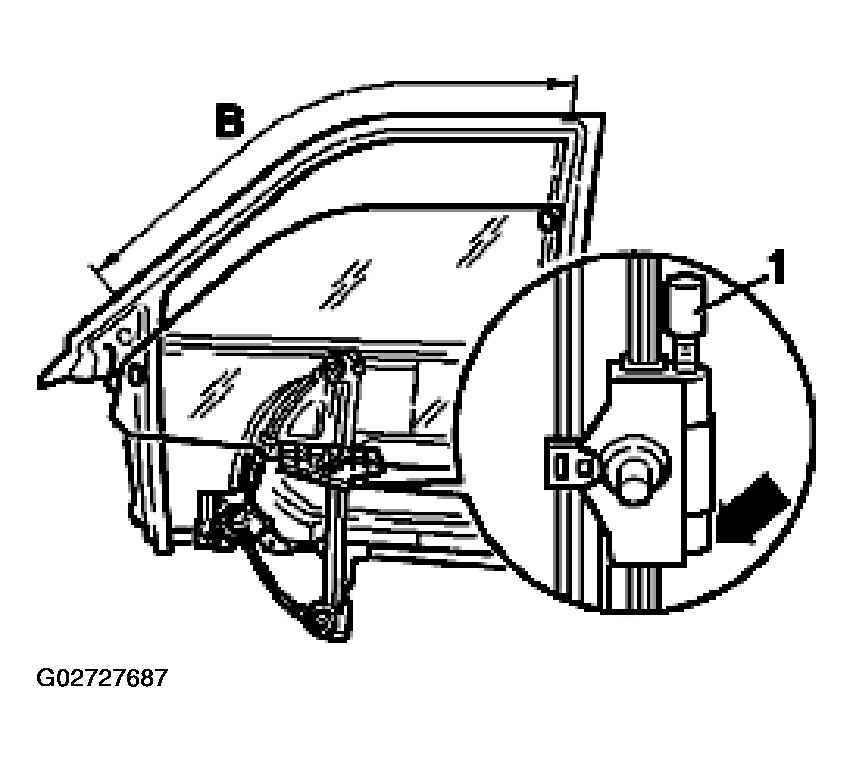

Adjust upper impact of window regulator -1- via external Torx(R) E6 (arrow).

Fig 1: Adjusting Upper Impact Of Window Regulator

G02727687

Courtesy of AUDI OF AMERICA, INC.

Adjust door window upper edge to interior seal lip. See ADJUSTING WINDOW .
B- Area of door window at interior seal lip

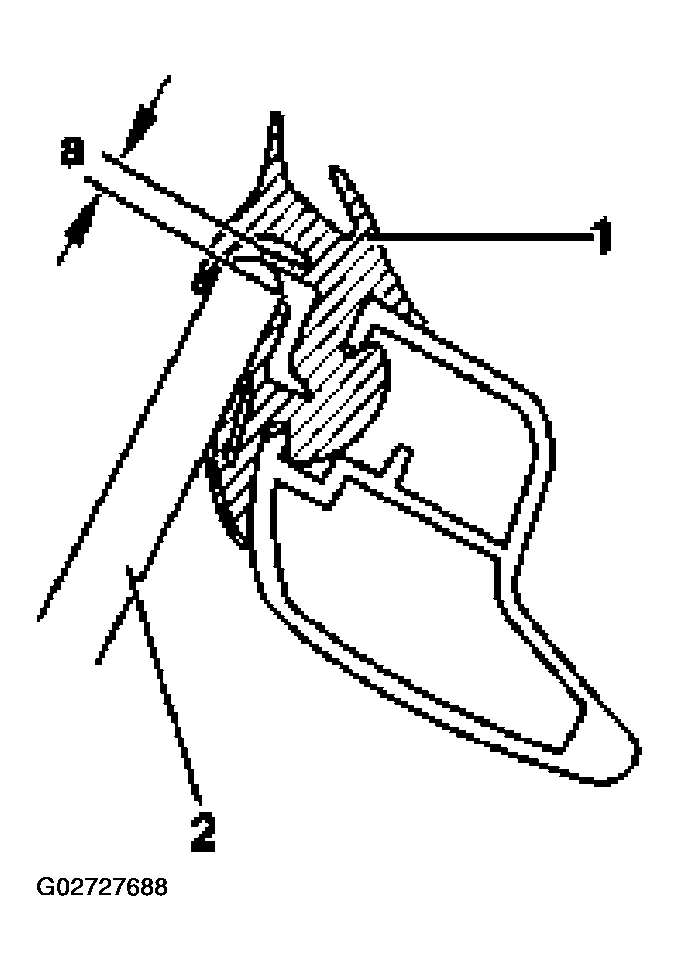

Adjust door window -2- with door closed.

Fig 1: Adjusting Door Window With Door Closed

G02727688

Courtesy of AUDI OF AMERICA, INC.

Adjust upper impact of window regulator so interior seal lip presses against door window seal -1- at upper window edge with pressure in entire area -B-. See ADJUSTING WINDOW .
Dimension - a- = at least 1.0 mm

If door window is adjusted too high, greater force is required to shut door.

NOTE: A good seal is only guaranteed if the seal presses against the door window with at least 1.0 mm preload.
