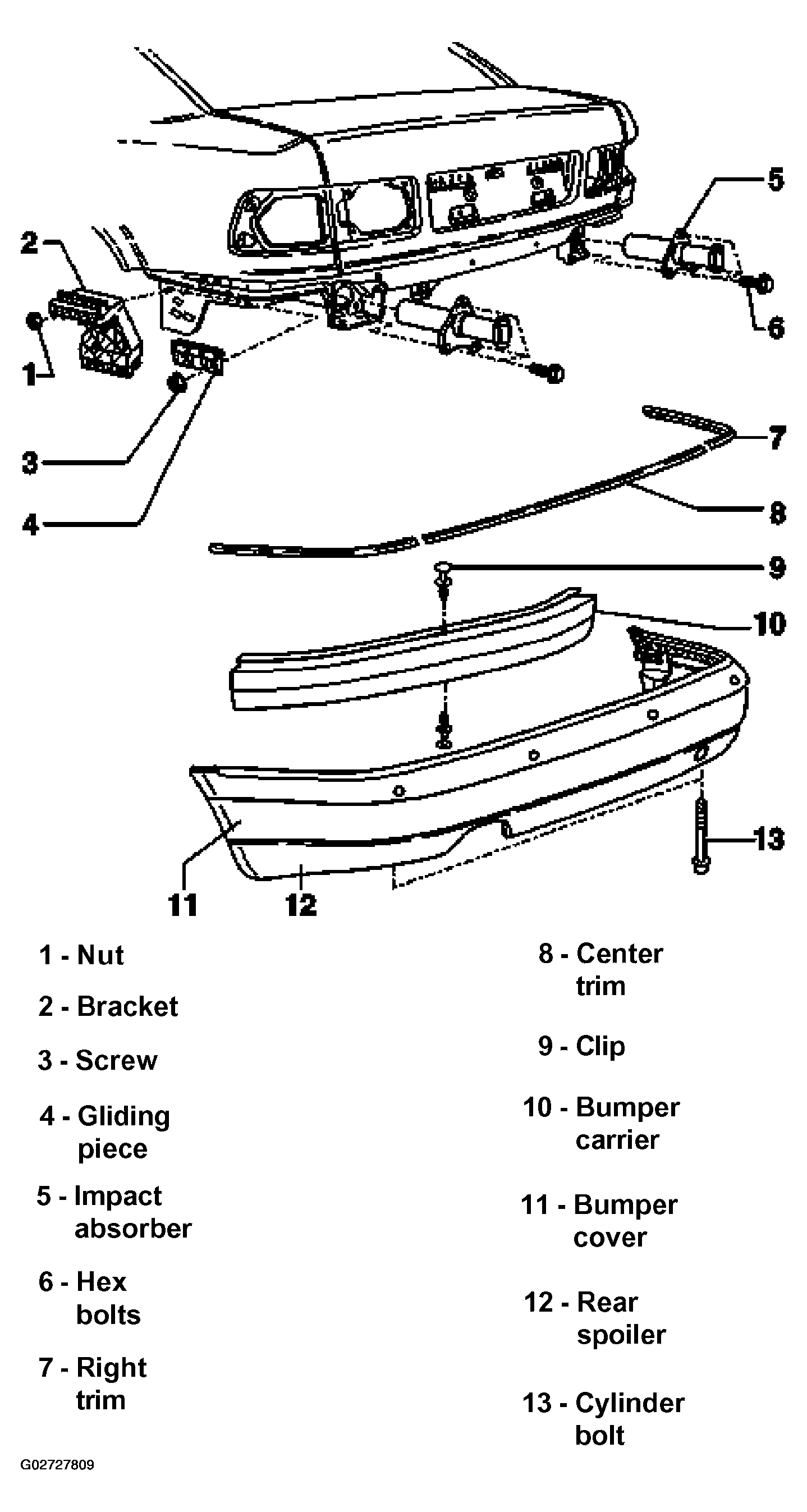

Rear bumper, assembly overview: Notes
NOTE:
The following list refers to Fig 1.
- Nut
- 2 pieces
- Bracket
- Adjusting. See REAR BUMPER, ADJUSTING .
- Screw
- 12 Nm
- 2 pieces
- Unscrew inside luggage compartment
- Remove grommet
- Bolt at right is not accessible until battery is removed
- Gliding piece
- Removing. See REMOVING GUIDE .
- Impact absorber
Removing:
- Remove bumper.
- Remove hex bolt -6- and pull impact absorber out of long member.
- Checking. See IMPACT ABSORBERS, TESTING .
- Hex bolts
- 23 Nm
- Right trim
- Remove and install as done for front trim. See FRONT TRIM, REMOVING .
- Center trim
- Remove left and right trim before removing
- Clip
- To remove, unclip bumper carrier. See CLIP FOR BUMPER COVER .
- Bumper carrier
Removing:
- Remove bumper.
- Unclip expanding clips.
- Adjusting. See REAR BUMPER, ADJUSTING .
- Bumper cover
- Can be replaced individually
- Rear spoiler
- Can be replaced individually
- Removing and installing. See TRIM AND REAR SPOILER, ASSEMBLY OVERVIEW .
- Cylinder bolt
- 65 Nm
