Removing guide

Bumper removed

Remove hex nuts -1- and take off guide.
When installing, tighten hex nuts to 2 Nm.

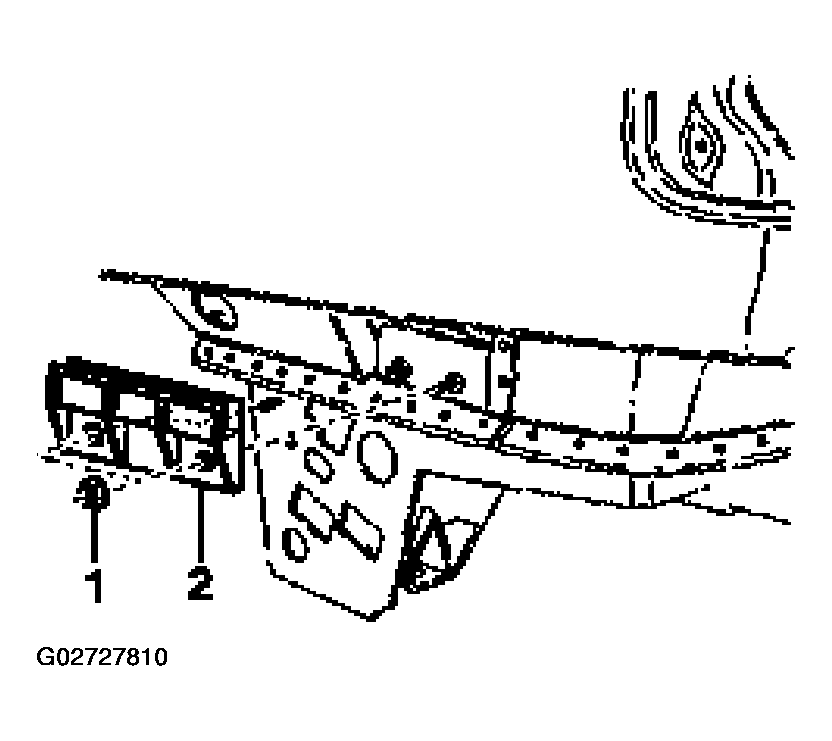

Fig 1: Removing/Installing Guide (M.Y. 1999 & Up)

G02727810

Courtesy of AUDI OF AMERICA, INC.
