Rear parking aid sensor, removing and installing: Removing

WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Location: In bumper -arrows-.

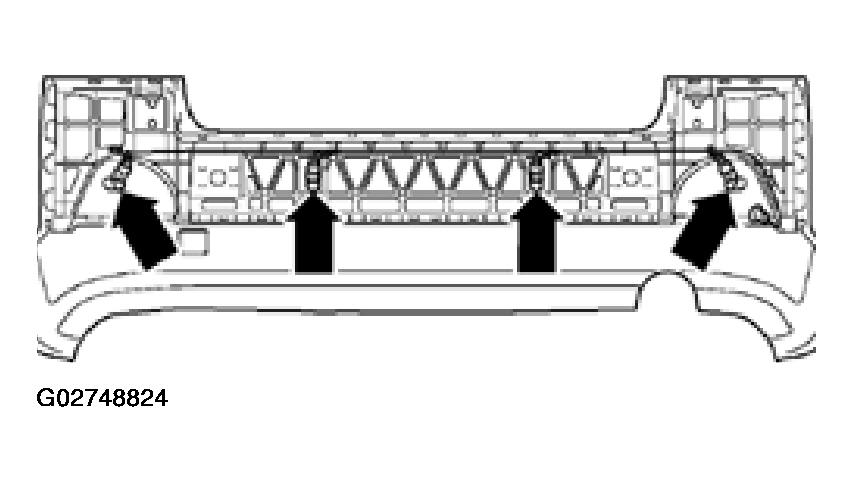

Fig 1: Identifying Parking Aid Sensors In Rear Bumper

Courtesy of AUDI OF AMERICA, INC.

Remove rear bumper cover:
See BUMPER COVER (SEDAN), ASSEMBLY OVERVIEW or BUMPER COVER (AVANT), ASSEMBLY OVERVIEW .
Unplug connector -1- on sensor. See Fig 2.
Push both retainer tabs sideways -arrows - and push sensor inward through from outside.

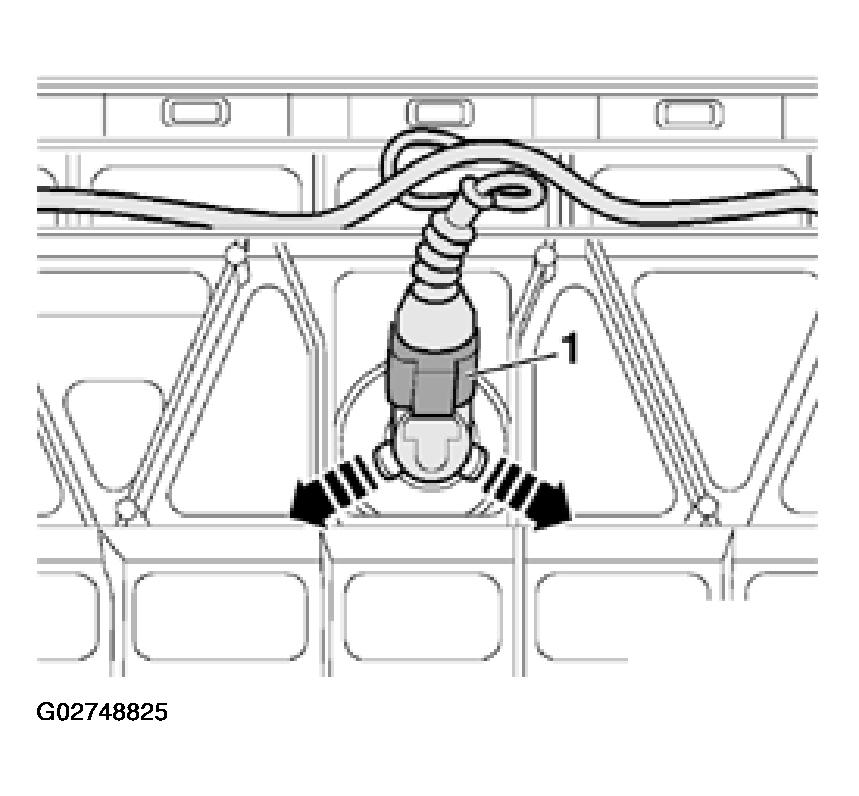

Fig 2: Removing Rear Parking Aid Sensor

Courtesy of AUDI OF AMERICA, INC.
