Rear cross panel trim, assembly overview

WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

The following list pertains to Fig 1.

Rear cross panel trim
- Removal
  - Remove floor carpet from luggage compartment.
  - Loosen two nuts -2- on rear cross panel trim -1- behind spare tire and remove nuts.
  - Disconnect connectors for luggage compartment light.
  - Unclip rear cross panel trim -1- upward from four metal clips -3-.
- Installing
- after assembling trim, make sure seal is properly installed
- Reinsert connector for light.
Nuts (2x)
- Tightening torque 5 Nm
Metal clips (4x)

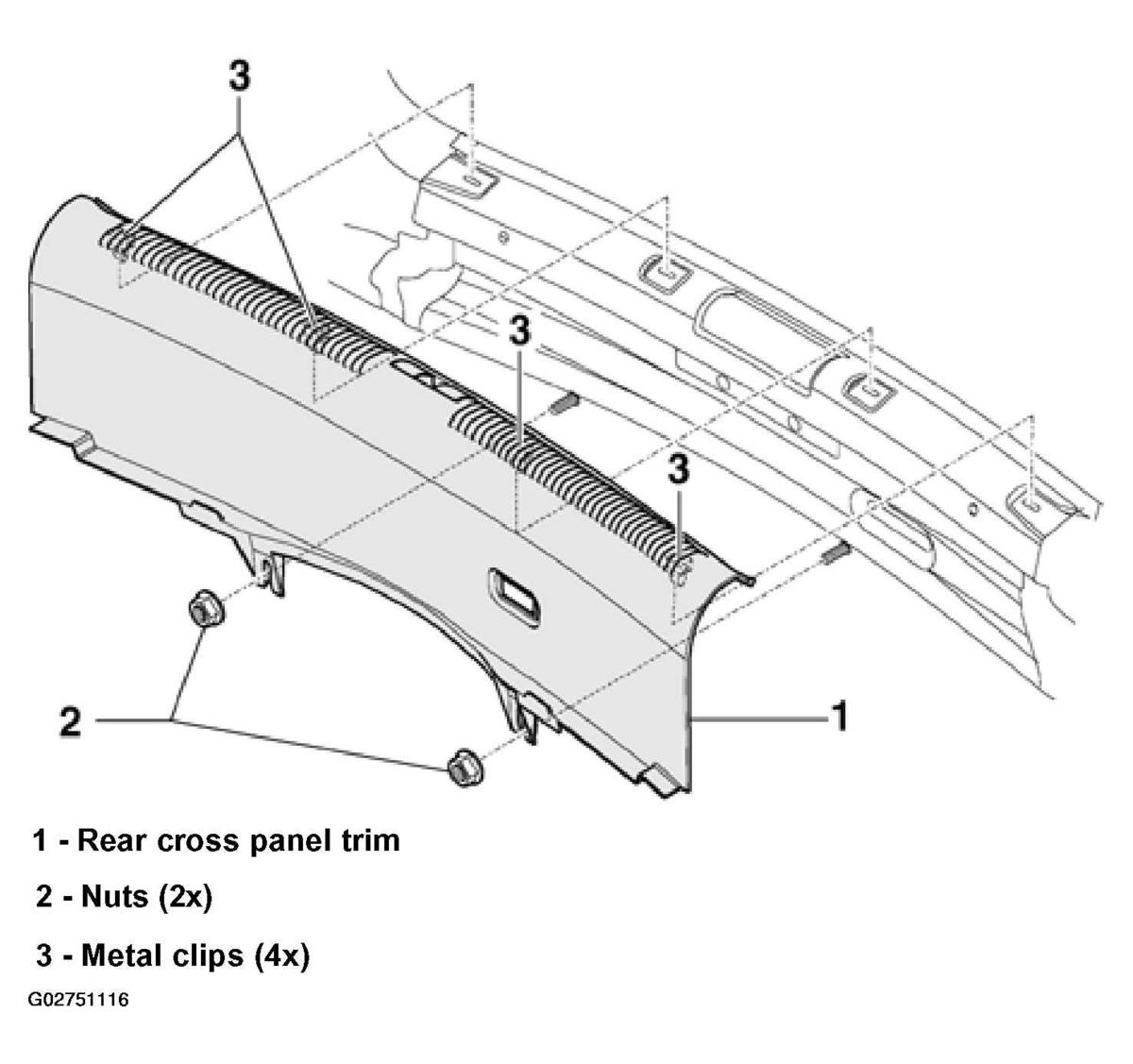

Fig 1: Identifying Rear Cross Panel Trim, Assembly Overview

Courtesy of AUDI OF AMERICA, INC.
