Luggage compartment floor mat, assembly overview

WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

The following list pertains to Fig 1.

Luggage compartment floor mat
- Removal
  - For vehicles with dirt tray: Remove dirt tray. See DIRT TRAY, ASSEMBLY OVERVIEW .
  - Lift up handle -5- on holder -2-.
  - Remove holder -2- at handle -5- upward from mount -6-.
  - For vehicles with dirt tray: Lift up luggage compartment floor mat from the rear and remove it from rear panel sill -4- at holes -3-.
  - Raise luggage compartment floor mat -1- in direction of arrow and remove it from vehicle.
Holder for luggage compartment floor mat
Holes for dirt tray (optional)
Rear panel sill (optional)
Handle on holder for luggage compartment floor mat
Mount for holder for luggage compartment floor mat

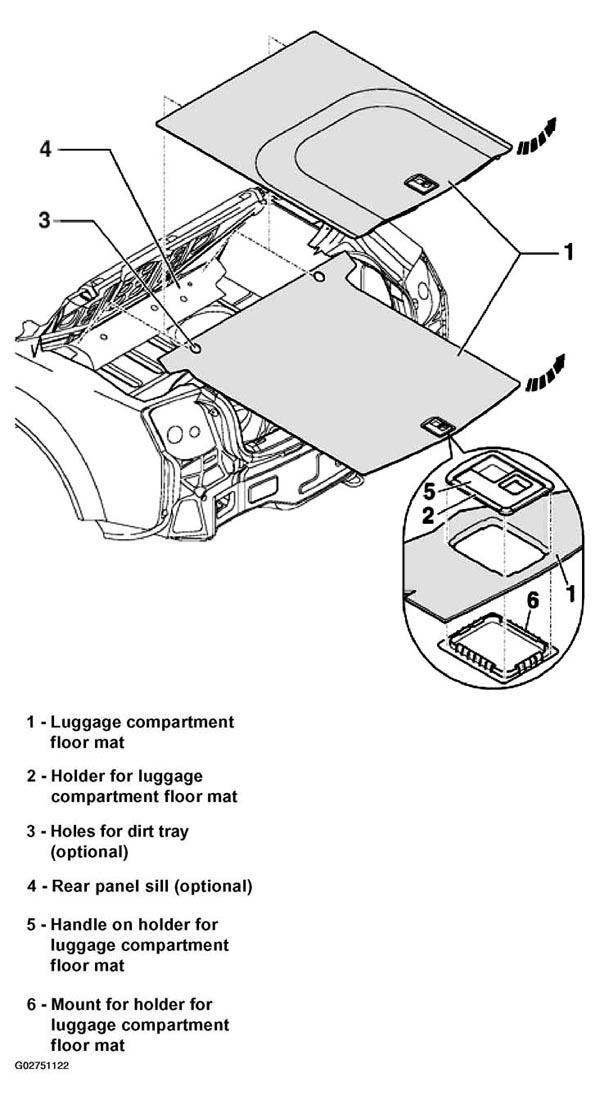

Fig 1: Identifying Luggage Compartment Floor Mat, Assembly Overview

Courtesy of AUDI OF AMERICA, INC.
