Diagnostic Trouble Code (DTC) table; DTC's 00000 to 00526

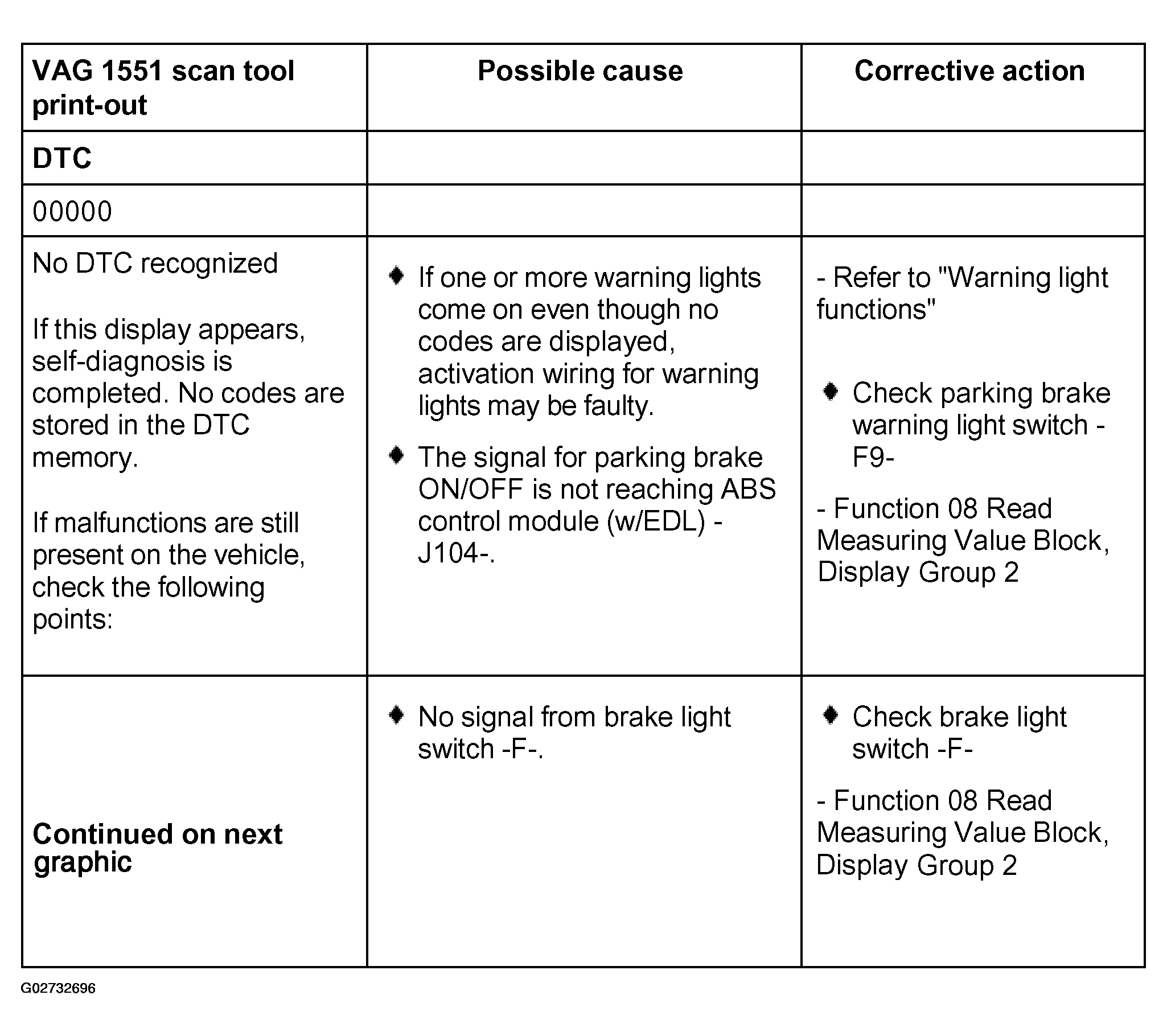

Fig 1: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 00000)

Courtesy of AUDI OF AMERICA, INC.

For warning light functions, see WARNING LIGHT FUNCTIONS TABLE .
For read measuring value block, see READ MEASURING VALUE BLOCK (FUNCTION 08) and READ MEASURING VALUE BLOCK: DISPLAY GROUP 2 .

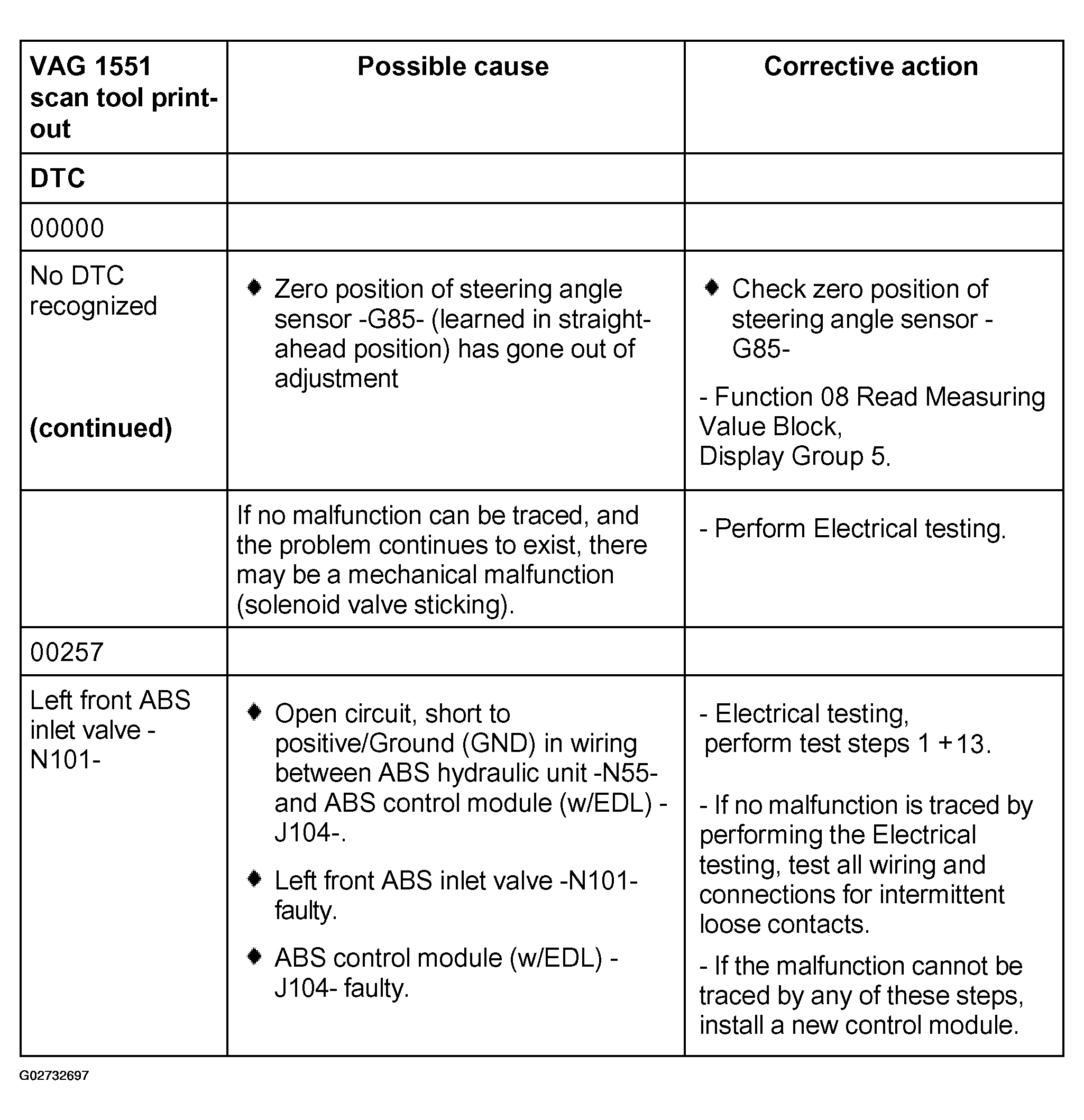

Fig 2: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 00000 And 00257)

Courtesy of AUDI OF AMERICA, INC.

For read measuring value block, see READ MEASURING VALUE BLOCK (FUNCTION 08) and READ MEASURING VALUE BLOCK: DISPLAY GROUP 5
For electrical testing, see ELECTRICAL TESTING .

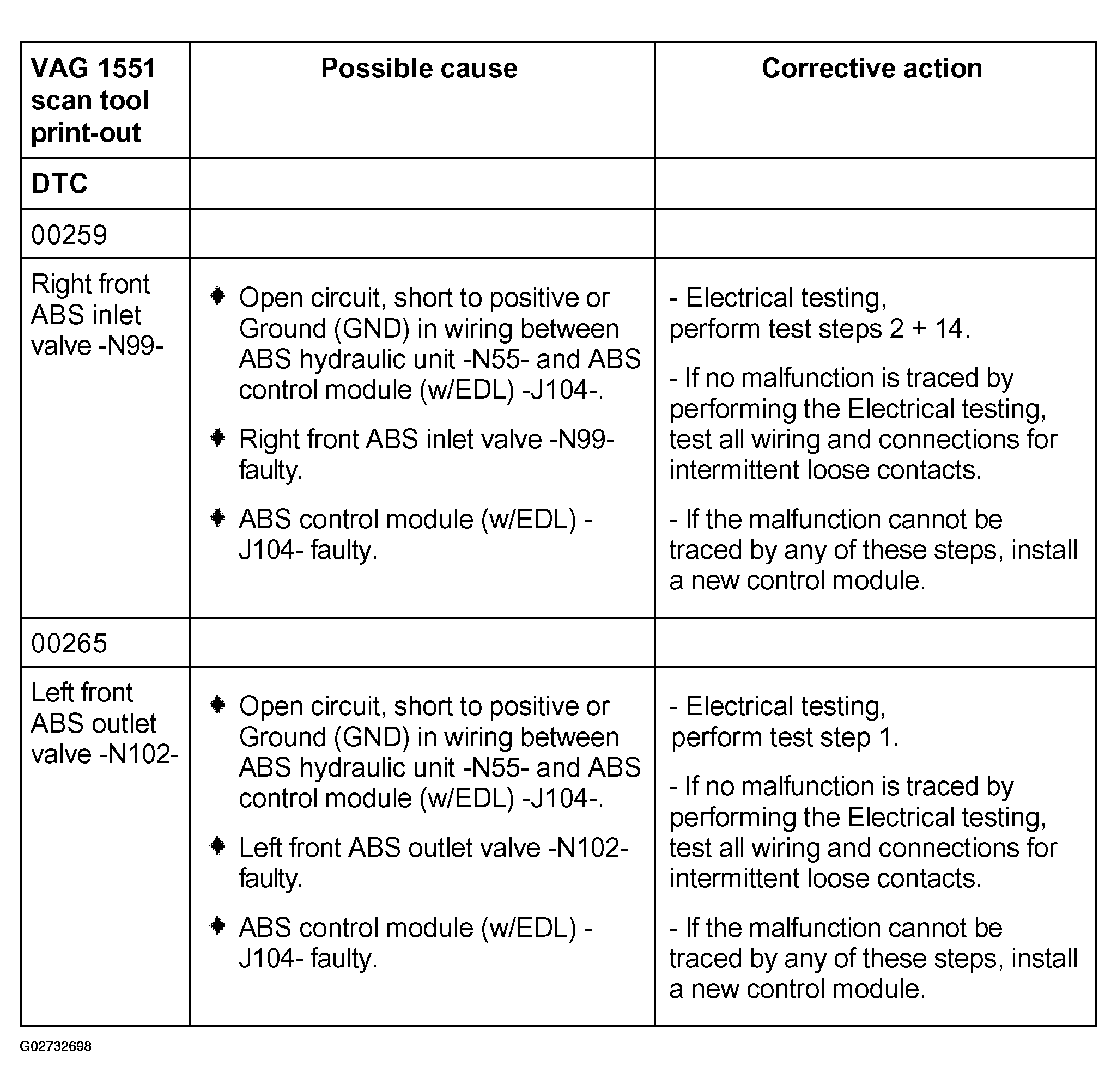

Fig 3: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 00259 And 00265)

Courtesy of AUDI OF AMERICA, INC.

For electrical testing, see ELECTRICAL TESTING .

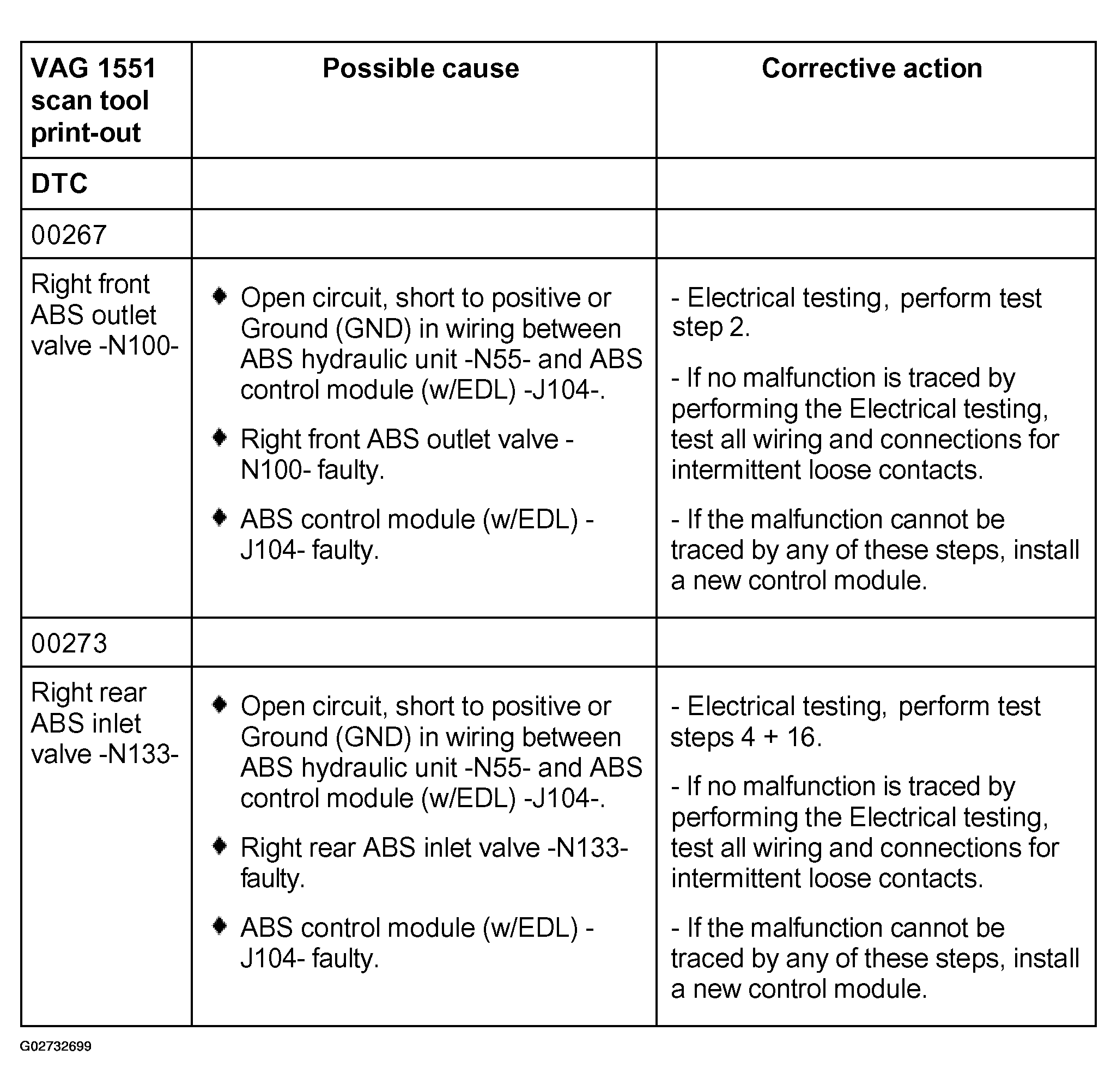

Fig 4: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 00267 And 00273)

Courtesy of AUDI OF AMERICA, INC.

For electrical testing, see ELECTRICAL TESTING .

Fig 5: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 00274 And 00275)

Courtesy of AUDI OF AMERICA, INC.

For electrical testing, see ELECTRICAL TESTING .

Fig 6: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 00276)

Courtesy of AUDI OF AMERICA, INC.

For electrical testing, see ELECTRICAL TESTING .

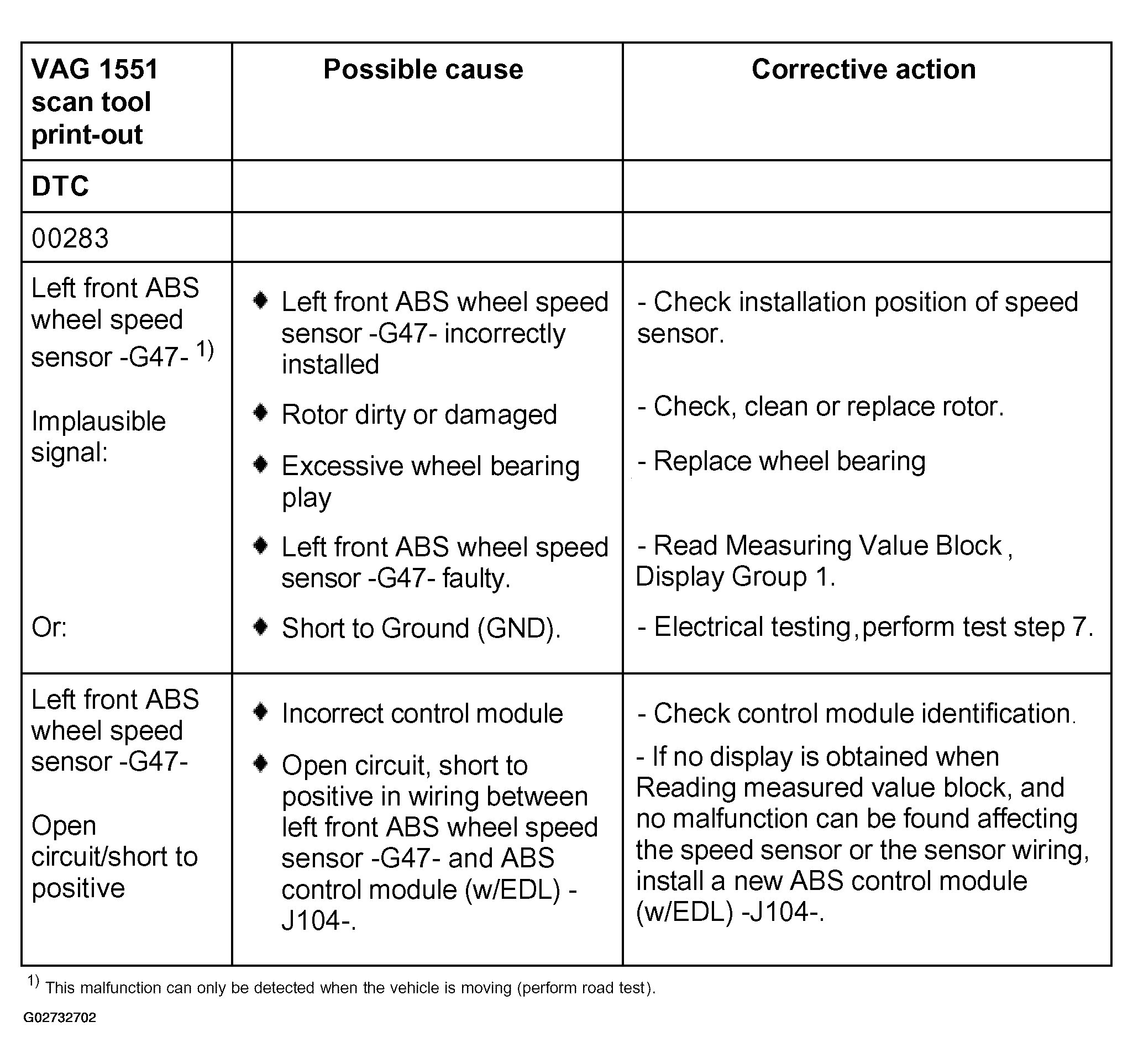

Fig 7: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 00283)

Courtesy of AUDI OF AMERICA, INC.

For information on brake system, see DISC article.
For front wheel bearing replacement procedure, see SUSPENSION - FRONT .
For read measuring value block, see READ MEASURING VALUE BLOCK (FUNCTION 08) .
For electrical testing, see ELECTRICAL TESTING .
For control module identification, see CHECK CONTROL MODULE VERSIONS (FUNCTION 01) .

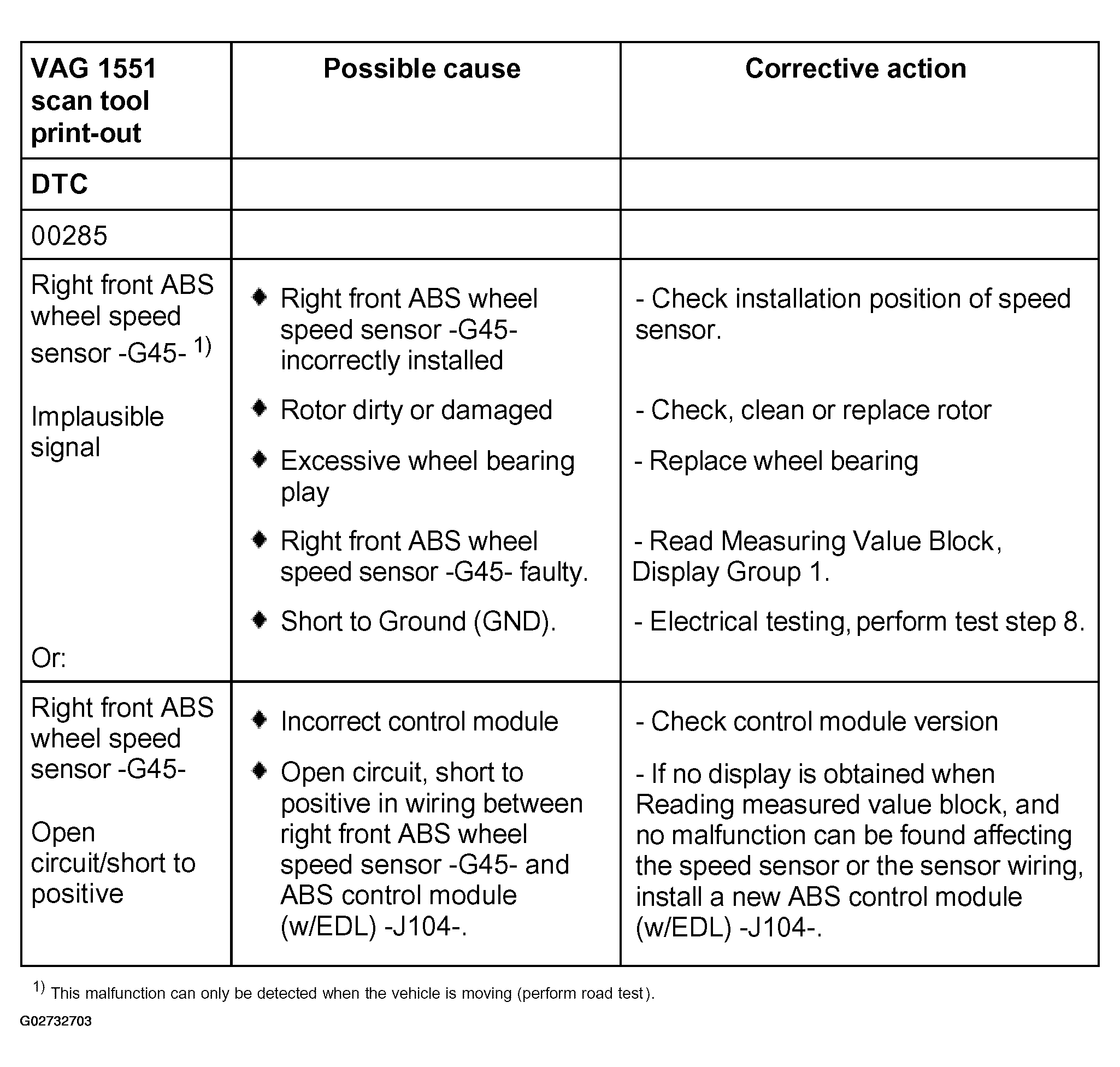

Fig 8: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 00285)

Courtesy of AUDI OF AMERICA, INC.

For information on brake system, see DISC article.
For front wheel bearing replacement procedure, see SUSPENSION - FRONT .
For read measuring value block, see READ MEASURING VALUE BLOCK (FUNCTION 08) .
For electrical testing, see ELECTRICAL TESTING .
For control module identification, see CHECK CONTROL MODULE VERSIONS (FUNCTION 01) .

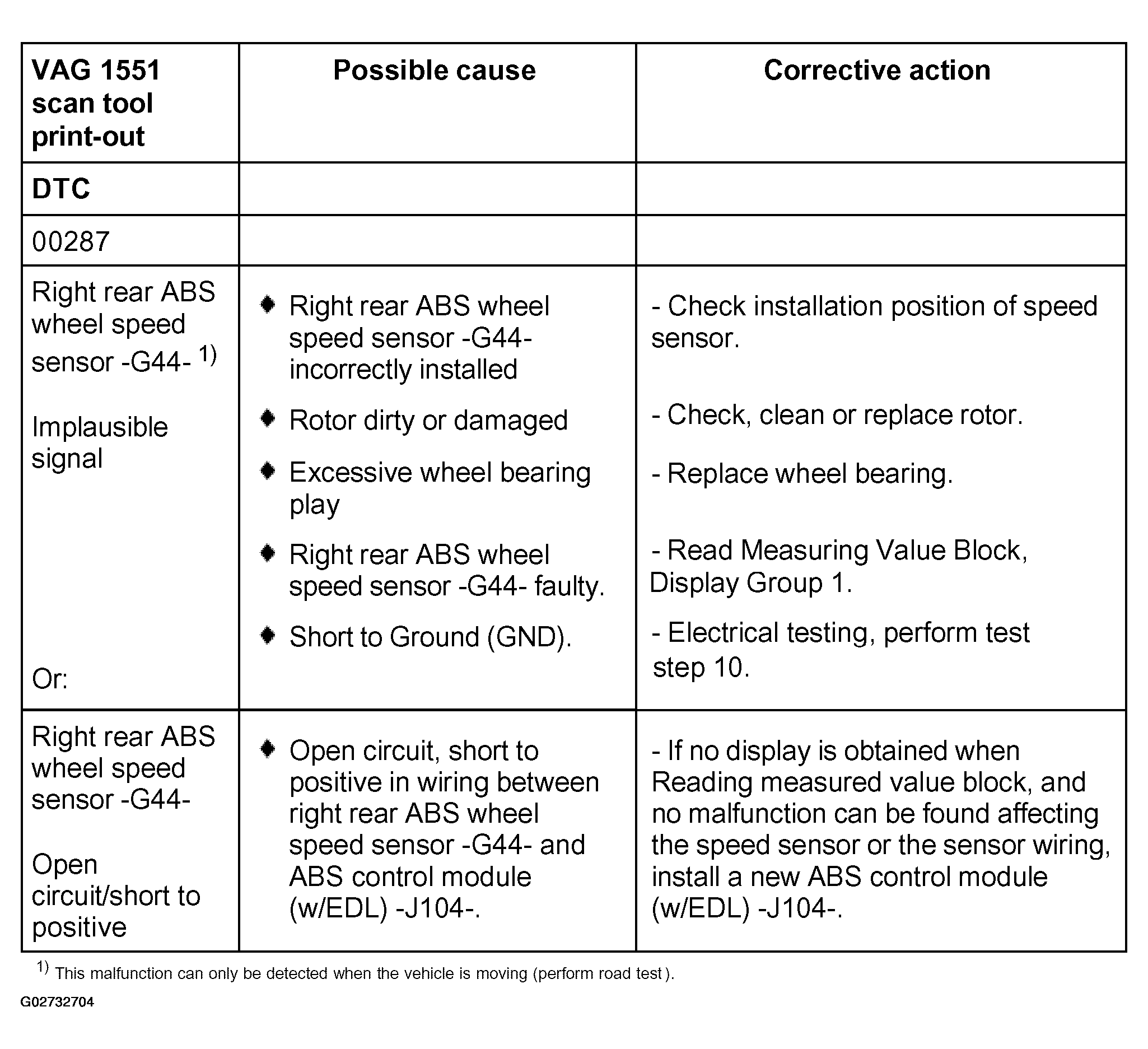

Fig 9: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 00287)

Courtesy of AUDI OF AMERICA, INC.

For information on brake system, see DISC article.
For rear wheel bearing replacement procedure, see appropriate SUSPENSION - REAR article.
For read measuring value block, see READ MEASURING VALUE BLOCK (FUNCTION 08) .
For electrical testing, see ELECTRICAL TESTING .

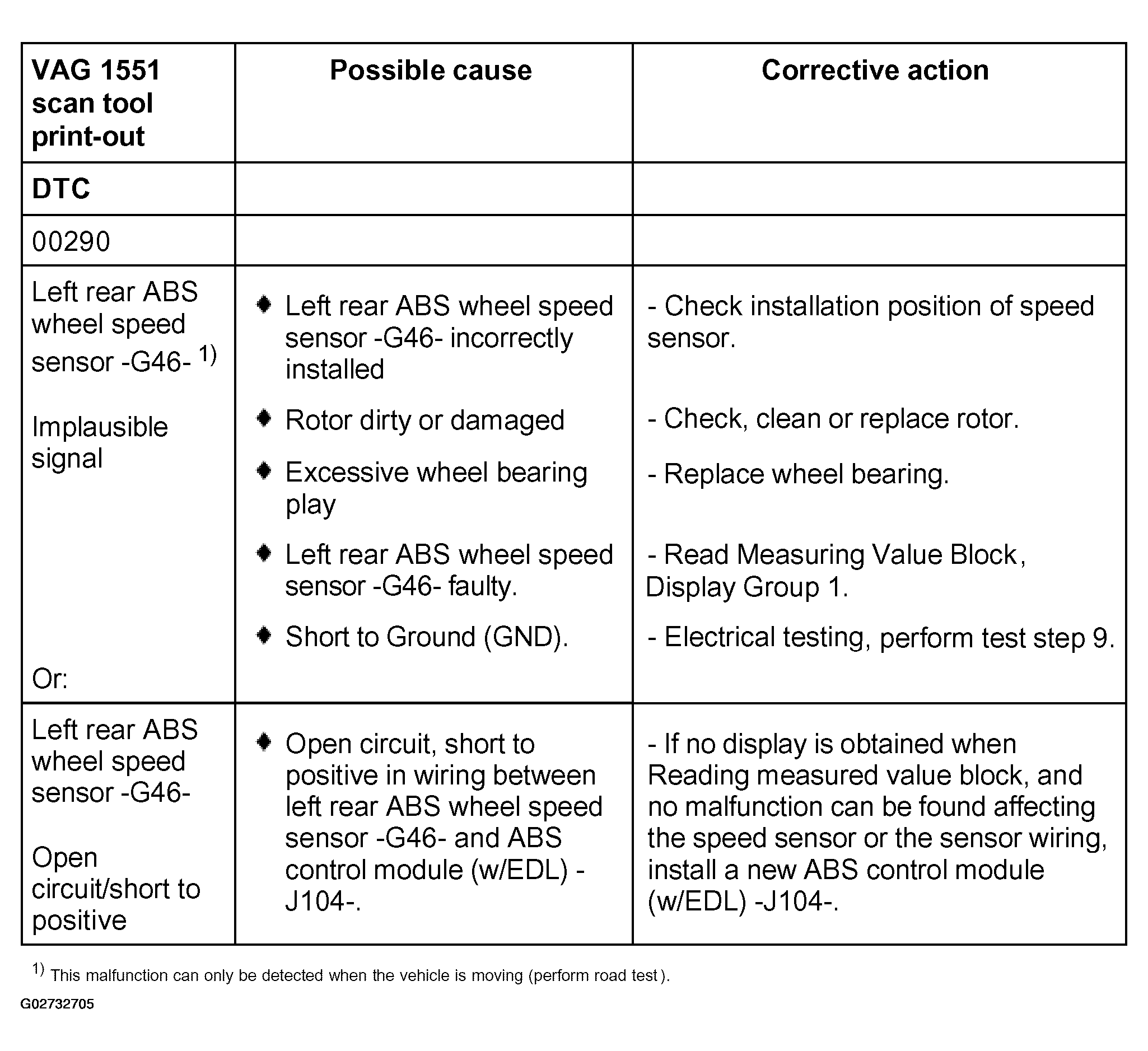

Fig 10: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 00290)

Courtesy of AUDI OF AMERICA, INC.

For information on brake system, see DISC article.
For rear wheel bearing replacement procedure, see appropriate SUSPENSION - REAR article.
For read measuring value block, see READ MEASURING VALUE BLOCK (FUNCTION 08) .
For electrical testing, see ELECTRICAL TESTING .

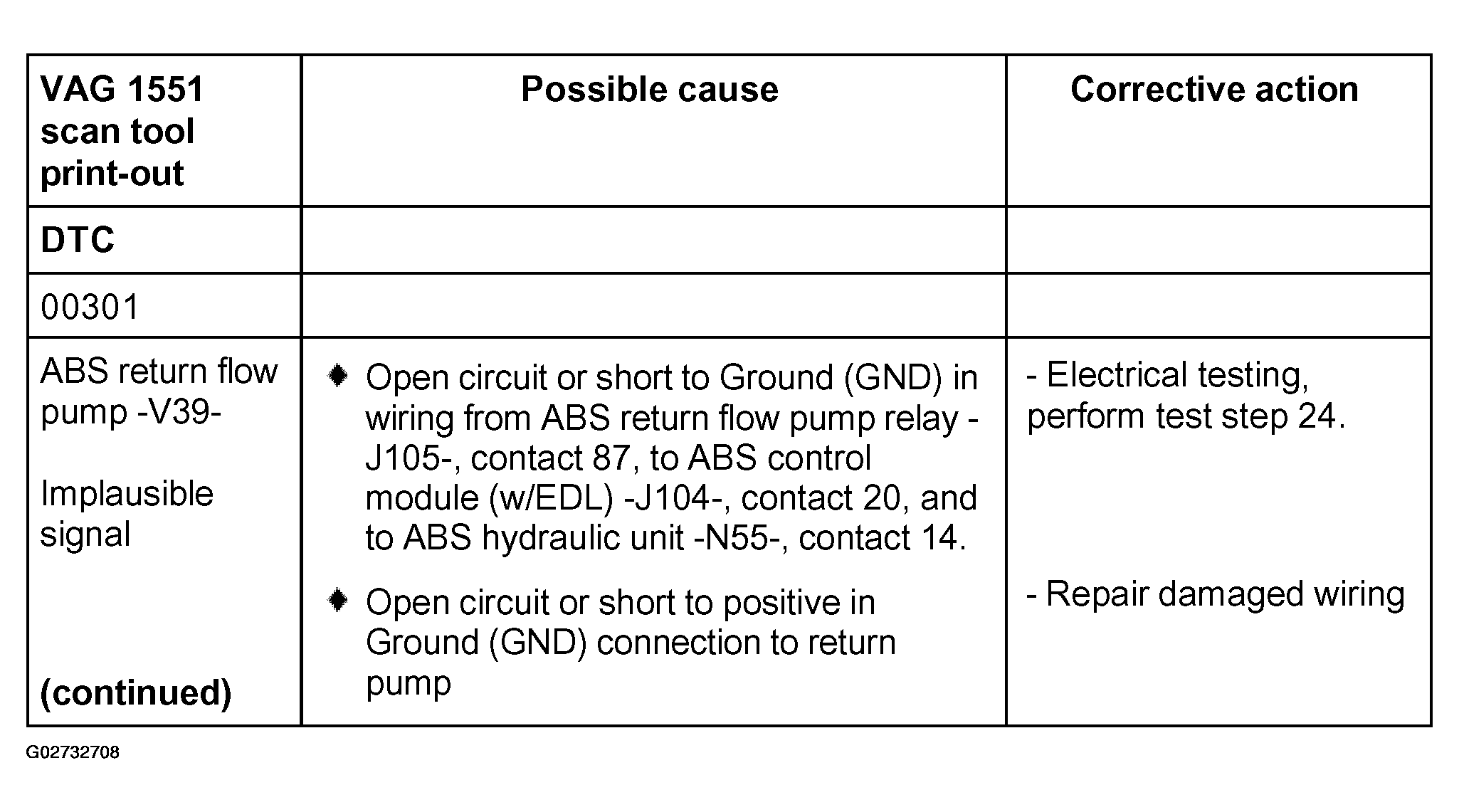

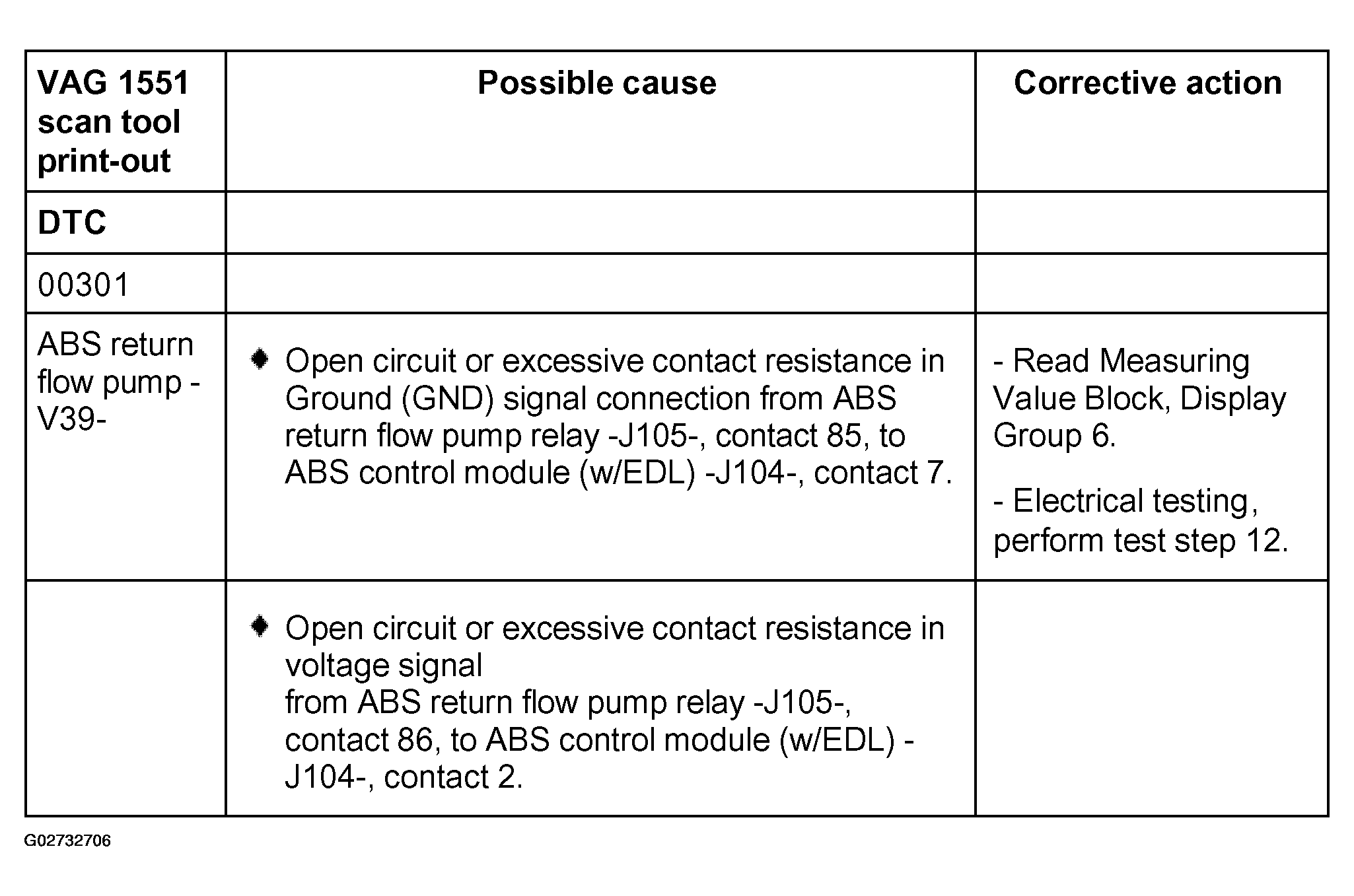

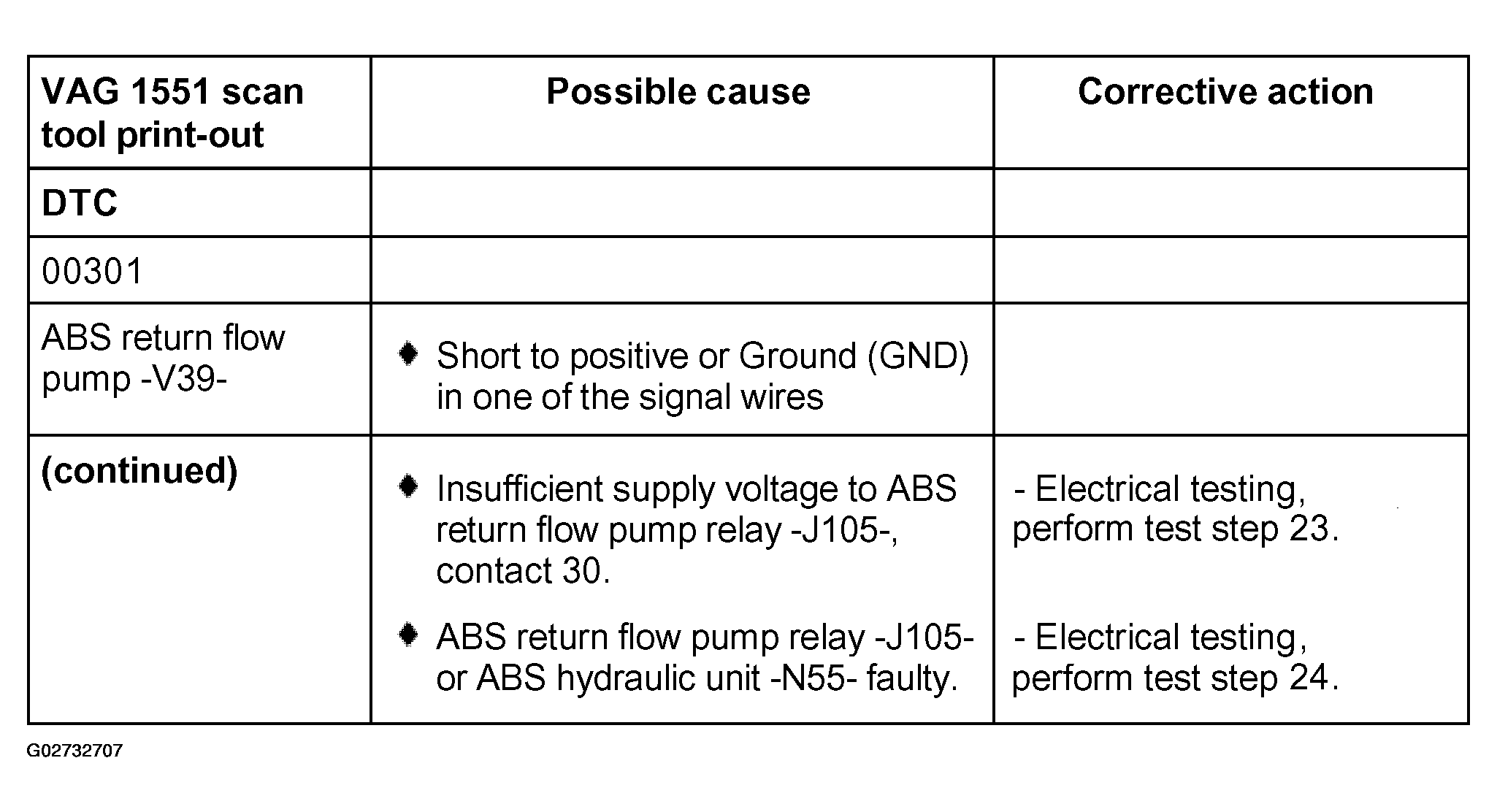

Fig 11: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 00301 - 1 Of 3)

Courtesy of AUDI OF AMERICA, INC.

Fig 12: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 00301 - 2 Of 3)

Courtesy of AUDI OF AMERICA, INC.

Fig 13: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 00301 - 3 Of 3)

Courtesy of AUDI OF AMERICA, INC.

For read measuring value block, see READ MEASURING VALUE BLOCK (FUNCTION 08) .
For electrical testing, see ELECTRICAL TESTING .

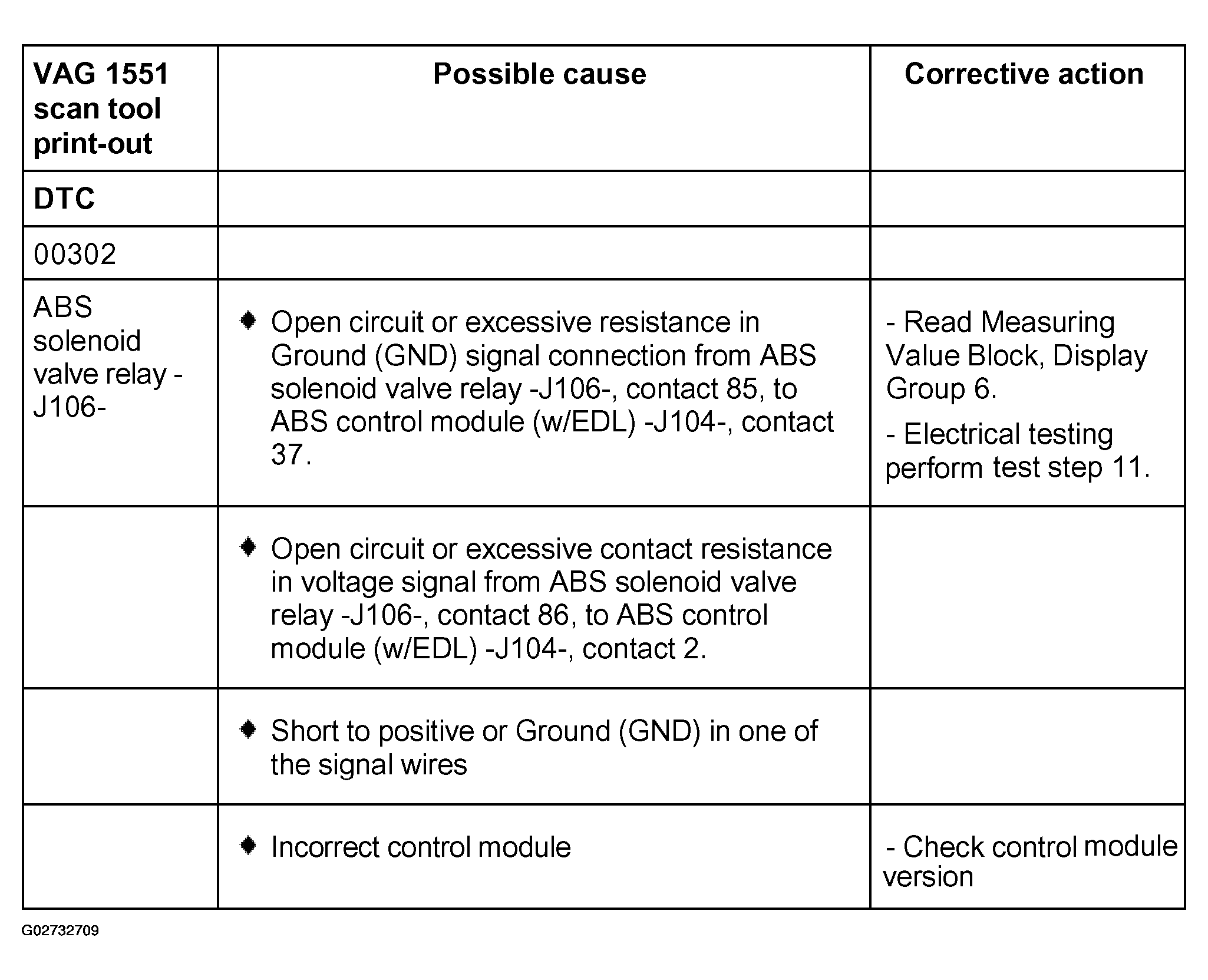

Fig 14: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 00302)

Courtesy of AUDI OF AMERICA, INC.

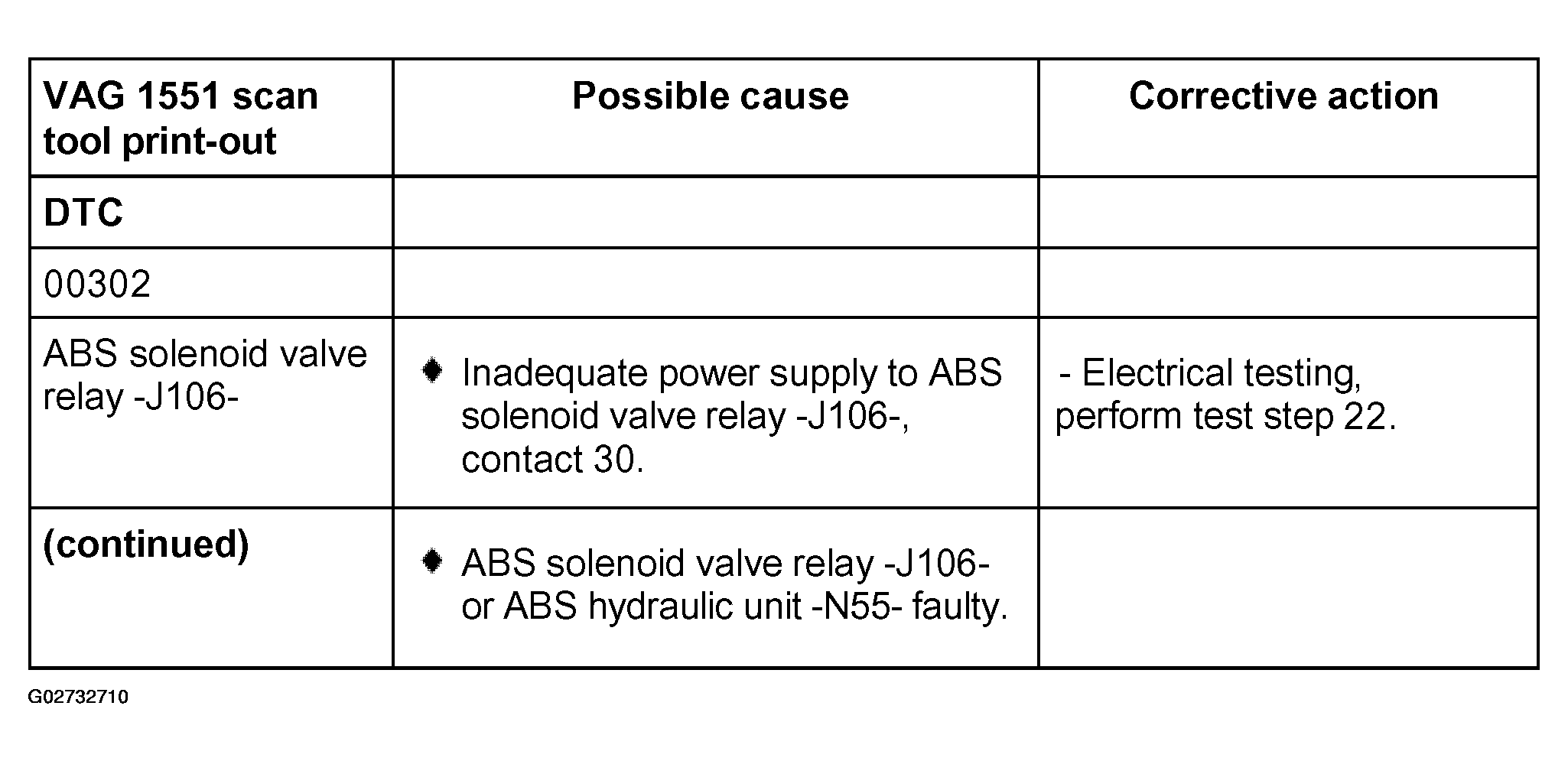

Fig 15: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 00302, Cont.)

Courtesy of AUDI OF AMERICA, INC.

For read measuring value block, see READ MEASURING VALUE BLOCK (FUNCTION 08) .
For electrical testing, see ELECTRICAL TESTING .
For control module identification, see CHECK CONTROL MODULE VERSIONS (FUNCTION 01) .

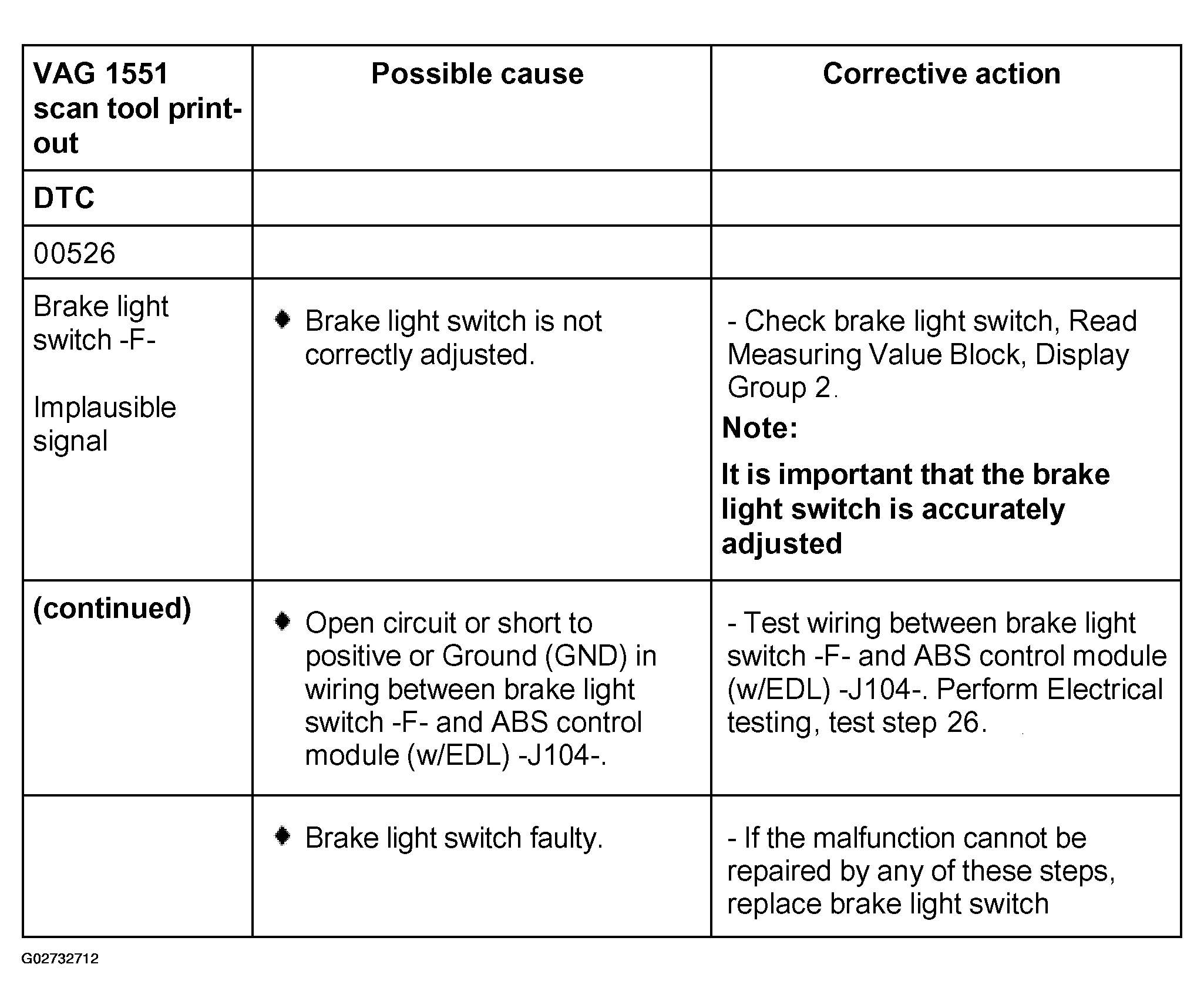

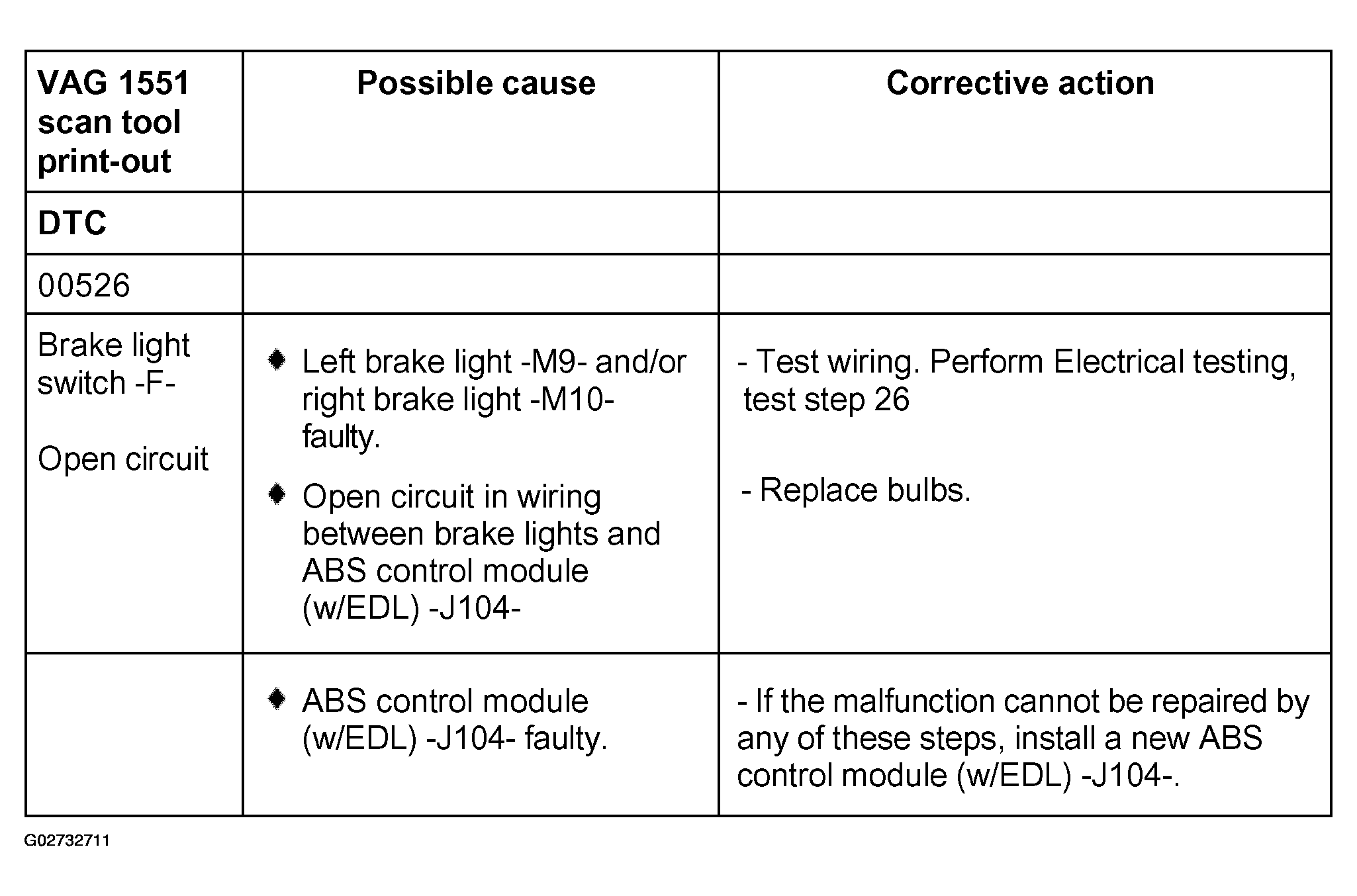

Fig 16: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 00526 - 1 Of 3)

Courtesy of AUDI OF AMERICA, INC.

Fig 17: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 00526 - 2 Of 3)

Courtesy of AUDI OF AMERICA, INC.

Fig 18: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 00526 - 3 Of 3)

Courtesy of AUDI OF AMERICA, INC.

For electrical testing, see ELECTRICAL TESTING .
For read measuring value block, see READ MEASURING VALUE BLOCK (FUNCTION 08) .
For information on replacing brake system components, see DISC and ANTILOCK BRAKE SYSTEM articles.
