Read measuring value block: display group 2

NOTE: The display group numbers can be selected in sequence by pressing buttons -1- and -3- ((VAG 1551 scan tool) or buttons uparrow and downarrow ((VAG 1552 scan tool) or by pressing "uparrow "and" downarrow" on the screen of VAS 5051 vehicle diagnostic, testing and information system.

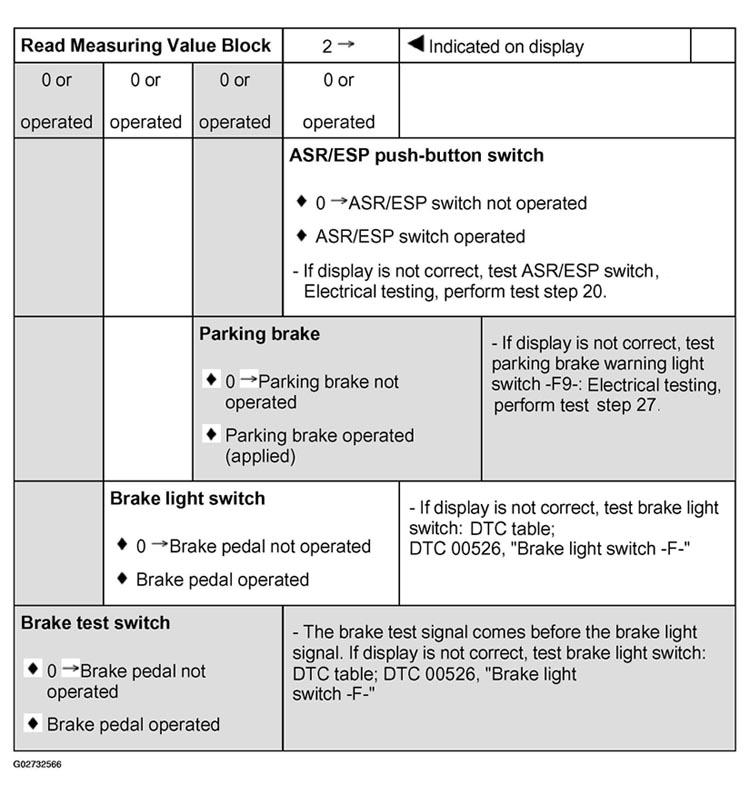

Fig 1: Read Measuring Value Block Chart (Display Group 2)

Courtesy of AUDI OF AMERICA, INC.

For electrical testing, see ELECTRICAL TESTING .
For DTC table, see ESP DIAGNOSTIC TROUBLE CODE (DTC) MEMORY, CHECKING .

Press button -C- in order to enter the display group number manually.

Indicated on display

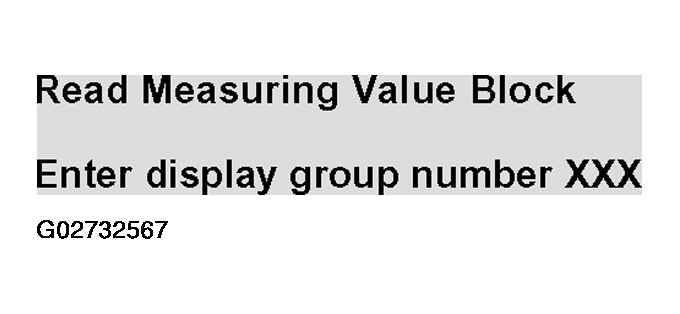

Fig 2: VAG 1551 Scan Tool Display - Enter Display Group Number XXX

Courtesy of AUDI OF AMERICA, INC.

Press buttons -0-, -0- and -3-.
Press -Q- button to confirm input.

NOTE: For Display Group 3:

If you wish to read out the display zones for engine speed and actual engine torque with the engine running, you must first interrupt the diagnostic link between the scan tool and the control module using the function "End Output". See ENDING OUTPUT . Then start the engine and set up the diagnostic link between scan tool and control module once again.

Indicated on display

Fig 3: VAG 1551 Scan Tool Display - 08 - Read Measuring Value Block

Courtesy of AUDI OF AMERICA, INC.

Press buttons -0- and -8- for the function "Read Measuring Value Block".
Press -Q- button to confirm input.

Indicated on display

Fig 4: VAG 1551 Scan Tool Display - Enter Display Group Number XXX

Courtesy of AUDI OF AMERICA, INC.

Press buttons -0-, -0- and -3-.
Press -Q- button to confirm input.
