Diagnostic Trouble Code (DTC) table; DTC's 01435 to 01542

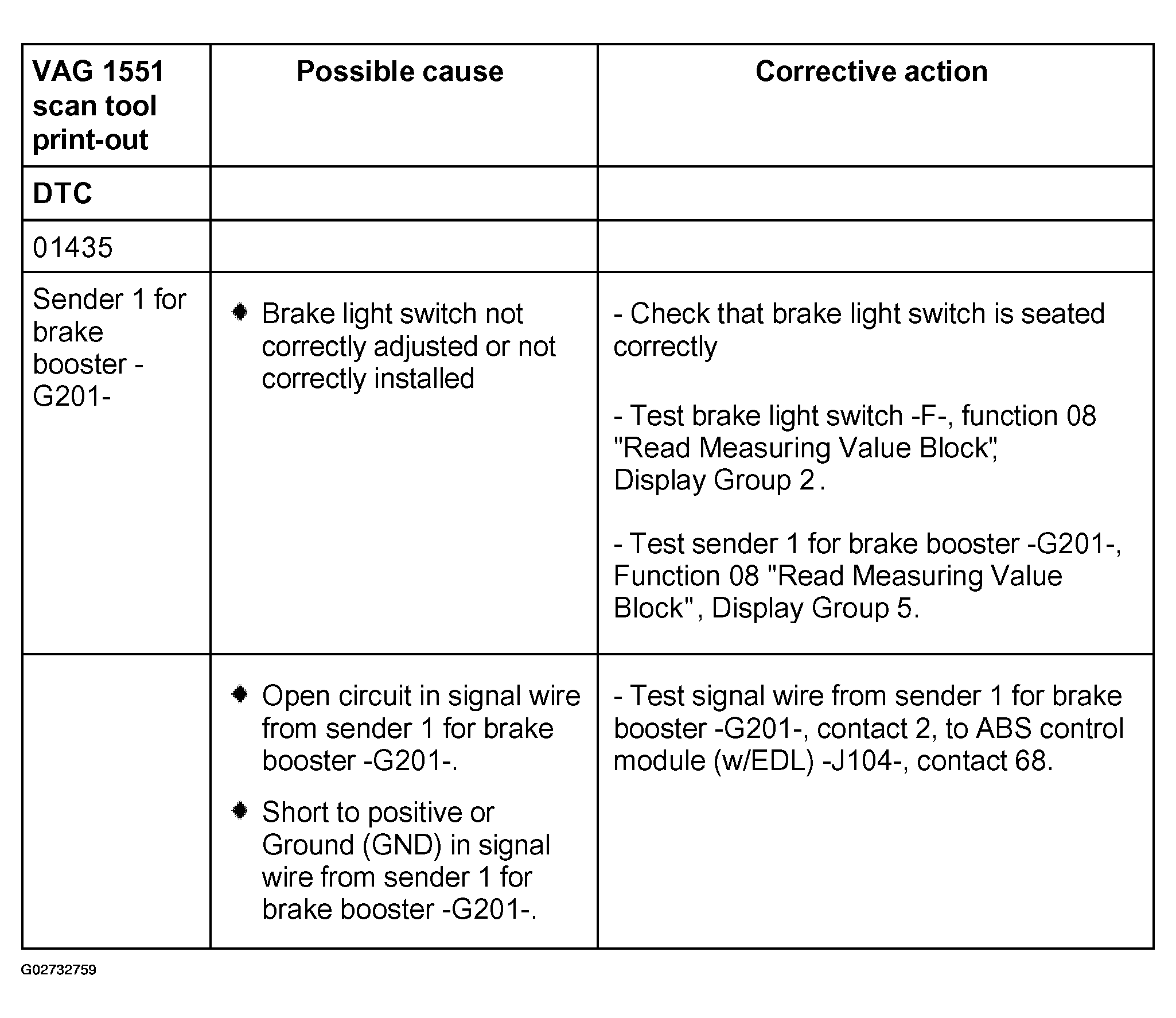

Fig 1: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 01435 - 1 Of 7)

Courtesy of AUDI OF AMERICA, INC.

For read measuring value block, display group 2, see READ MEASURING VALUE BLOCK (FUNCTION 08) , READ MEASURING VALUE BLOCK: DISPLAY GROUP 2 .
For read measuring value block, display group 5, see READ MEASURING VALUE BLOCK (FUNCTION 08) , READ MEASURING VALUE BLOCK: DISPLAY GROUP 5 .

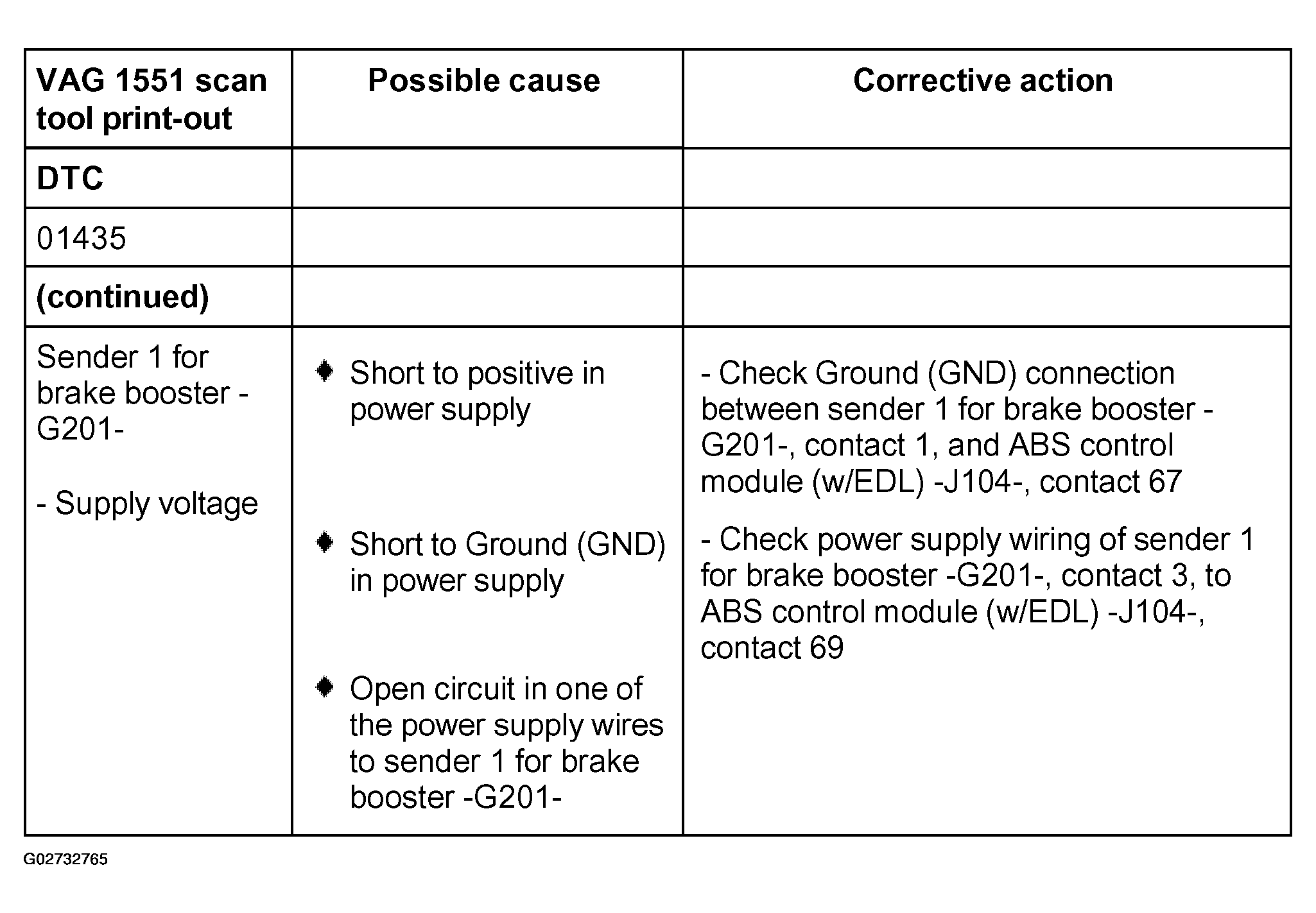

Fig 2: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 01435 - 2 Of 7)

Courtesy of AUDI OF AMERICA, INC.

For information on hydraulic pump for traction control, see ABS/ESP SYSTEM COMPONENTS, REMOVING AND INSTALLING .
For brake bleeding procedure, see BLEEDING BRAKE SYSTEM .

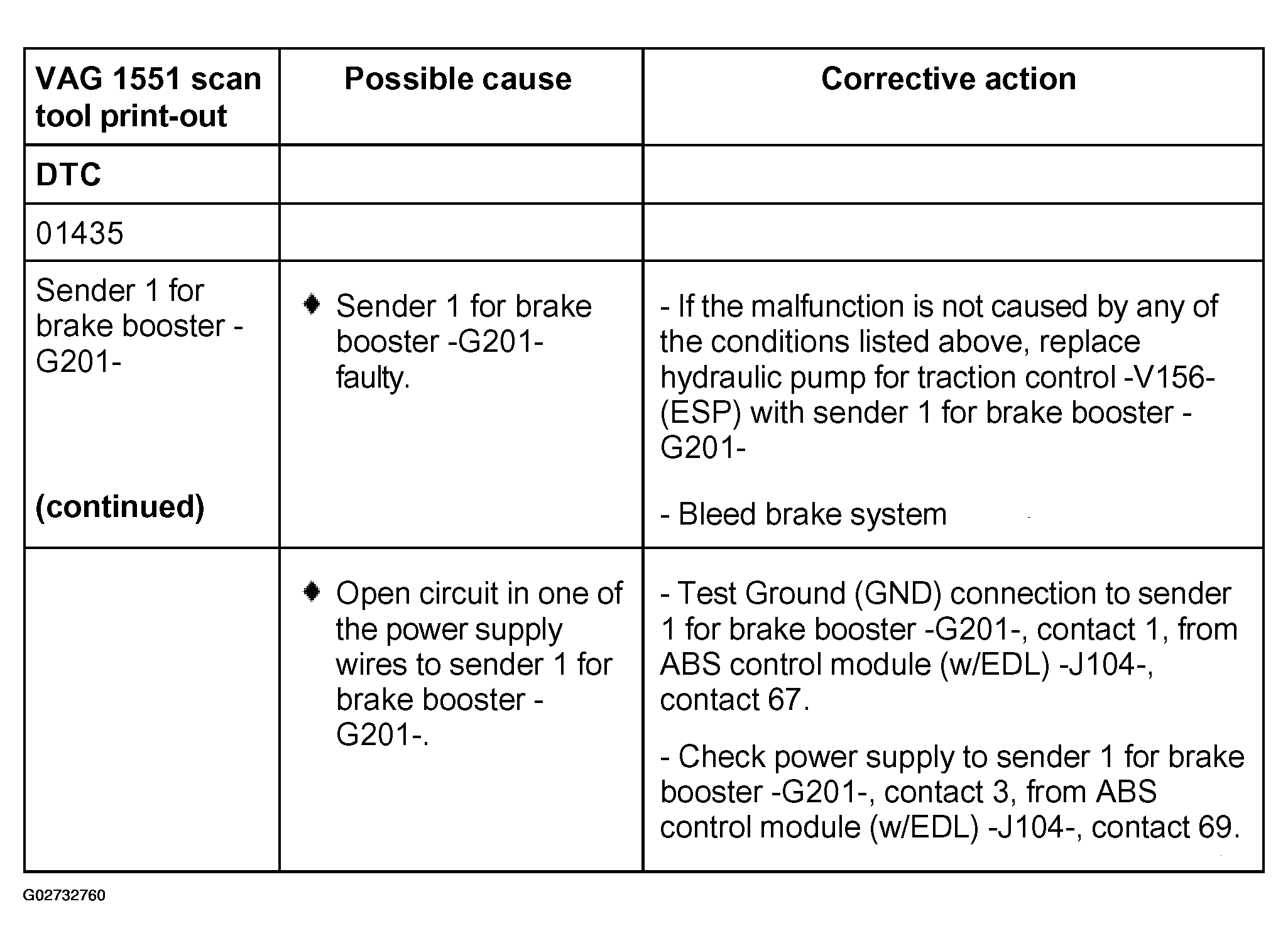

Fig 3: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 01435 - 3 Of 7)

Courtesy of AUDI OF AMERICA, INC.

For information on ABS control module, see ABS/ESP SYSTEM COMPONENTS, REMOVING AND INSTALLING .

Fig 4: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 01435 - 5 Of 7)

Courtesy of AUDI OF AMERICA, INC.

Fig 5: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 01435 - 5 Of 7)

Courtesy of AUDI OF AMERICA, INC.

For information on hydraulic pump for traction control or ABS control module, see ABS/ESP SYSTEM COMPONENTS, REMOVING AND INSTALLING .
For brake bleeding procedure, see BLEEDING BRAKE SYSTEM .

Fig 6: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 01435 - 6 Of 7)

Courtesy of AUDI OF AMERICA, INC.

To erase DTC memory, see ERASING DTC MEMORY .
To end output, see ENDING OUTPUT .
To perform road test, see ROAD TESTING .
For information on hydraulic pump for traction control or ABS control module, see ABS/ESP SYSTEM COMPONENTS, REMOVING AND INSTALLING .
For brake bleeding procedure, see BLEEDING BRAKE SYSTEM .

Fig 7: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 01435 - 7 Of 7)

Courtesy of AUDI OF AMERICA, INC.

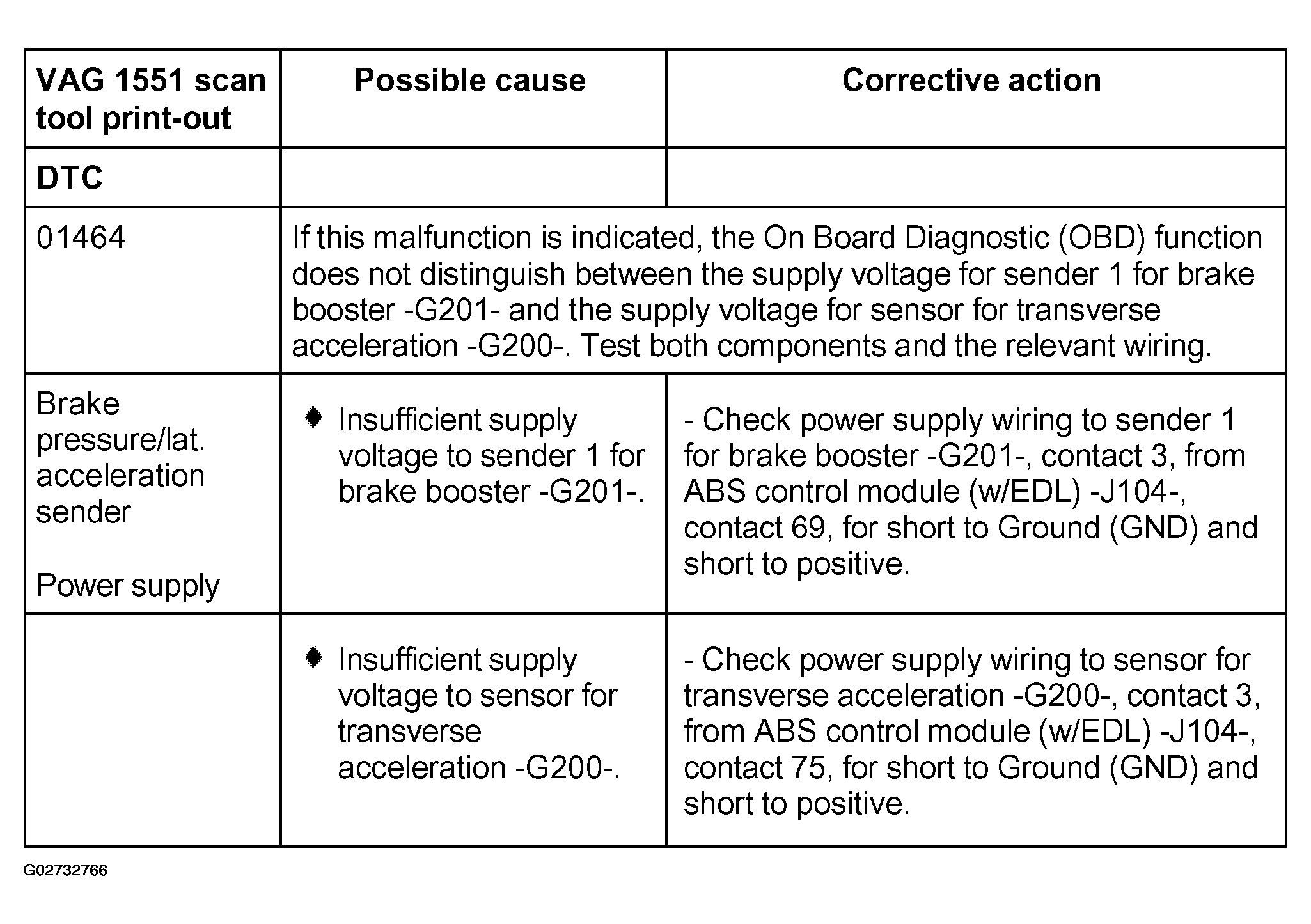

Fig 8: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 01464)

Courtesy of AUDI OF AMERICA, INC.

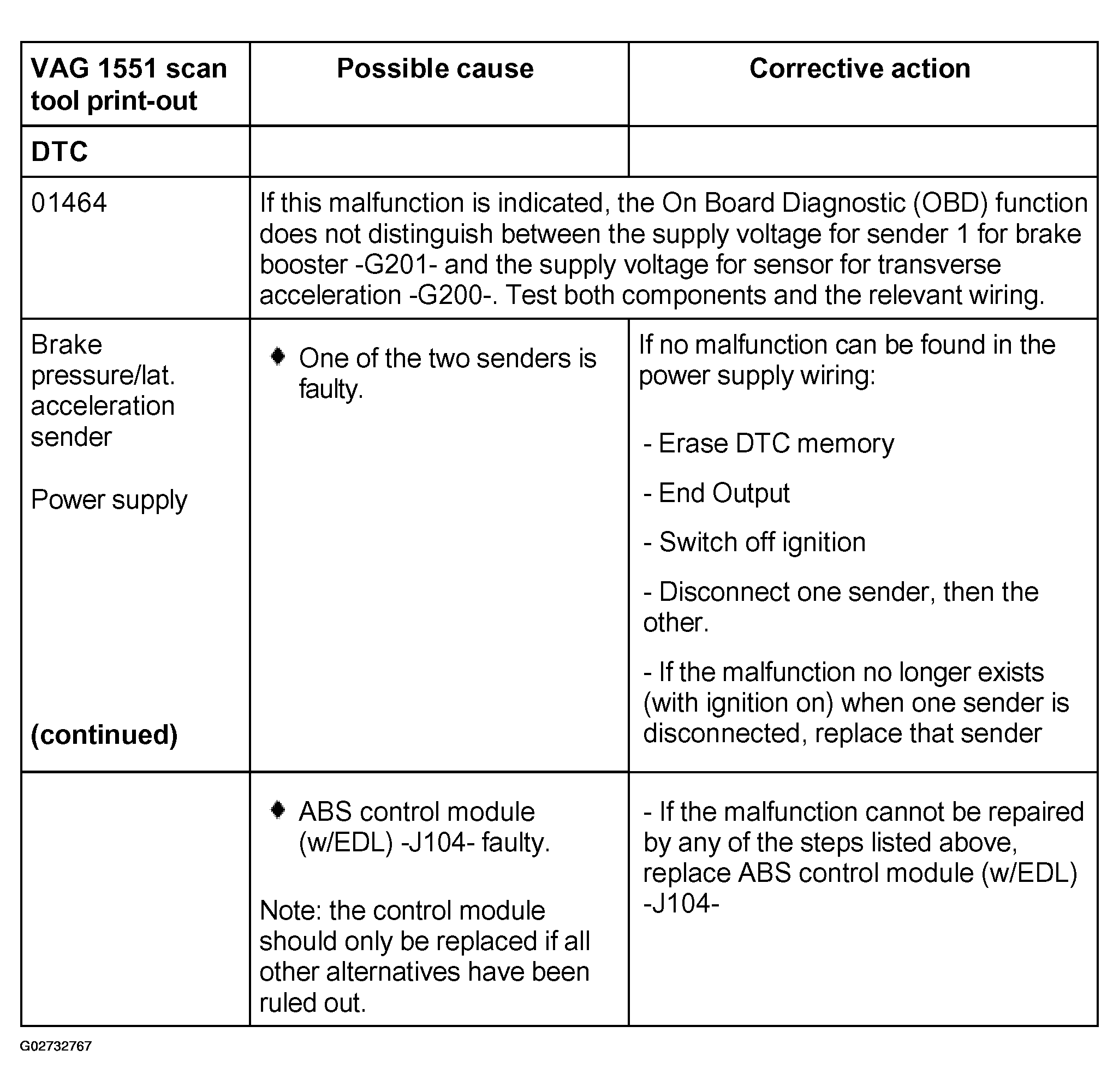

Fig 9: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 01464, Cont.)

Courtesy of AUDI OF AMERICA, INC.

To erase DTC memory, see ERASING DTC MEMORY .
To end output, see ENDING OUTPUT .
For information on brake pressure/lateral acceleration sender or ABS control module, see ABS/ESP SYSTEM COMPONENTS, REMOVING AND INSTALLING .
For brake bleeding procedure, see BLEEDING BRAKE SYSTEM .

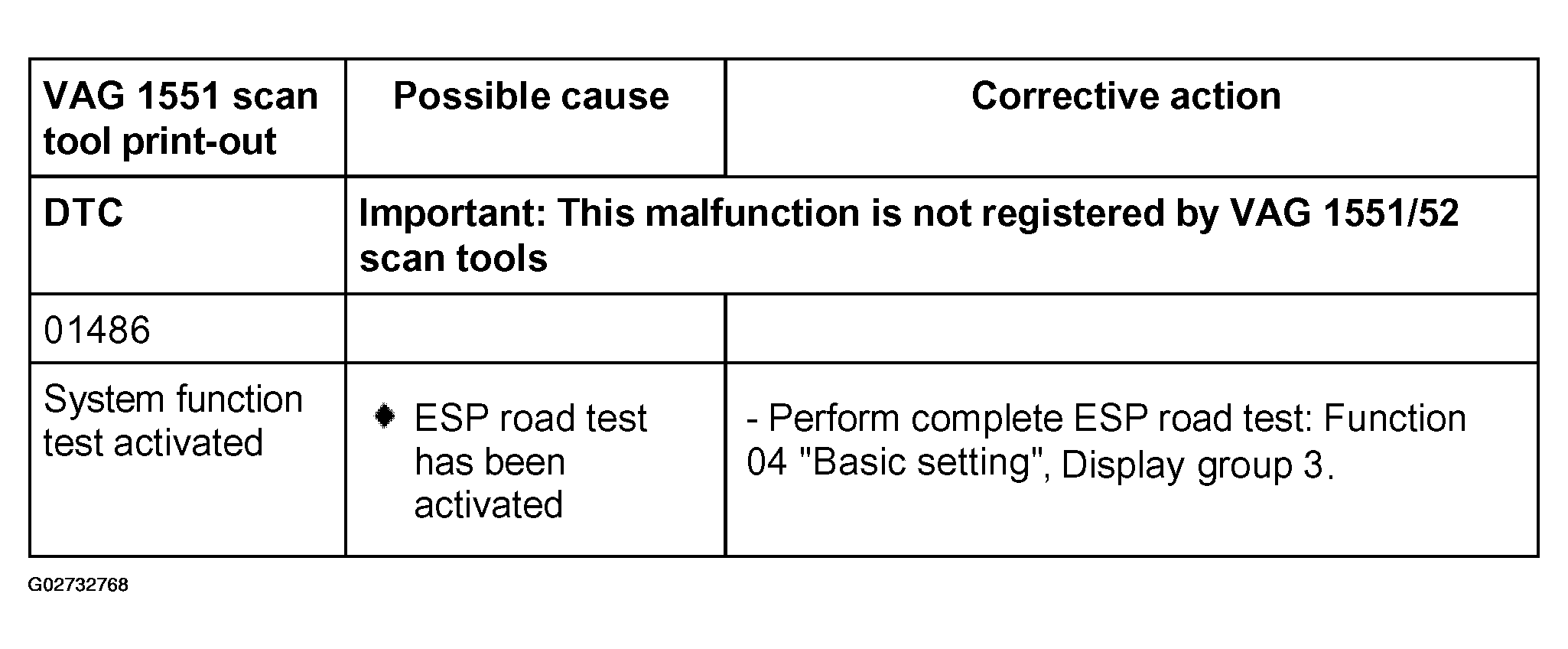

Fig 10: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 01486)

Courtesy of AUDI OF AMERICA, INC.

For basic setting, see BASIC SETTING (SCAN TOOL FUNCTION 04) and READ MEASURING VALUE BLOCK: DISPLAY GROUP 3 .

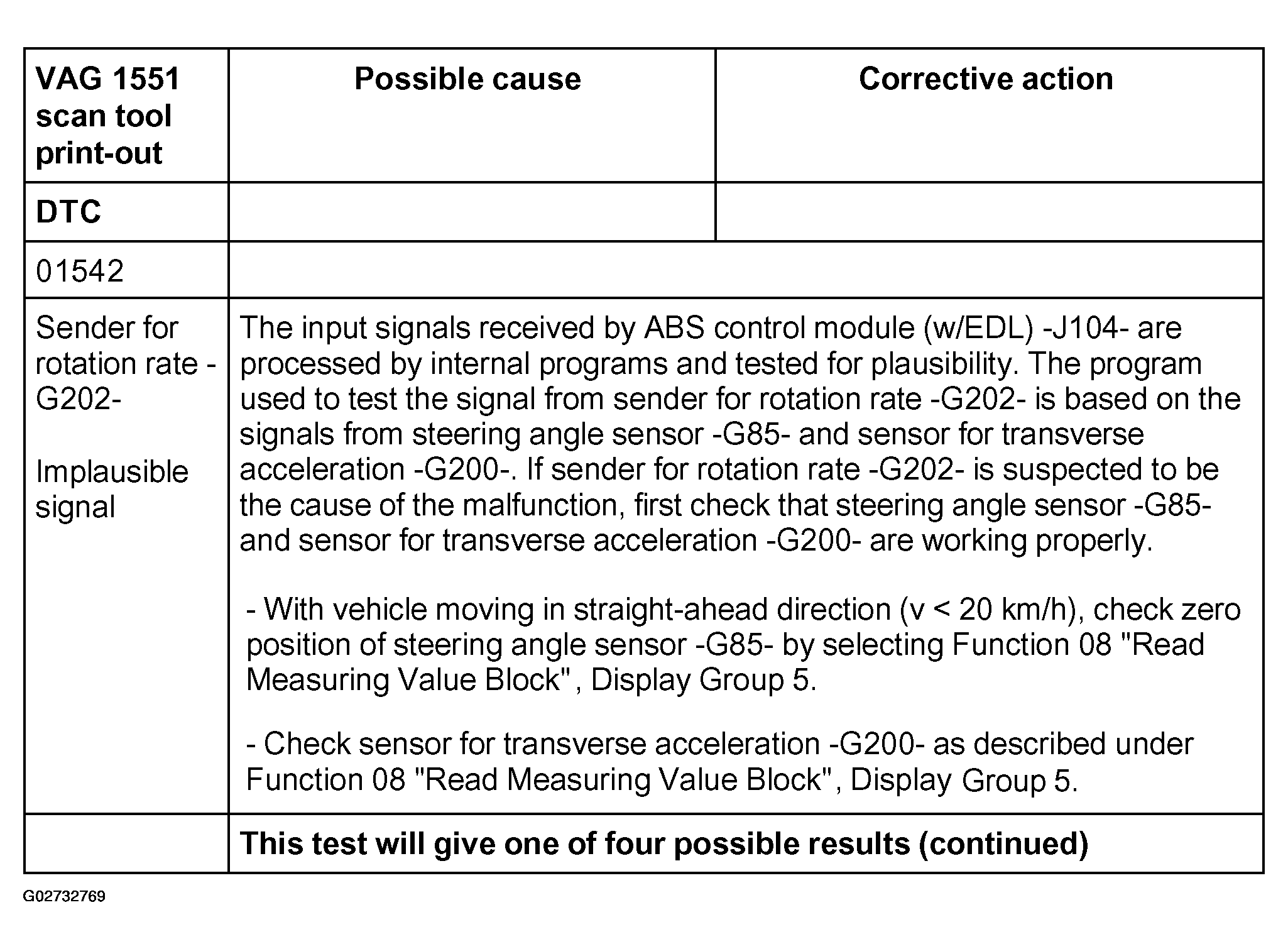

Fig 11: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 01542 - 1 Of 18)

Courtesy of AUDI OF AMERICA, INC.

For measuring value block, display group 5, see READ MEASURING VALUE BLOCK (FUNCTION 08) and READ MEASURING VALUE BLOCK: DISPLAY GROUP 5 .

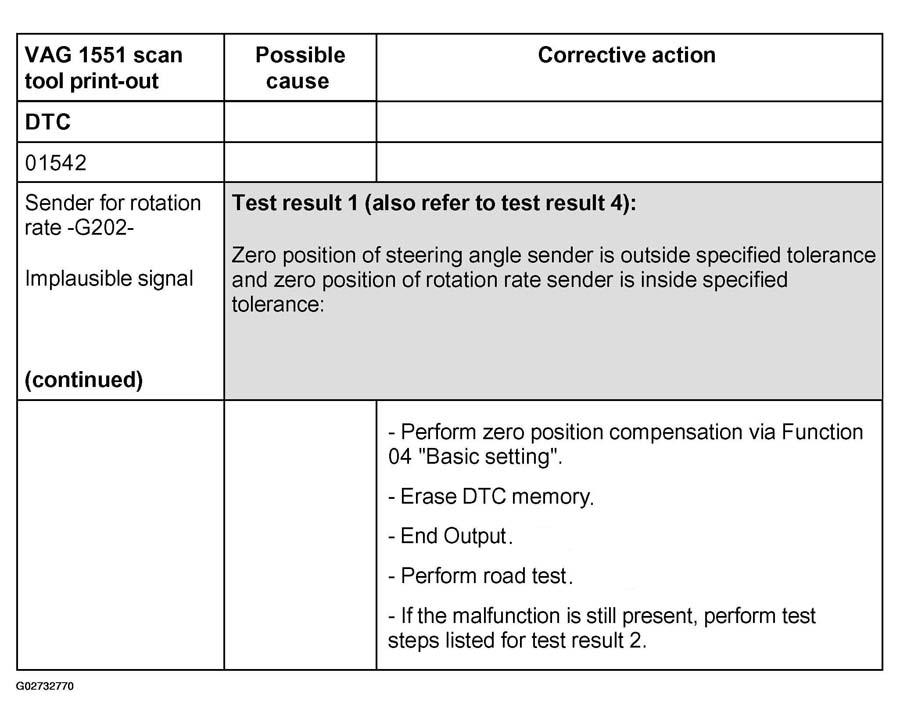

Fig 12: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 01542 - 2 Of 18)

Courtesy of AUDI OF AMERICA, INC.

For basic setting, see ZERO POSITION ADJUSTMENT OF STEERING ANGLE SENSOR -G85- .
To erase DTC memory, see ERASING DTC MEMORY .
To end output, see ENDING OUTPUT .
To perform road test, see ROAD TESTING .

Fig 13: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 01542 - 3 Of 18)

Courtesy of AUDI OF AMERICA, INC.

Fig 14: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 01542 - 4 Of 18)

Courtesy of AUDI OF AMERICA, INC.

Fig 15: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 01542 - 5 Of 18)

Courtesy of AUDI OF AMERICA, INC.

To erase DTC memory, see ERASING DTC MEMORY .
To end output, see ENDING OUTPUT .
To perform road test, see ROAD TESTING .
For information on ABS control module, see ABS/ESP SYSTEM COMPONENTS, REMOVING AND INSTALLING .

Fig 16: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 01542 - 6 Of 18)

Courtesy of AUDI OF AMERICA, INC.

Fig 17: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 01542 - 7 Of 18)

Courtesy of AUDI OF AMERICA, INC.

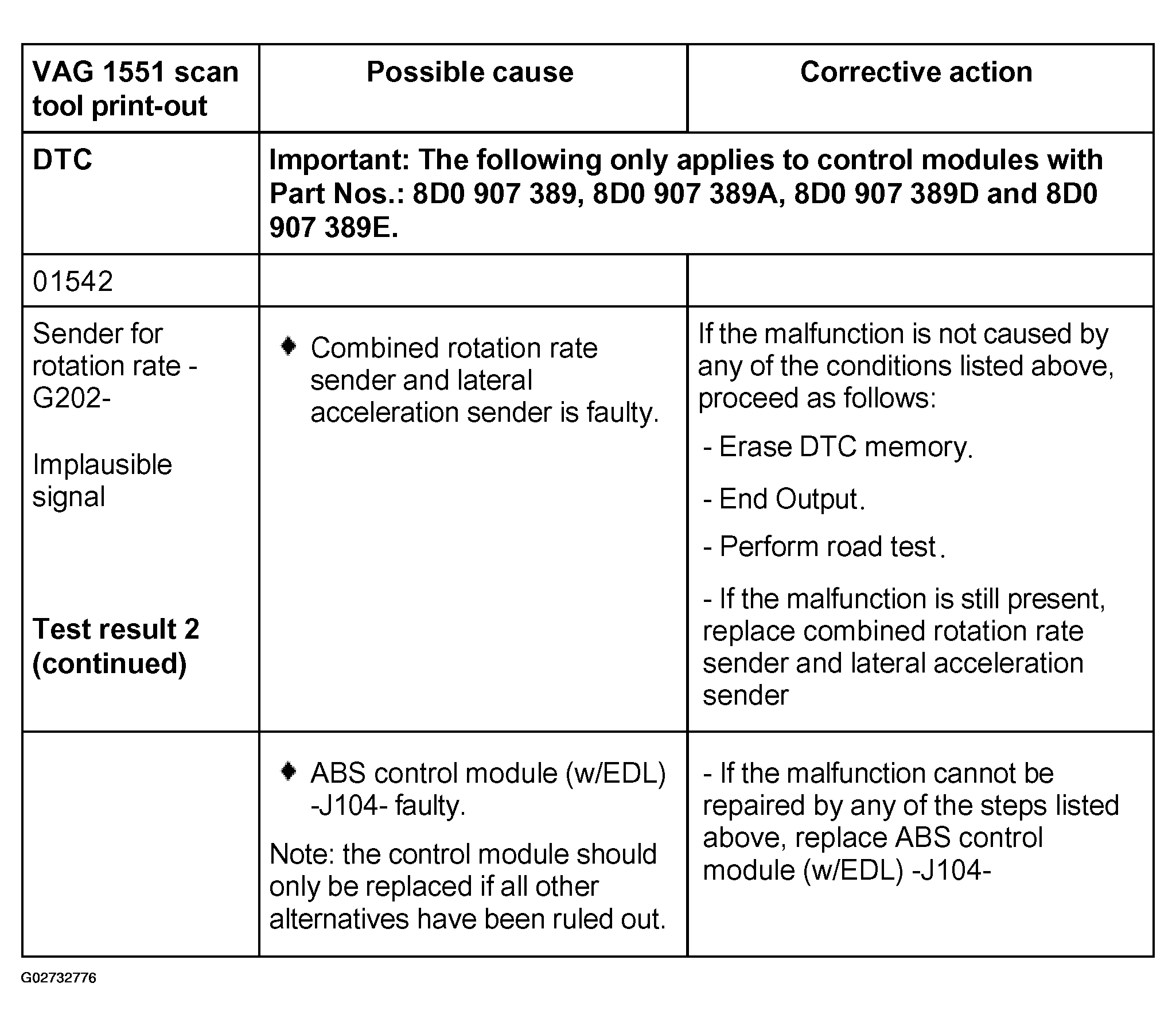

Fig 18: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 01542 - 8 Of 18)

Courtesy of AUDI OF AMERICA, INC.

To erase DTC memory, see ERASING DTC MEMORY .
To end output, see ENDING OUTPUT .
To perform road test, see ROAD TESTING .
For information on rotation rate sender or ABS control module, see ABS/ESP SYSTEM COMPONENTS, REMOVING AND INSTALLING .

Fig 19: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 01542 - 9 Of 18)

Courtesy of AUDI OF AMERICA, INC.

Fig 20: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 01542 - 10 Of 18)

Courtesy of AUDI OF AMERICA, INC.

For measuring value block, display group 5, see READ MEASURING VALUE BLOCK (FUNCTION 08) and READ MEASURING VALUE BLOCK: DISPLAY GROUP 5 .

Fig 21: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 01542 - 11 Of 18)

Courtesy of AUDI OF AMERICA, INC.

Fig 22: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 01542 - 12 Of 18)

Courtesy of AUDI OF AMERICA, INC.

To erase DTC memory, see ERASING DTC MEMORY .
To end output, see ENDING OUTPUT .
To perform road test, see ROAD TESTING .
For information on rotation rate sender or ABS control module, see ABS/ESP SYSTEM COMPONENTS, REMOVING AND INSTALLING .

Fig 23: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 01542 - 13 Of 18)

Courtesy of AUDI OF AMERICA, INC.

For measuring value block, display group 5, see READ MEASURING VALUE BLOCK (FUNCTION 08) and READ MEASURING VALUE BLOCK: DISPLAY GROUP 5 .

Fig 24: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 01542 - 14 Of 18)

Courtesy of AUDI OF AMERICA, INC.

Fig 25: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 01542 - 15 Of 18)

Courtesy of AUDI OF AMERICA, INC.

Fig 26: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 01542 - 16 Of 18)

Courtesy of AUDI OF AMERICA, INC.

Fig 27: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 01542 - 17 Of 18)

Courtesy of AUDI OF AMERICA, INC.

To erase DTC memory, see ERASING DTC MEMORY .
To end output, see ENDING OUTPUT .
To perform road test, see ROAD TESTING .
For information on lateral acceleration sender or ABS control module, see ABS/ESP SYSTEM COMPONENTS, REMOVING AND INSTALLING .

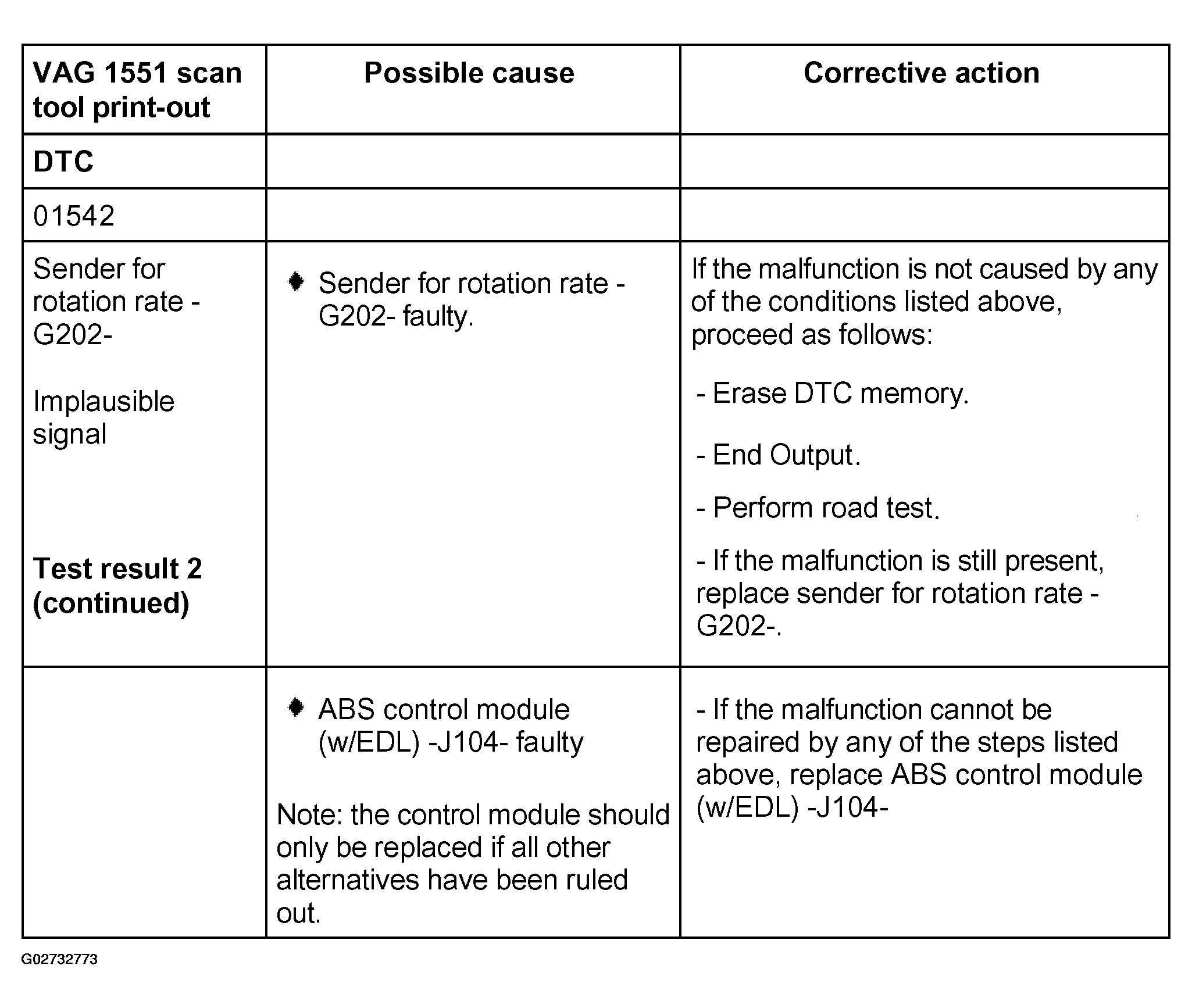

Fig 28: ESP Diagnostic Trouble Code Diagnostic Chart (DTC 01542 - 18 Of 18)

Courtesy of AUDI OF AMERICA, INC.

For information on rotation rate sender or ABS control module, see ABS/ESP SYSTEM COMPONENTS, REMOVING AND INSTALLING .
