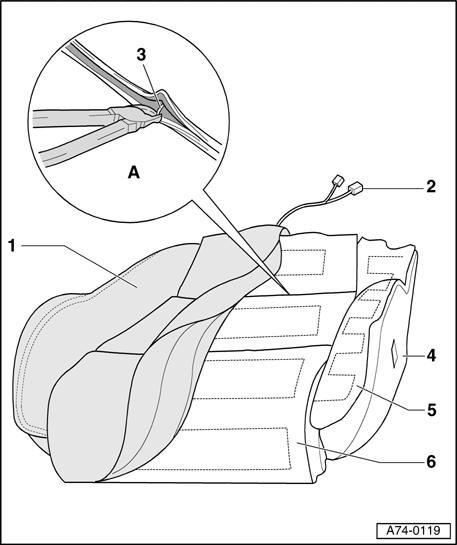

Seat cover from padding, separating

1 - Seat cover

• Removing

• Remove seat cover with padding → Seat cover and padding, removing and installing .
• Lift seat cover fabric - 1  - and cut through staples - 3  - (View A).

• Installing

• Use upholstery stapler V.A.G 1634/ to install new staples.
• To facilitate assembly, push back longitudinal rods as far as first transverse rod.
• When installing, staple transverse rods first, then longitudinal rods.

2 - Connector

• For heated seat to connector console

3 - Staples

4 - Padding

5 - Side cushion heating

• Removing and installing side cushion heating on vehicles with glued heating element → Removing and installing seat heating element (glued)

6 - Seat heating

• Removing and installing seat heating on vehicles with glued heating element → Removing and installing seat heating element (glued)
