Seat cover and padding, removing and installing

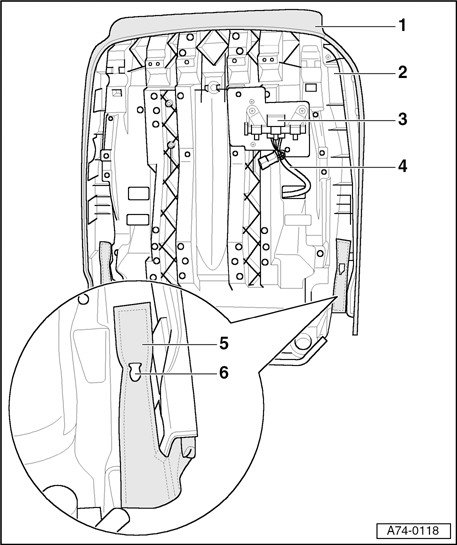

Fig 1: Seat Cover And Padding Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Seat cover

• Remove seat → Seat, removing and installing .
• Remove spring trim → Spring trim, removing .
• Remove seat cushion → Removing and installing seat cushion .
• Remove seat side trim → Seat side trim, removing .

• Release connector - 3  - at retainer tabs.
• Pry open tabs - 6  - (2x).
• Detach fastening straps - 5  - at tabs - 6  -.
• Pry out seat cover from cushion - 2  - around entire cushion.

• Pull wiring - 4  - and connector - 3  - through seat cushion.
• Remove cover - 1  - with padding.
• For separating cover and padding, refer to → Seat cover from padding, separating .

2 - Seat cushion

3 - Connector

4 - Wiring

5 - Fastening strap

6 - Tab
