Removing and installing seat heating element (glued)

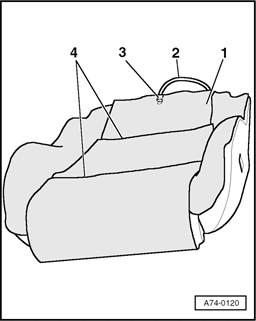

Fig 1: Seat Heating Element (Glued) Remove/Install Components

GW00016855

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove seat → Seat, removing and installing .
Remove seat cover → Seat cover and padding, removing and installing .
Cut electrical wire - 2 - off old heating element - 1 -.
Glue new heating element onto old heating element (avoid creases).

Insert heating element into fold at locations marked - 4 -.
Insert wire - 2 - into slot - 3 - provided.
