Seat side trim, removing

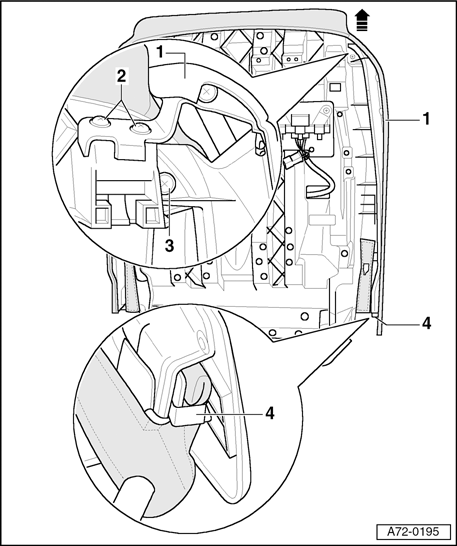

Fig 1: Seat Side Trim Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Seat side trim

• Remove seat → Seat, removing and installing .
• Remove spring trim → Spring trim, removing .
• Remove seat height adjustment handle → Seat height adjustment handle, removing .
• Remove clip - 4  -.

• Remove screws - 2  - (5x).
• Remove screw - 3  - (1x).
• Remove seat side trim - 1  - in direction of arrow.

2 - Screws (2x)

• Tightening torque 2.5 Nm

3 - Screw (1x)

• Tightening torque 1.5 Nm

4 - Clip
