Wind deflector, removing and installing

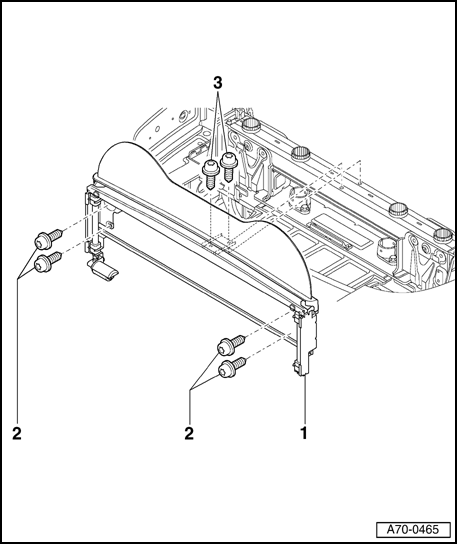

Fig 1: Wind Deflector Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Wind deflector

• Remove front trim for convertible top storage compartment → Front trim for convertible top storage compartment .
• Remove rear panel center trim → Center rear panel trim, removing and installing .
• Remove bolts - 3  - (2x) at roll bar crossmember.
• Adjust panel fully down.

• Open left assembly cover.
• Disconnect harness connector.
• Raise panel by hand → Wind deflector panel, moving by hand .
• Remove bolts - 2  - (4x).

• Lift cover up slightly.
• Lift lining of convertible top storage compartment up slightly on left side.
• Pull wind deflector rearward first and then upward and out.

2 - Bolts (4x)

• Tightening torque 23 Nm

3 - Bolts (2x)

• Tightening torque 23 Nm
