Front trim for convertible top storage compartment

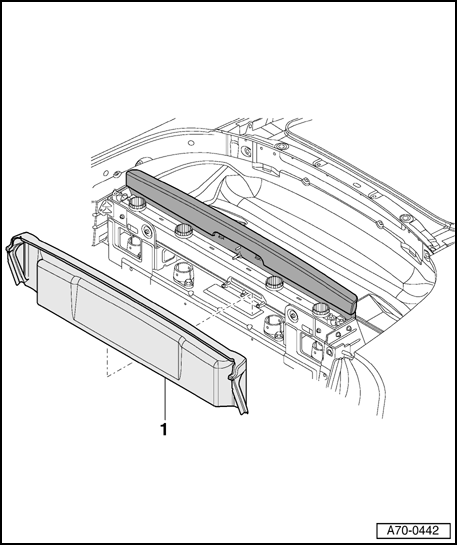

Fig 1: Front Trim For Convertible Top Storage Compartment

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Front trim for convertible top storage compartment

• Removing

• Close convertible top.
• Remove convertible top storage compartment trim - 1  - at bottom from trim for wind deflector and from wind deflector.
• Pull convertible top storage compartment trim - 1  - out from below convertible top storage compartment trim.
• Open convertible top.

• Remove trim - 1  -.

• Installing

• Open convertible top.
• Place trim - 1  - in convertible top storage compartment.
• Close convertible top.
• Slide trim - 1  - behind metal sheet at side.

• Remainder of installation is the reverse of removal
