Center rear panel trim, removing and installing

• Move both seats forwards and fold backrest forward.
• Look through speaker trim to establish whether center speaker is installed.

Vehicles with center speaker

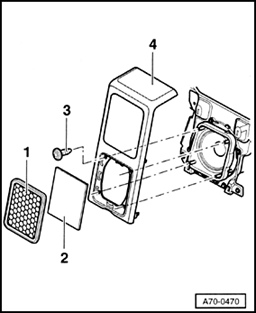

Fig 1: Center Speaker Trim And Bolts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Starting at side, use screwdriver to carefully release center speaker trim - 1  -.
• Remove bolts - 3  - (4x).
• Continue for vehicles without center speaker.

Vehicles without center speaker

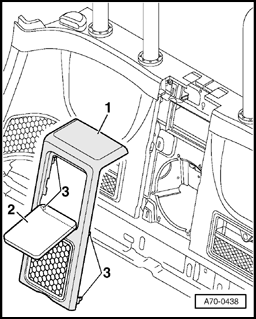

Fig 2: Speaker Trim And Panel

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Open cover - 2  -.
• Reach through cover opening - 2  - into trim - 1  - and disengage by pulling trim - 1  - forwards to release.

3 - Clip (6x)

2 - Cover (vehicles without center speaker only)

• Remove cover - 2  - if center speaker is to be retrofitted.

4 - Center rear panel trim
