Wind deflector trim, removing and installing

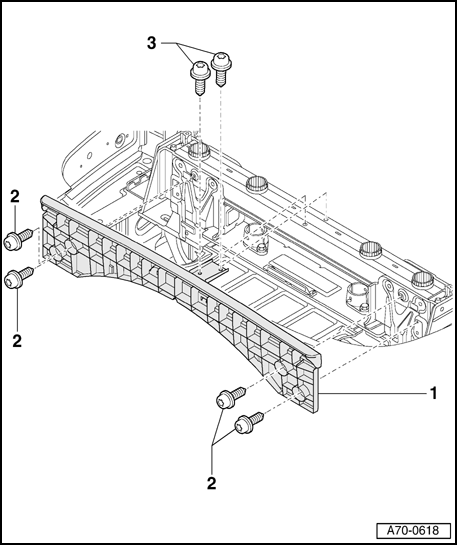

Fig 1: Wind Deflector Trim Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Wind deflector trim

• Remove rear panel center trim → Center rear panel trim, removing and installing .
• Remove bolts - 3  - (2x) at roll bar cross member.
• Remove front convertible top compartment trim → Front trim for convertible top storage compartment .
• Remove bolts - 2  - (4x).

• Disengage wind deflector trim - 1  - in center.
• Remove wind deflector trim - 1  - toward upper rear.

2 - Bolts (4x)

• Tightening torque 23 Nm

3 - Bolts (2x)

• Tightening torque 23 Nm
