Luggage compartment front trim

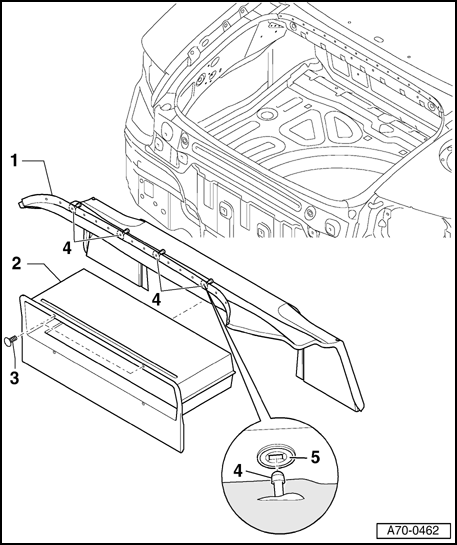

Fig 1: Luggage Compartment Front Trim

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Luggage compartment front trim

• Remove luggage compartment floor lining → Luggage compartment floor lining, removing .
• Remove luggage compartment side trim → Luggage compartment side trim .
• Remove clips - 3  - (2x).
• Pry storage compartment - 2  - upward from bottom and simultaneously pull storage compartment - 2  - toward rear.

• Remove storage compartment - 2  -.
• Pull upper trim - 1  - out from below seal.
• Pull upper trim - 1  - out of mounts - 5  - at clips - 4  - (4x).
• Remove old mount - 5  - from chassis for new trim - 1  -.

• After assembling trim, make sure seal is properly installed

2 - Storage compartment

3 - Clip

4 - Clips

5 - Mount
