Luggage compartment side trim

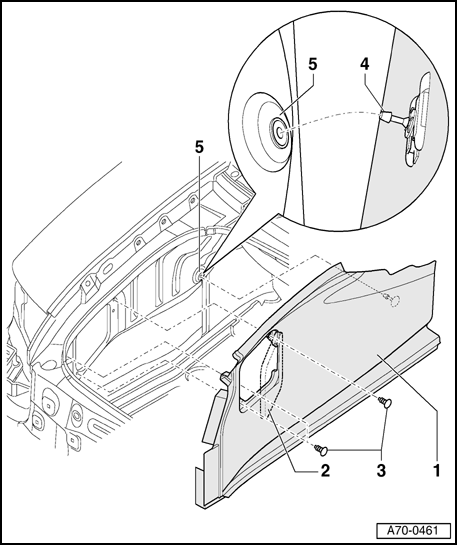

Fig 1: Luggage Compartment Side Trim

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Luggage compartment trim

• Remove luggage compartment floor lining → Luggage compartment floor lining, removing .
• Remove rear cross panel trim → Rear cross panel trim, removing and installing .
• Open cover - 2  -.
• Remove clips - 3  - (3x).

• By pulling trim - 1  - inward, the clip - 4  - can be removed from mount - 5  -.
• Remove trim - 1  - upward over the rear lid lock.
• Remove old mount - 5  - from chassis for new trim - 1  -

2 - Cover

3 - Clips

4 - Clips

5 - Mount
