Luggage compartment floor lining, removing

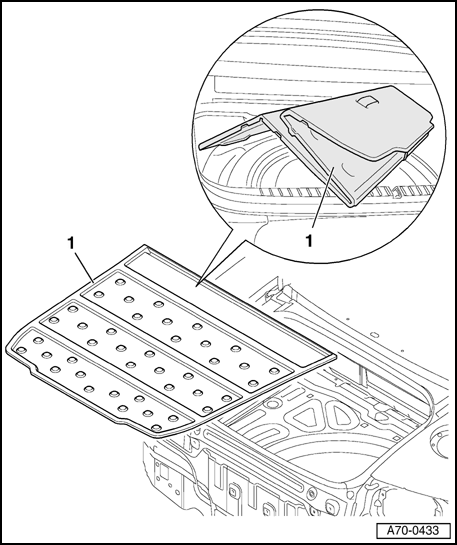

Fig 1: Luggage Compartment Floor Lining Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Luggage compartment floor lining

• Disengage luggage compartment floor lining - 1  - at Velcro on front.
• Fold luggage compartment floor lining - 1  - as shown in magnified area.
• Rotate trim - 1  - and remove it from the luggage compartment.
