Seat belt anchorage points, overview

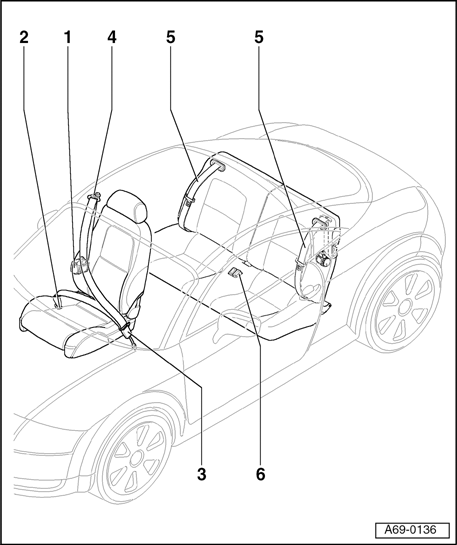

Fig 1: Seat Belt Anchorage Points Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Three-point seat belt with belt tensioner

• Removing → Three-point seat belt with belt tensioner, removing and installing

2 - Outer floor panel anchorage point

• Removing → Outer floor panel anchorage point

3 - Buckle anchorage point

• Removing → Belt buckle anchorage point

4 - Anchorage point for guide fitting → Belt guide fitting anchorage point

5 - Three-point seat belt, rear left and right

• Removing → Rear three-point seat belt, removing and installing

6 - Center floor panel anchorage point

• Removing → Center anchorage points on floor panel
