Three-point seat belt with belt tensioner, removing and installing

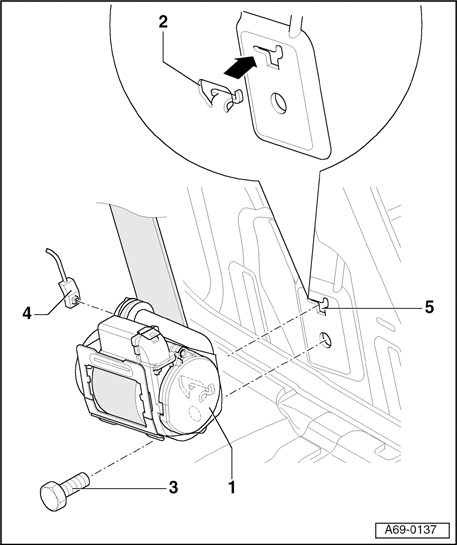

Fig 1: Three-Point Seat Belt With Belt Tensioner Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Belt tensioner

• Removing three-point seat belt

• Disconnect battery.
• Remove rear seat bench → Rear seat bench, removing and installing .
• Remove appropriate rear seat backrest → Rear seat backrest, removing and installing .
• Unbolt anchorage point on outer floor panel → Outer floor panel anchorage point .

• Remove appropriate side trim → Rear side trim, removing and installing .
• Remove B-pillar brace → B-pillar brace, removing .
• Unbolt anchorage point for guide fitting → Belt guide fitting anchorage point .
• Disconnect connector - 4  - at belt tensioner.

• Remove screw - 3  - (1x).
• Remove belt tensioner - 1  - with locating piece - 2  - from mounting - 5  -.

• Installing
• After installing passengers side three-point seat belt, check belt function for child seat → Seat belt restraint function for holding additional child seats, checking (not for drivers seat belt) .

2 - Locating piece

3 - Screw (1x)

• Tightening torque 55 Nm

4 - Belt tensioner connector

5 - Mounting
