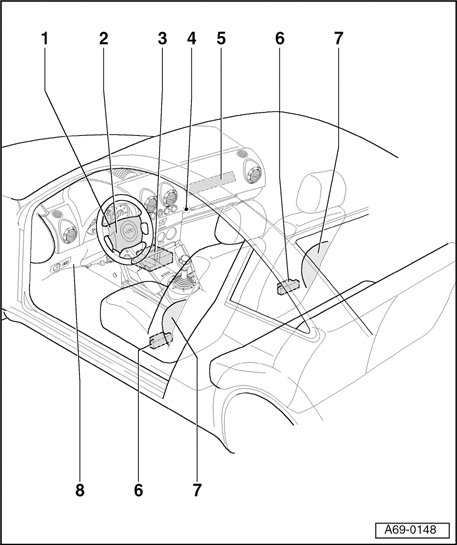

Component locations, overview

1 - Drivers side airbag unit

• Removing → Drivers side airbag unit, removing and installing

2 - Removing and installing coil connector with slip ring

• Removing → Coil connector with slip ring, removing and installing

3 - Airbag control module

• Removing → Airbag Control Module J234 , removing and installing

4 - Deactivation switch for passenger side airbag

5 - Passenger side airbag unit

• Removing → Passenger side airbag, removing and installing
• Blocking and activation (adaptation)

6 - Lateral acceleration sensor

• Removing and installing → Lateral acceleration sensor, removing and installing

7 - Side airbag

• Removing and installing → Side airbag, removing and installing

8 - Data Link Connector (DLC)
