Rear section of center console, removing and installing

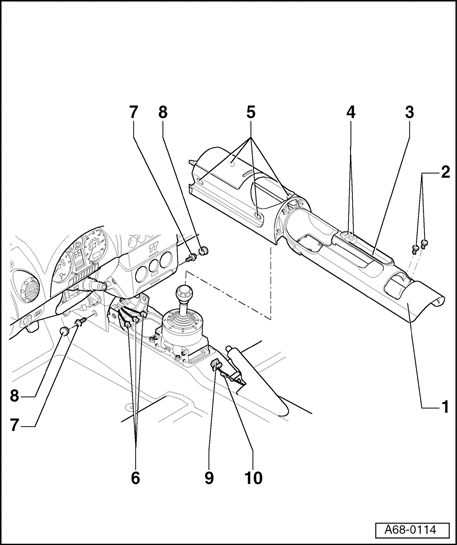

1 - Rear section of center console

• Removing
• Pull parking brake lever up as far as it will go.
• Remove lid from center console → Lid at rear section of center console, removing and installing .
• Remove screws - 2  - (2x).

• Remove grab handles on center console → Center console grab handles, removing .
• For easier removal, pry out screw caps - 8  - to facilitate removal.
• Remove screws - 7  - (2x).
• Pull apart footwell vent trim.

• Pull apart rear section of center console - 1  - at mounts - 5  -.
• Lift rear section of center console - 1  - (at rear seat) over rear seat.
• Pull rear section of center console - 1  - out from under footwell vent trim to the rear.
• Lift out rear section of center console - 1  - forward over parking brake lever.

• Turn rear section of center console - 1  - and disconnect connectors - 6  - , - 9  - and - 10  -.
• Installing
• Slide rear section of center console - 1  - under footwell vent trim.

2 - Screws (2x)

• Tightening torque 3.5 Nm

3 - Tray

4 - Central locking switch

5 - Mounts (4x)

6 - Connectors for switches in center console (3x)

7 - Screws (2x)

• Tightening torque 3.5 Nm

8 - Screw caps (2x)

9 - Connector for central locking switch - 4  -

10 - Connector for "Airbag OFF" light
