Lid at rear section of center console, removing and installing

• Lid underneath parking brake lever

Fig 1: Prying Up Lid Located Under Parking Brake Lever At Front And Pulling Lid Located Under Parking Brake Lever Out Of Center Console

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Pry up lid located under parking brake lever - 3  - at front.
• Following direction of arrow, pull lid located under parking brake lever - 3  - out of center console - 1  -.

• Rear lid

• Remove rear lid - 2  - vertically.

• Rear cover with portable phone connector

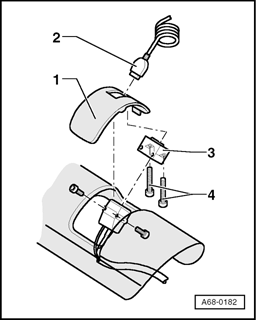

Fig 2: Lid At Rear Section Of Center Console Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Remove rear lid - 1  - upward.
• Cover lid - 1  - can be moved downward to remove center console.
• Remove screws - 5  - (2x). Tightening torque 0.8 Nm
• Remove connector - 6  - from bracket - 3  -.

2 - Connector for handset holder.

4 - Bracket screws , tightening torque 0.8 Nm
