Adaptation after replacing instrument cluster: Procedure

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Insert old (authorized) ignition key into ignition lock and switch on ignition.

Display on VAS 5051:

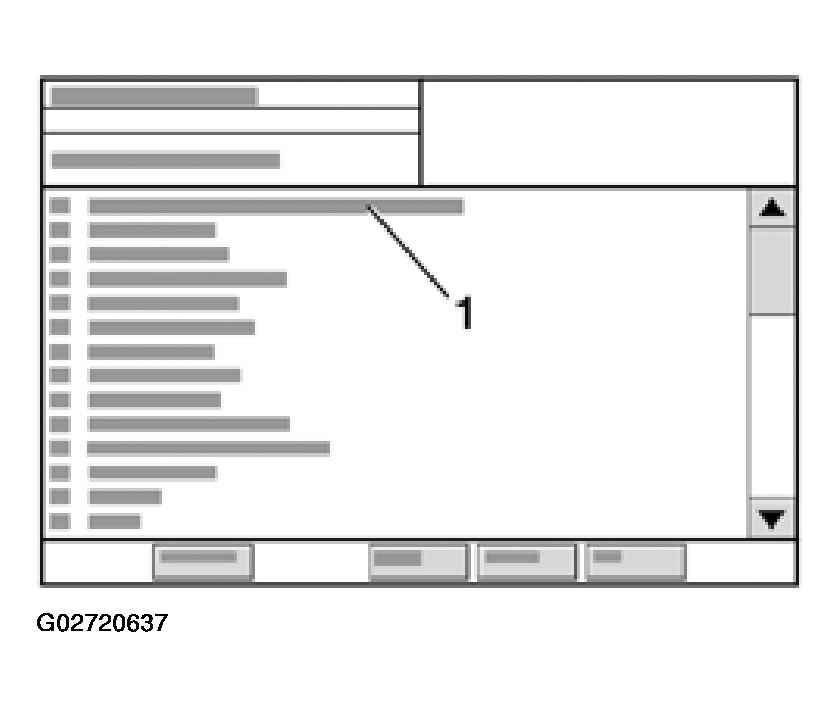

Fig 1: Display On VAS 5051 - Vehicle Key Adaptation After Replacing Instrument Cluster (1 Of 12)

Courtesy of AUDI OF AMERICA, INC.

Press selection -1- of vehicle system "01 - Engine electronics".
Wait until the next indication appears on display.

Display on VAS 5051:

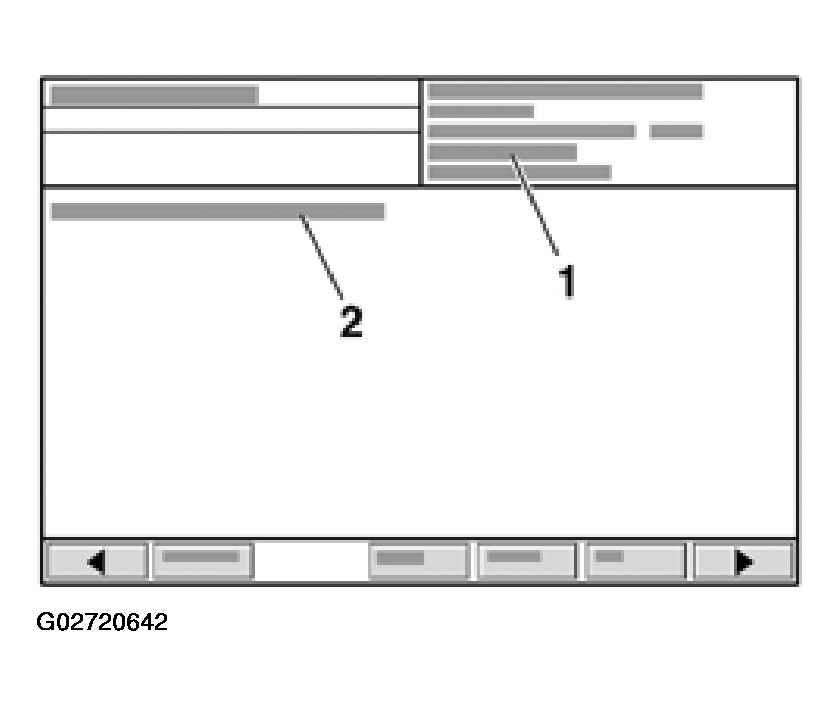

Fig 2: Display On VAS 5051 - Vehicle Key Adaptation After Replacing Instrument Cluster (2 Of 12)

Courtesy of AUDI OF AMERICA, INC.

Control module identification of Engine Control Module (ECM).
Control module identification of immobilizer

Fig 3: Immobilizer Control Module Identification - Example

Courtesy of AUDI OF AMERICA, INC.

Using the 14 digit identification number of the ECM, determine the 7-digit PIN. See Determining the secret number (7-digit PIN) .

Click on --> button

Display on VAS 5051:

Fig 4: Display On VAS 5051 - Vehicle Key Adaptation After Replacing Instrument Cluster (3 Of 12)

Courtesy of AUDI OF AMERICA, INC.

Select diagnostic function "06 - End Output" in selection -1-.

Display on VAS 5051:

Fig 5: Display On VAS 5051 - Vehicle Key Adaptation After Replacing Instrument Cluster (4 Of 12)

Courtesy of AUDI OF AMERICA, INC.

Press selection -1- of vehicle system "17-instrument cluster"
Wait until the next indication appears on display.

Display on VAS 5051:

Fig 6: Display On VAS 5051 - Vehicle Key Adaptation After Replacing Instrument Cluster (5 Of 12)

Courtesy of AUDI OF AMERICA, INC.

Control module identification of the instrument cluster
Control module identification of immobilizer

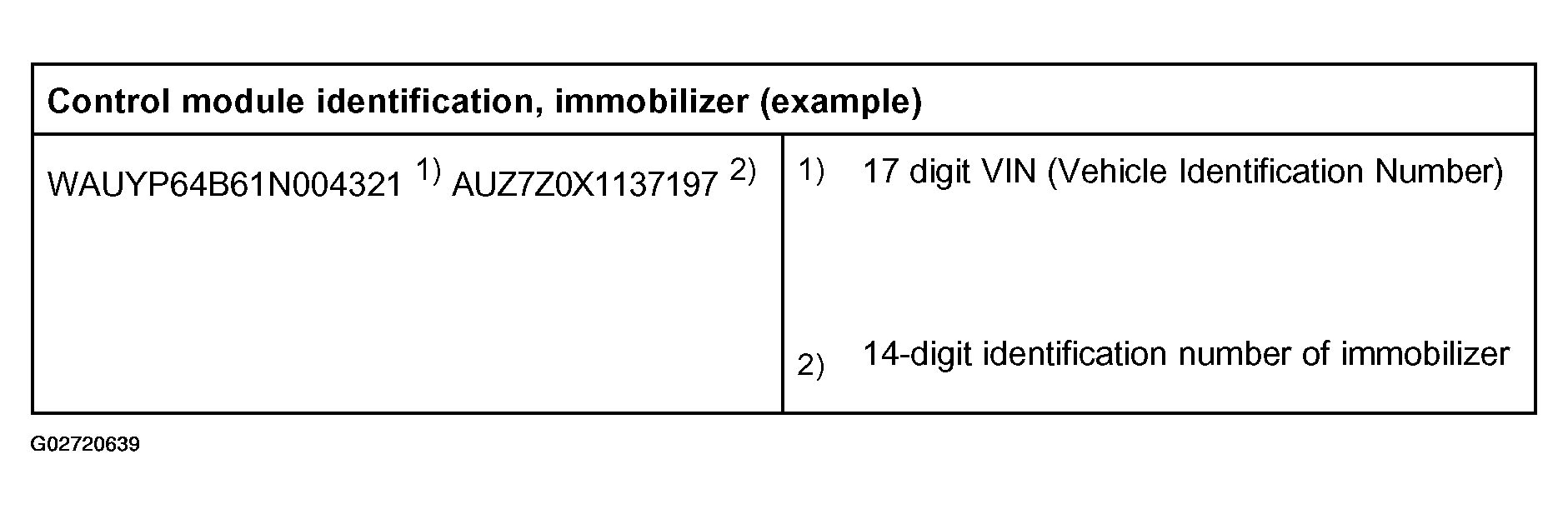

CONTROL MODULE IDENTIFICATION, IMMOBILIZER - EXAMPLE

Control module identification, immobilizer (example)
XXXXXXXXXXXXXXXX AUZ7Z0X1137197	14-digit identification number of immobilizer

Replacement part instrument clusters already have a 14 digit identification number (this is necessary if instrument cluster and Engine Control Module (ECM) are being replaced simultaneously). During adaptation of the instrument cluster to the ECM, this number is transferred to the ECM.

NOTE: If a used or re-manufactured instrument cluster is being installed, it must first be switched free via a login procedure. See LOGIN PROCEDURE, INSTRUMENT CLUSTER . The 7-digit PIN for this must be determined via the 14-digit identification number of the used instrument cluster. Continue as follows after successful login procedure:

Click on --> button

Display on VAS 5051:

Fig 7: Display On VAS 5051 - Vehicle Key Adaptation After Replacing Instrument Cluster (6 Of 12)

Courtesy of AUDI OF AMERICA, INC.

In selection -1-, select the diagnostic function "10 - Adaptation".

Display on VAS 5051:

Fig 8: Display On VAS 5051 - Vehicle Key Adaptation After Replacing Instrument Cluster (7 Of 12)

Courtesy of AUDI OF AMERICA, INC.

Enter channel number Max. input value = 99

Select function "50" in button field -2- for "Adaptation channel 50" and press Q button to confirm input.

Display on VAS 5051:

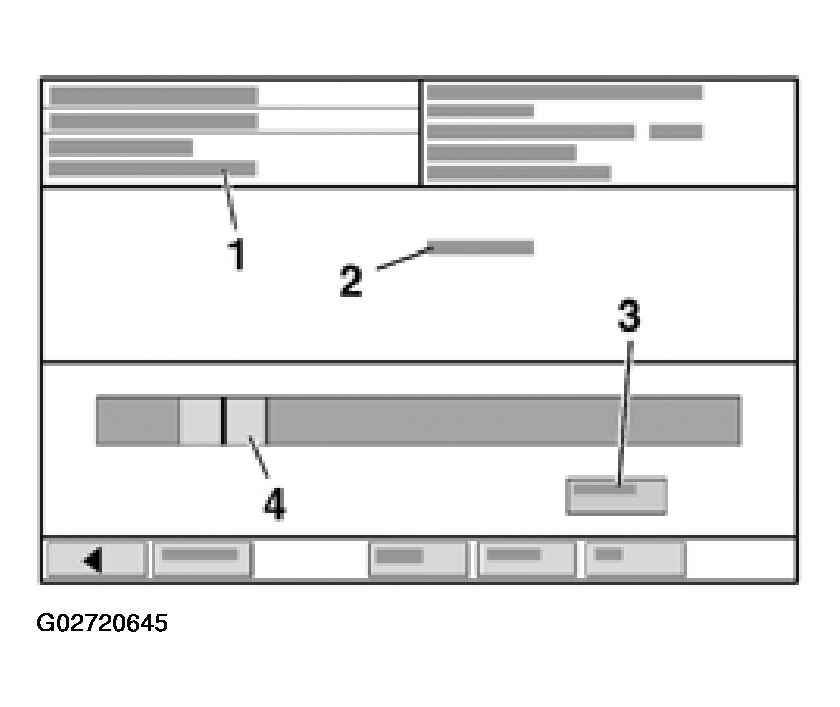

Fig 9: Display On VAS 5051 - Vehicle Key Adaptation After Replacing Instrument Cluster (8 Of 12)

Courtesy of AUDI OF AMERICA, INC.

Channel 50 read and test
PIN ?
Keypad - only direct input via the keypad is possible
Sliding bar is positioned on 32000

Press "Keypad" button -3-.

Display on VAS 5051:

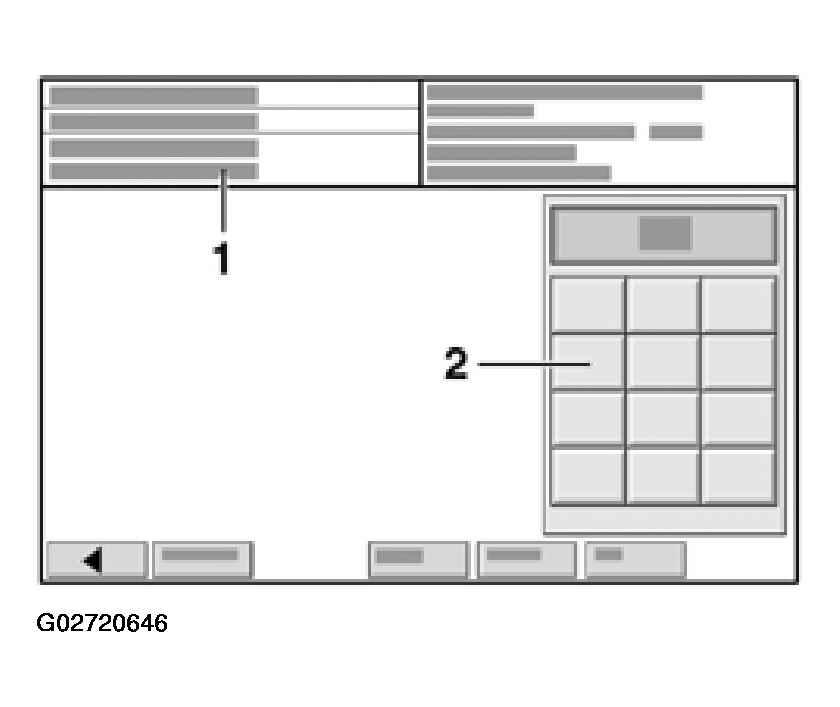

Fig 10: Display On VAS 5051 - Vehicle Key Adaptation After Replacing Instrument Cluster (9 Of 12)

Courtesy of AUDI OF AMERICA, INC.

Enter adaptation value Input value: 0 to 65535

Enter previously determined 7-digit PIN (of Engine Control Module (ECM)) in button field -2-.
Press -Q- button to confirm input.

NOTE: If the 7-digit PIN is entered incorrectly three times, tester display will indicate "locked 10". This locking time can also be indicated in measuring value block 024 (display field 2). Adaptation is now locked for 10 minutes. This time is doubled after every third consecutive incorrect attempt, up to a maximum of 255 minutes.

Wait until the next indication appears on display.

NOTE: If a malfunction occurs during adaptation, the following DTCs can be displayed:

"Interference": CAN-bus not available or engine speed recognized (adaptation only with the engine standing still).

NOTE:

"Adaptation not OK": Engine Control Module (ECM) cannot give out data (17-digit VIN, 14-digit identification number), since the control module is still new (factory condition) or the data is faulty.
"System not OK": Engine Control Module (ECM) does not give out data, since it was previously used with a control module (instrument cluster) in another performance class (tuning-protection)
"Key not OK": Data cannot be given out or accepted, because no key or no matching key is available.

If no malfunction is present, this display appears:

Display on VAS 5051:

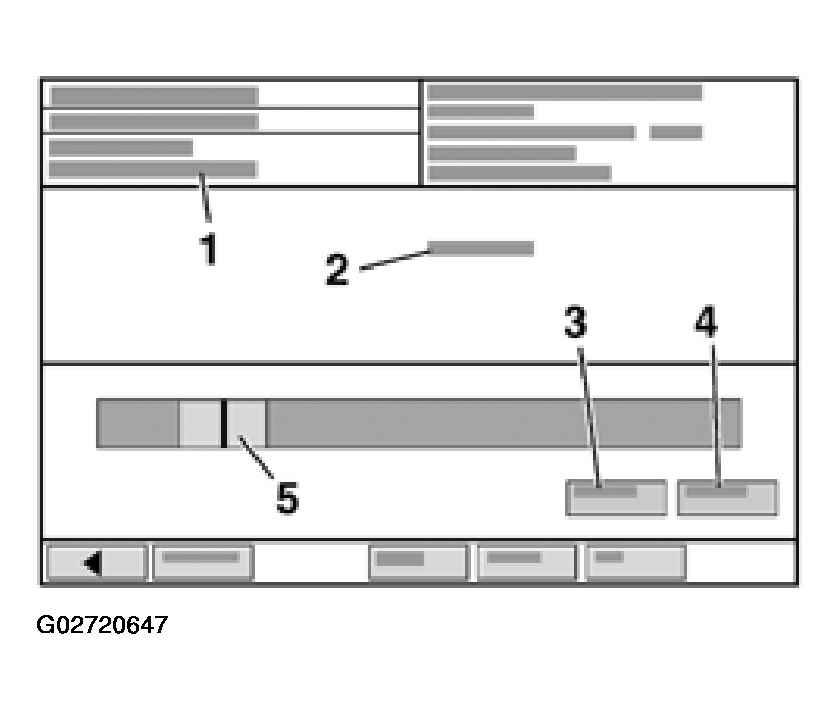

Fig 11: Display On VAS 5051 - Vehicle Key Adaptation After Replacing Instrument Cluster (10 Of 12)

Courtesy of AUDI OF AMERICA, INC.

1 - Channel 50 read and test
2 - 17-digit VIN (Vehicle Identification Number)
5 - Sliding bar is positioned on 32000

In addition, the warning lamp in instrument cluster lights up.

Press "Save" button -4-.

Display on VAS 5051:

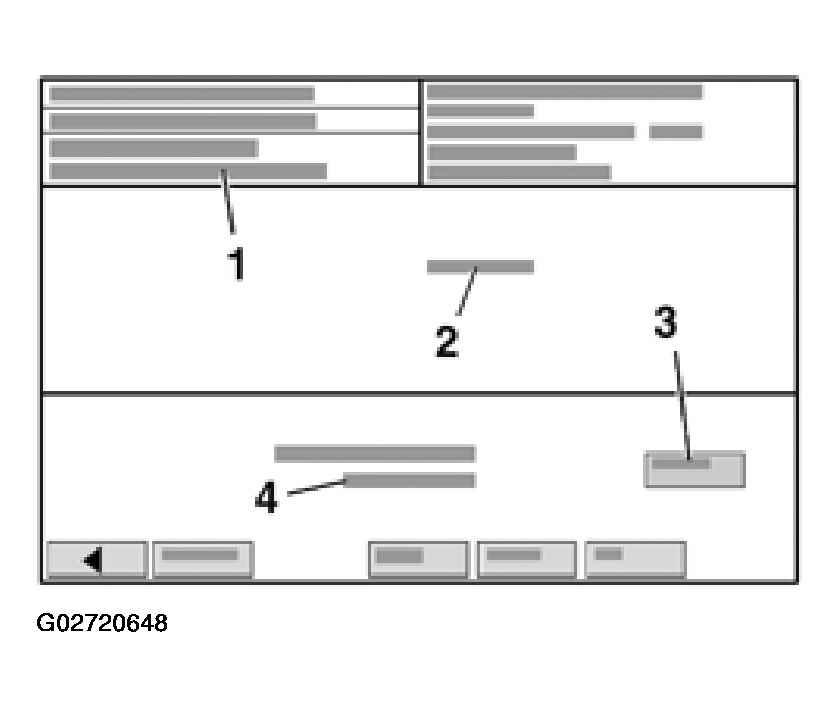

Fig 12: Display On VAS 5051 - Vehicle Key Adaptation After Replacing Instrument Cluster (11 Of 12)

Courtesy of AUDI OF AMERICA, INC.

1 - Channel 50 save
2 - 17-digit VIN (Vehicle Identification Number)
4 - original value 32000 new value 32000

Confirm new adaptation value by pressing the "take over" button -3-.

Display on VAS 5051:

Fig 13: Display On VAS 5051 - Vehicle Key Adaptation After Replacing Instrument Cluster (12 Of 12)

Courtesy of AUDI OF AMERICA, INC.

Channel 50 Value 32000 stored

The warning light will go out approx. 2 seconds after successful adaptation and a short confirmation signal will be given (0.5 seconds light off, 0.5 seconds light on, light off).

End function "10 - Adaptation" by pressing <-- button.

Adaptation of the immobilizer to the Engine Control Module (ECM) has been completed.

Perform adaptation of vehicle keys. See ADAPTATION OF VEHICLE KEYS .
