Headlights, adjusting

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

Current specifications and procedures for headlight adjustment:

See HEADLIGHTS, ADJUSTING .

NOTE: On vehicles with HID headlights, check DTC memory, erase it and perform basic setting before every manual adjustment via adjustment screws.

See CHECK DTC MEMORY (FUNCTION 02) , ERASE DTC MEMORY (FUNCTION 05) and BASIC SETTING (FUNCTION 04) .

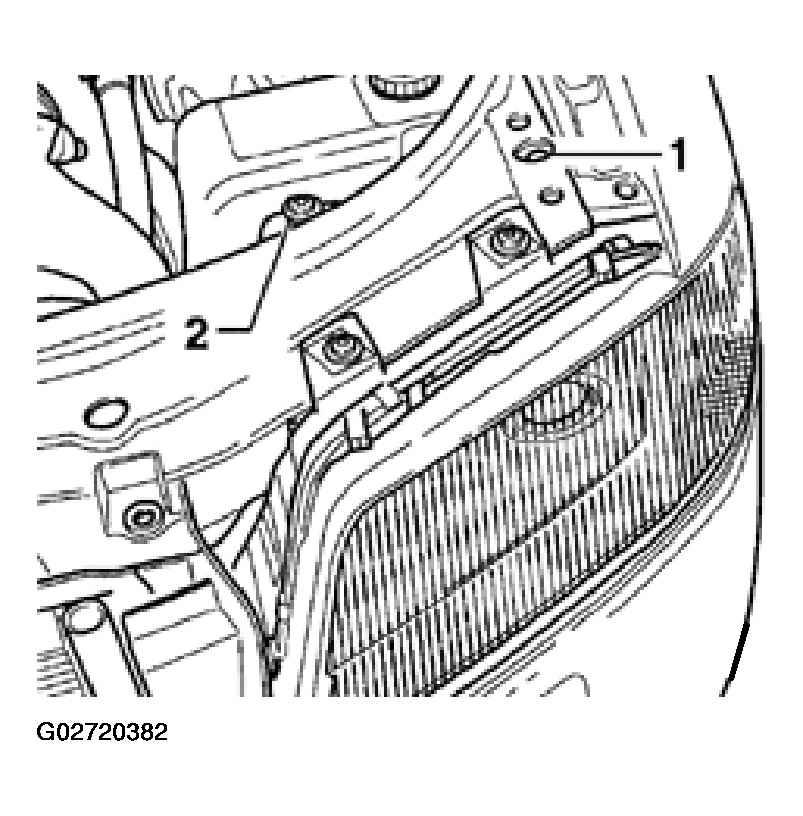

Adjustment screws at left headlight.

Arrangement at right headlight is mirror image of left headlight.

Adjustment screw for vertical adjustment
Adjustment screw for height-/lateral adjustment

Fig 1: Locating Headlight Adjustment Screws

Courtesy of AUDI OF AMERICA, INC.

For height adjustment, turn adjustment screws -1- and -2- with the same number of rotations.
Only use adjustment screw -2- for lateral adjustment.
