Component locations, overview

The following list pertains to Fig 1.

1. Glove box
   • Removing, see GLOVE BOX, REMOVING AND INSTALLING
2. Driver's storage compartment

   Removing, see DRIVER'S STORAGE COMPARTMENT, REMOVING

3. Steering column switch

   Removing, see REMOVING STEERING COLUMN SWITCH .

4. Removing instrument cluster

   See INSTRUMENTS - UP TO 2000 or INSTRUMENTS - 2001 AND UP .

5. Front section of center console

   Removing , see CENTER CONSOLE (FRONT SECTION), REMOVING AND INSTALLING

6. Center section of instrument panel

   Removing, see CENTER SECTION OF INSTRUMENT PANEL (VEHICLES WITH "CHORUS" AND "CONCERT" RADIOS), REMOVING

7. Reinforcing bracket for center section of instrument panel

   Removing, see REMOVING REINFORCING BRACKET .

8. Instrument panel end trim (left)

   Removing, see REMOVING INSTRUMENT PANEL END TRIM (LEFT) .

9. Instrument panel end mounting screws (left)

   Removing, see REMOVING INSTRUMENT PANEL END TRIM (LEFT) .

10. Instrument panel end trim (right)

    Removing, see REMOVING INSTRUMENT PANEL END TRIM (RIGHT) .

11. Instrument panel end mounting screws (right)

    Removing, see REMOVING INSTRUMENT PANEL END TRIM (RIGHT) .

12. Instrument panel mounting screws (driver's side)

    Removing, see REMOVING INSTRUMENT PANEL MOUNTING SCREWS-DRIVER'S SIDE .

13. Passenger side airbag

    Detaching, see REMOVING INSTRUMENT PANEL MOUNTING SCREWS-DRIVER'S SIDE .

14. Photosensor

    Removing, see REMOVING PHOTOSENSOR .

15. Connectors for side vent lighting and temperature sensor

    Detaching, see DISCONNECTING CONNECTORS FOR SIDE VENT LIGHTING AND TEMPERATURE SENSOR .

16. Connector for center vent lighting

    Detaching, see DISCONNECTING CONNECTORS FOR SIDE VENT LIGHTING AND TEMPERATURE SENSOR .

17. Trim strip for instrument panel

    Removing, see TRIM STRIP FOR INSTRUMENT PANEL, REMOVING .

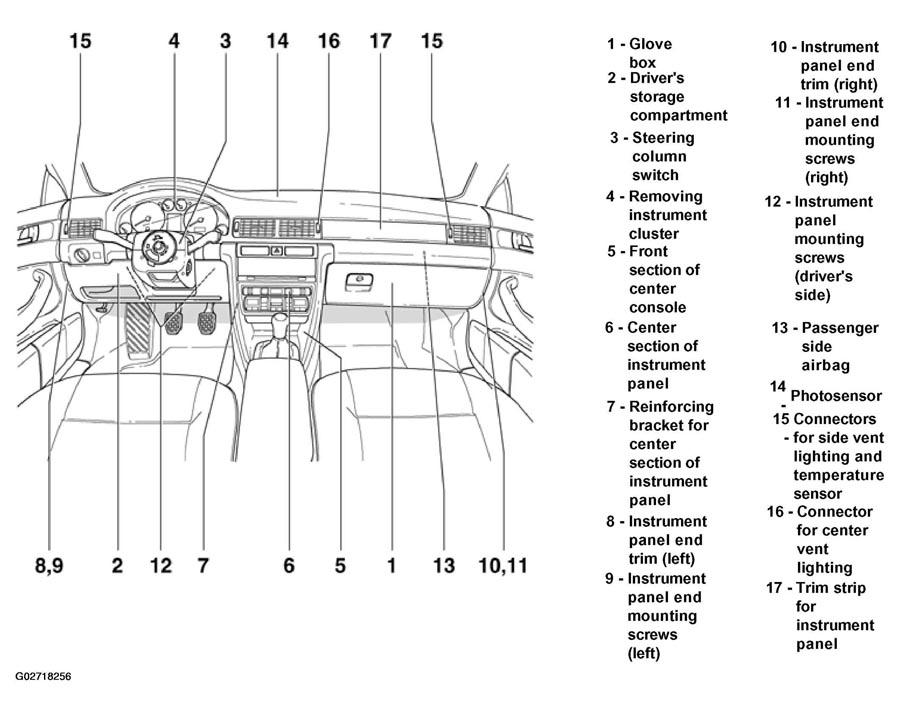

Fig 1: Locating Instrument Panel Components
Courtesy of AUDI OF AMERICA, INC.
