Removing photosensor
Carefully pry off cover -A-.
Remove screw -B-.

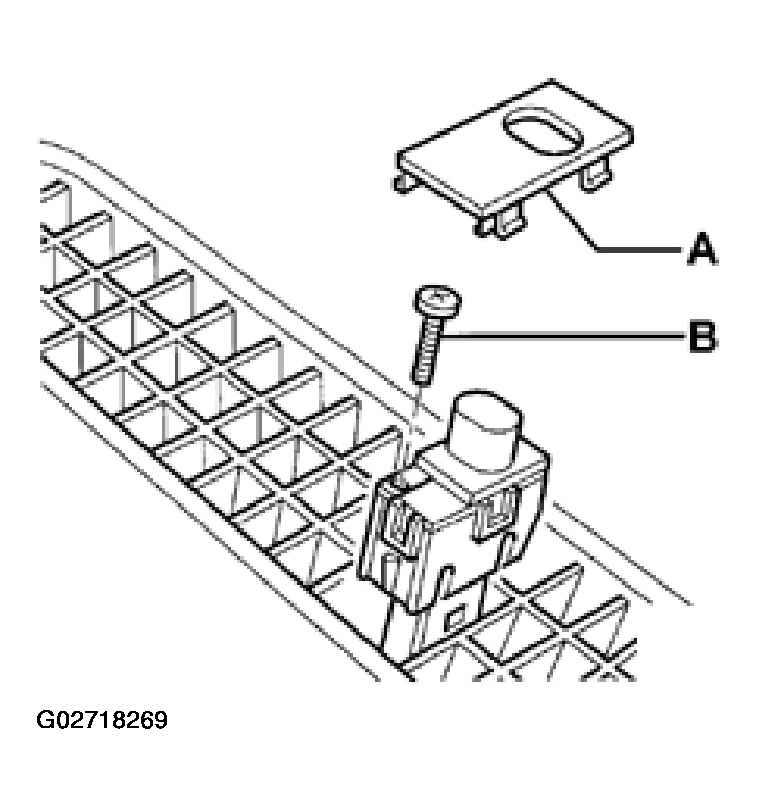

Fig 1: Removing Photosensor
Courtesy of AUDI OF AMERICA, INC.
Lift photosensor and secure harness connector with cord or cable tie.
Disconnect harness connector.
