Removing reinforcing bracket

Remove screws -1- (5x).
Tightening torque: 4 Nm (35 in lb)
Remove reinforcing bracket -2-.

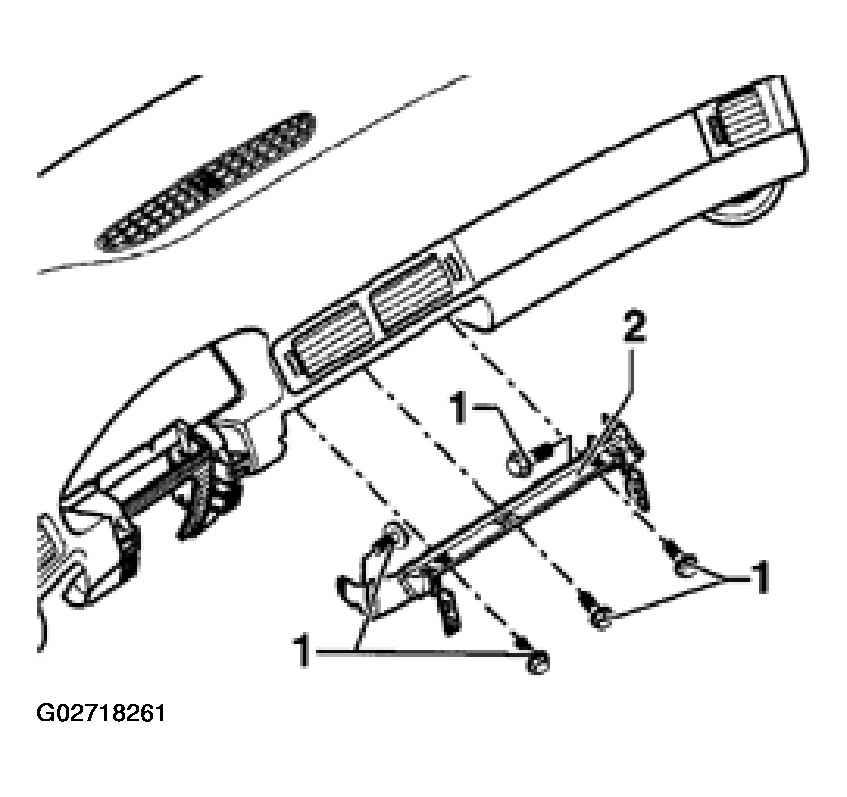

Fig 1: Removing Reinforcing Bracket

G02718261

Courtesy of AUDI OF AMERICA, INC.
