Luggage compartment side trim (split rear seat)

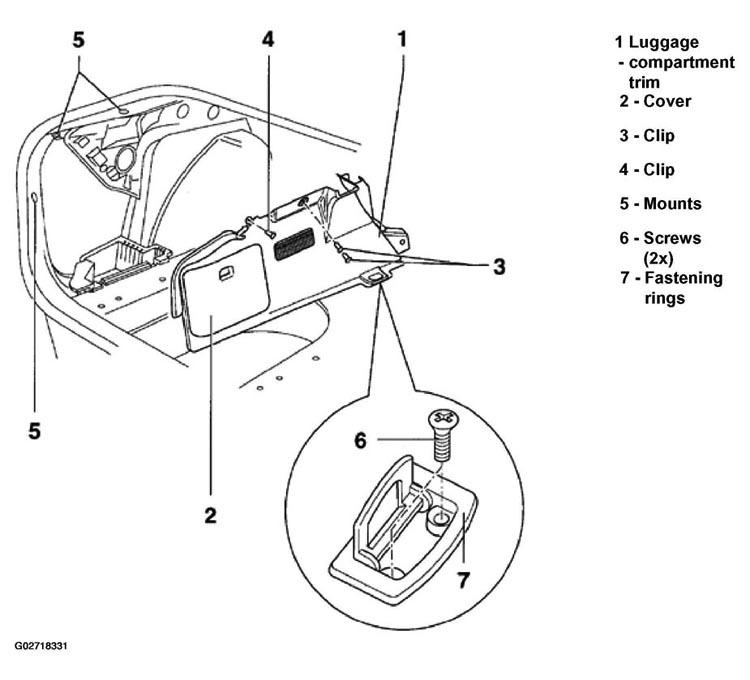

The following list pertains to Fig 1.
- Luggage compartment trim
- Remove respective backrest. See RIGHT (2/3) SECTION OF BACKREST, REMOVING AND INSTALLING .
- Remove respective side padding. See SIDE PADDING FOR REAR SEAT, REMOVING AND INSTALLING .
- Remove luggage compartment floor covering.
- Remove rear cross panel trim. See REAR CROSS PANEL TRIM, REMOVING AND INSTALLING .
- Remove screws -6- (2x) for fastening rings -7-.
- Unclip clip -3-.
- Unclip clip -4-.
- Remove cover -2-
- Unclip luggage compartment trim -1- at rear from mounts -5- (3x).
- Pull trim forward to disengage from latch pin.
- Cover
- Clip
- Clip
- Mounts
- Screws (2x)
- Tightening torque: 4.5 Nm (40 in lb)
- Fastening rings
