Disconnecting engine compartment wiring harness

• Remove engine control module

See appropriate Multiport Fuel Injection article.

• Detach connectors -1- (4x) for connecting engine compartment wiring harness to instrument panel wiring harness.

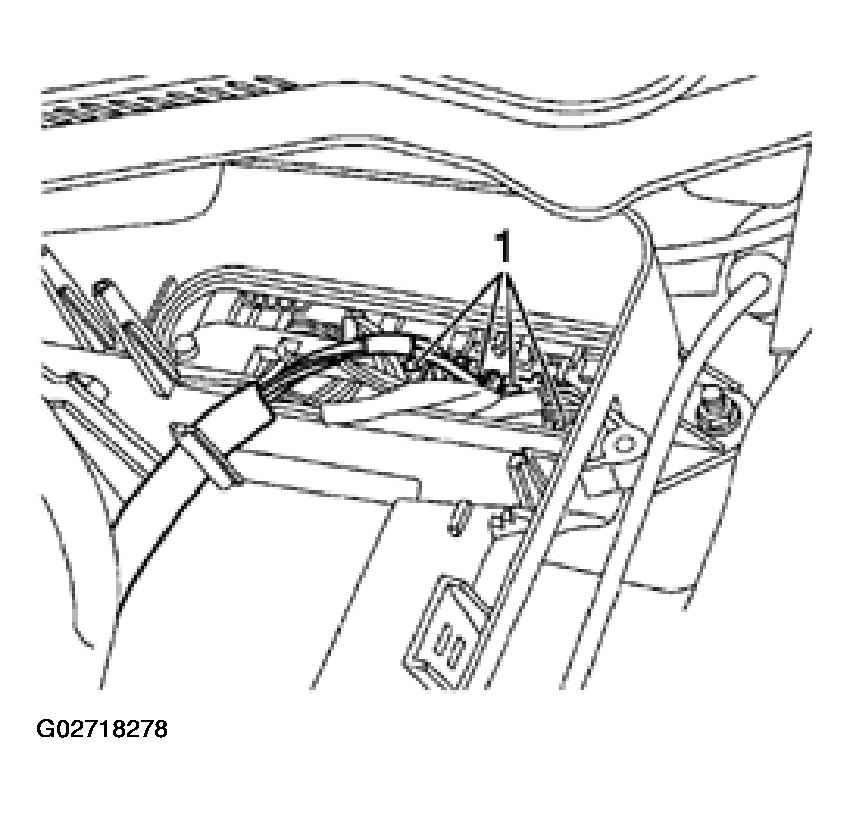

Fig 1: Detaching Engine Compartment Wiring Harness Connectors
Courtesy of AUDI OF AMERICA, INC.
