Rear cross panel trim, removing and installing

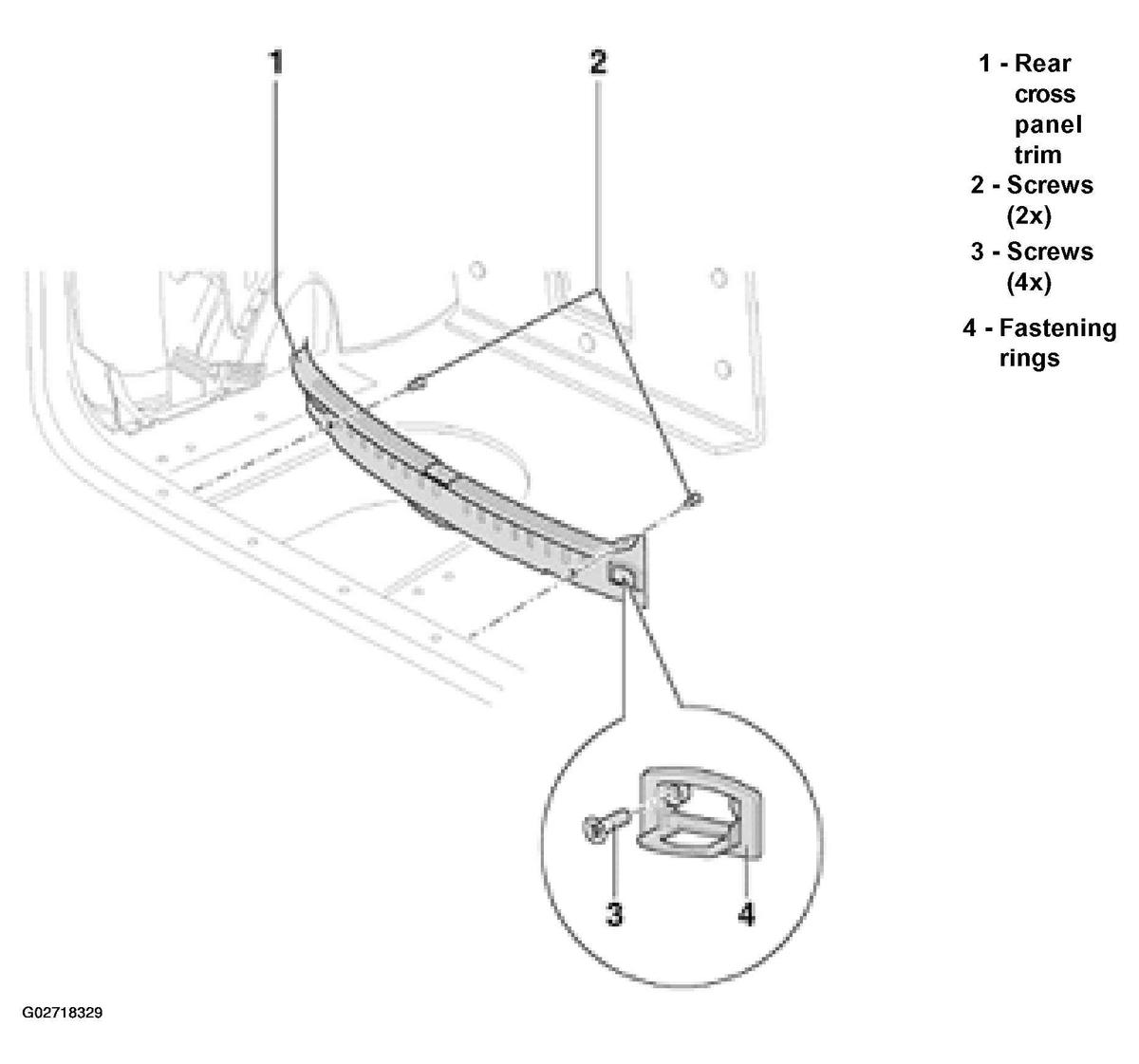

The following list pertains to Fig 1.
- Rear cross panel trim
- Remove trunk light from rear cross panel trim -1-.
- Remove screws -2- (2x).
- Remove screws -3- (4x) from fastening rings -4- on left and right.
- Unclip rear cross panel trim -1- upward.
- Guide trunk light through opening.
- After installing make sure seal is correctly seated
- Screws (2x)
- Tightening torque: 2 Nm (18 in lb)
- Screws (4x)
- Tightening torque: 4.5 Nm (40 in lb)
- Fastening rings
