Control module for parking aid -J446-, removing and installing: Removing

• Remove the left trunk liner.

See UGGAGE COMPARTMENT SIDE TRIM (FIXED REAR SEAT) , or LUGGAGE COMPARTMENT SIDE TRIM (SPLIT REAR SEAT) or FLOOR COVERING, REMOVING AND INSTALLING .

• The control module for the parking aid -2- is mounted to the bracket -1- below the trunk side cover.
• Should it become necessary to remove the bracket, loosen the three Phillips head screws -3-.

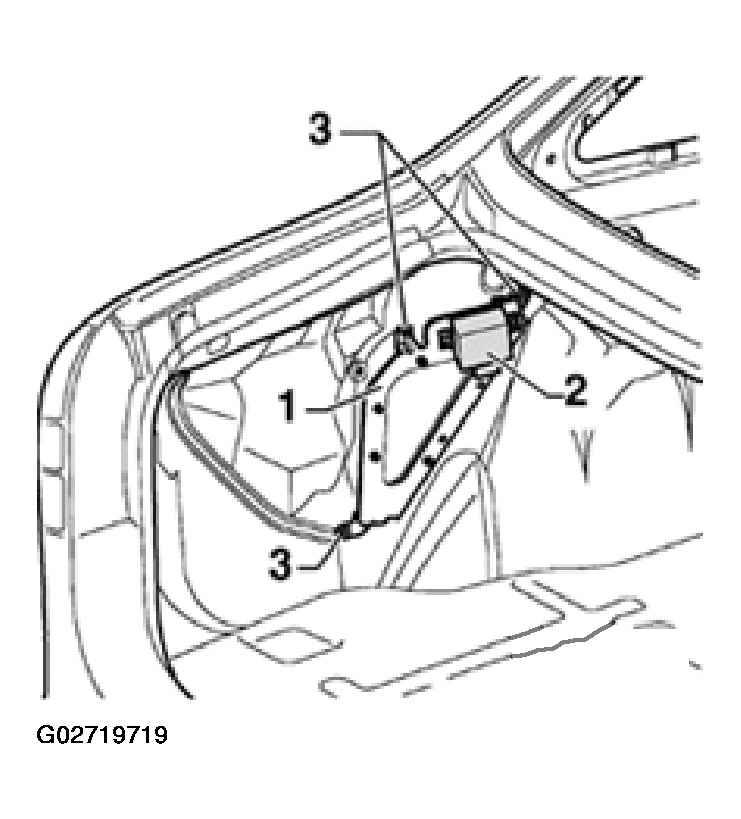

Fig 1: Locating Control Module For Parking Aid Mounted To Bracket

• Pull off harness connector.
• Remove the control module for parking aid -1- can be removed by loosening both hex nuts -2- (SW 10).

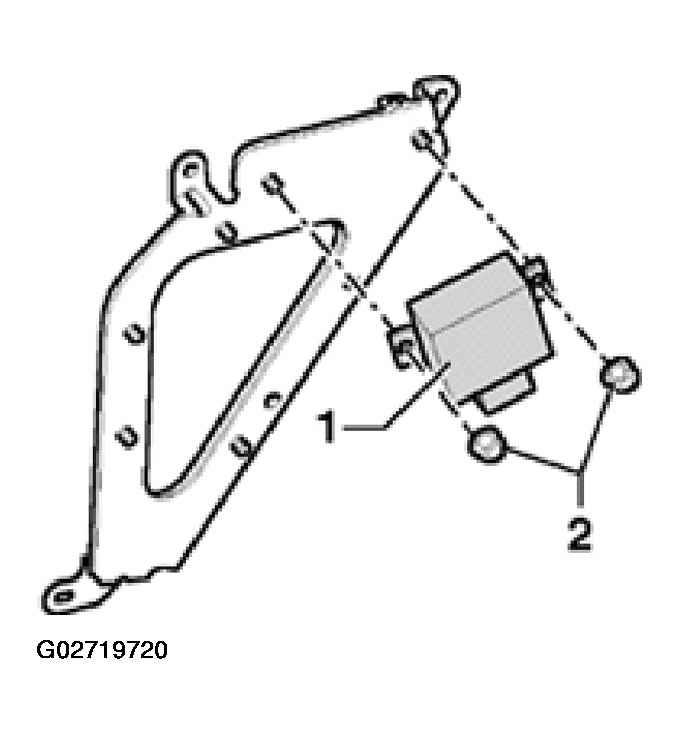

Fig 2: Removing Control Module For Parking Aid By Loosening Hex Nuts
